Operating Guide | VLT® AQUA Drive FC 202
Procedure
1. Locate the type code (T/C) on the nameplate. The nameplate is found on the exterior of the drive by the bottom grill or on the
inside cabinet door that contains the control compartment.
2. Determine the type of enclosure by obtaining the following information from the type code:
A Product group and drive series (characters 1–6).
B Voltage rating (character 8).
C Model/power rating (characters 10–12).
3. Go to table 3 and use the model number and voltage rating to find the enclosure size.
4. Obtain the following option codes from the type code.
A Low harmonic filter (character 7).
B Brake (character 15).
C Mains (character 16–17).
D Output filter (character 18).
E
Extra empty cabinet (character 19).
F Cable infeed (character 20).
G Back-channel cooling (character 22).
H Auxiliary function (characters 22–23).
I Door-mounted options (characters 28–29).
5. Using the option codes, refer to

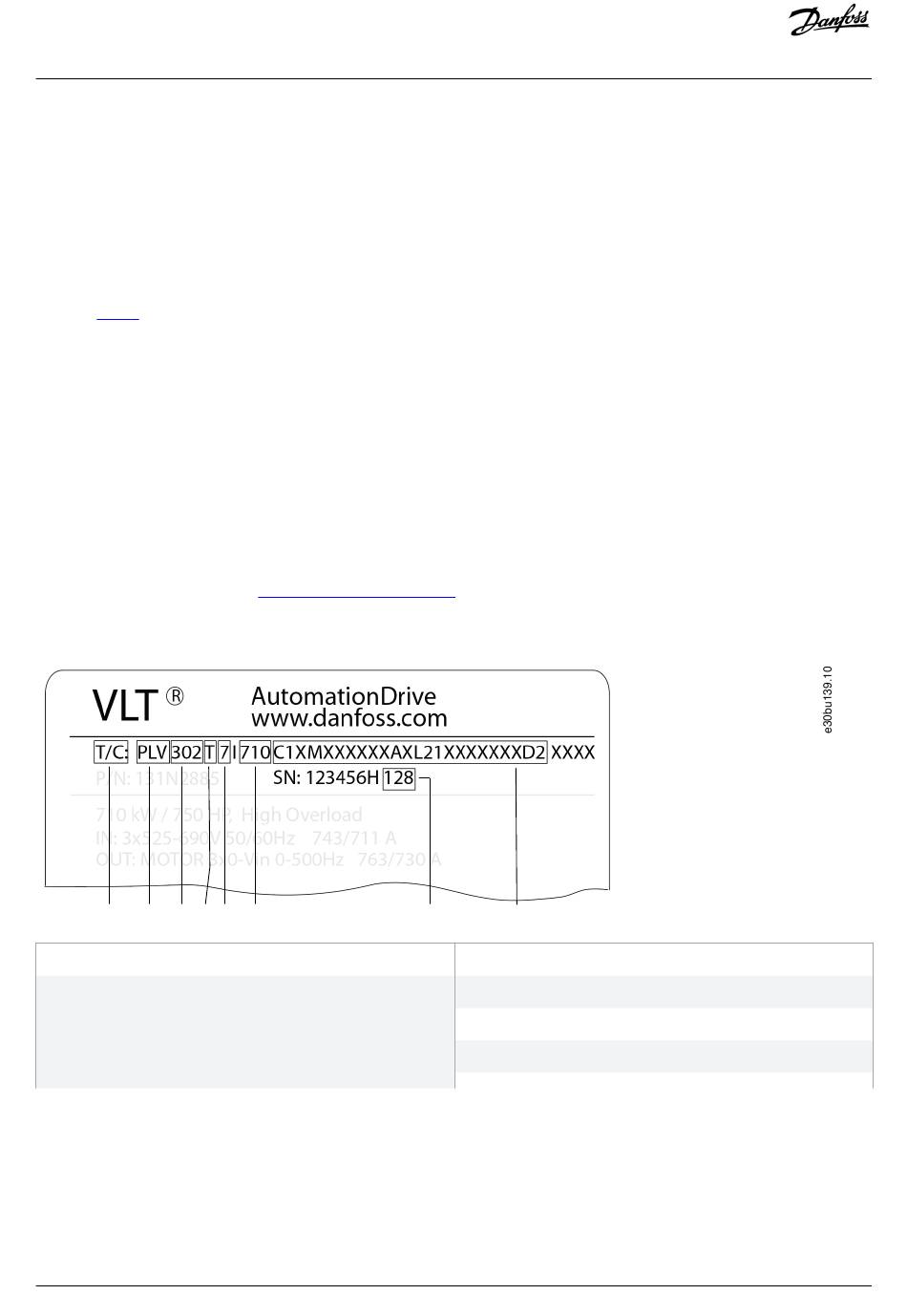

Example:
1 2 3 4 5
1 Type code.
3 Drive series
®
• 102 = VLT HVAC Drive
®
• 202 = VLT AQUA Drive
®
• 302 = VLT AutomationDrive
Danfoss A/S © 2018.10
3.4.3 Option Code Identification
6
to identify the installed options.
7 8
2 Product group (PLV = enclosed drive)
4 Low harmonic filter option
6 Model/power rating
8 Option codes
Product Overview
