Operating Guide | VLT® AQUA Drive FC 202
5.7.6.6 Cabinet Heater
Table 38: Auxiliary Function Option Codes
Character posi- Option
tion code
23–24 A3
AB
AE
AH
AI
AK
AL
AM
AN
AP
AS
AT
AU
AW
AX
AY
The cabinet heater option increases the inside temperature of the cabinet above the ambient temperature, preventing condensation
in the cabinet. Each cabinet has 1 cabinet heater. The heater element is self regulating. The external supply is connected to terminal -
XD1.1. When the drive is not in run state, the control relay +QAM changes the supply to the output terminals (-XD4). When the drive is
in run state, the control relay disconnects the supply to the cabinet heater. The function is disabled when MCB –FCE is open.
-FCE
-XD1
L
1
6 A

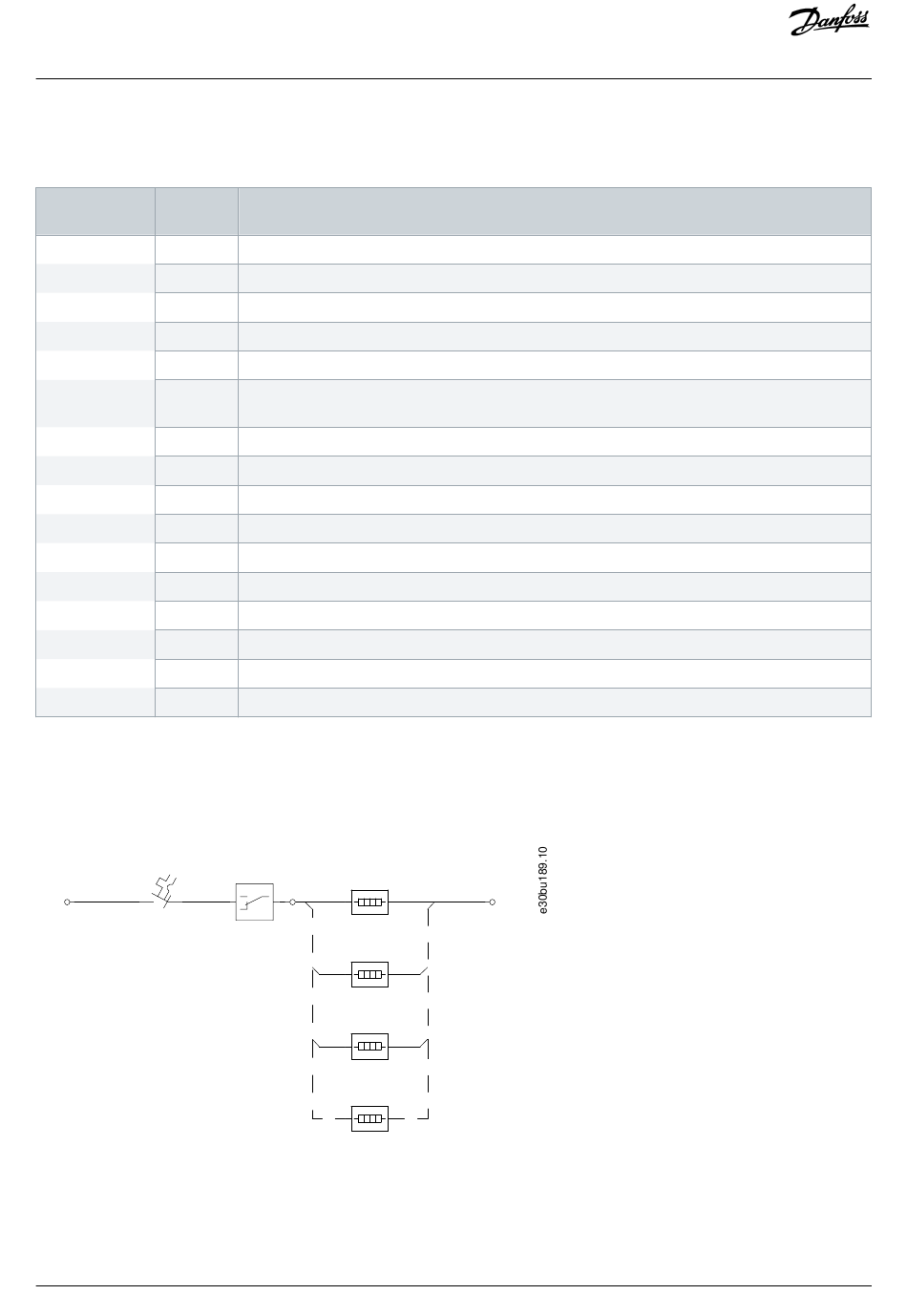

Illustration 46: Cabinet Heater Terminals
76 | Danfoss A/S © 2018.10
Description
Cabinet heater
AC socket + cabinet light + cabinet heater
AC socket + cabinet light + extended I/O terminals + cabinet heater
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AC socket + cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insu-
lation monitor
AC socket + cabinet light + cabinet heater + motor heater control
AC socket + cabinet light + cabinet heater + insulation monitor
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
Extended I/O terminals + cabinet heater
Extended I/O terminals + cabinet heater + motor heater control
Extended I/O terminals + cabinet heater + insulation monitor
Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
Cabinet heater + motor heater control
Cabinet heater + insulation monitor
Cabinet heater + motor heater control + insulation monitor
-QAM
-EB1.1
-XD4
-EB1.2
-EB1.3
-EB1.4
-XD4
N
