Operating Guide | VLT® AQUA Drive FC 202
1
2
-XDL.1
3
4 -XD4.1
1 Additional terminal connections
3 DC-link harness to fan supply in the input filter cabinet
5 PHF contactor 1 supply harness to input filter cabinet (only
with PHF option)
7 Mains cables (R/S/T) to input terminals (R/S/T) in the input
filter cabinet

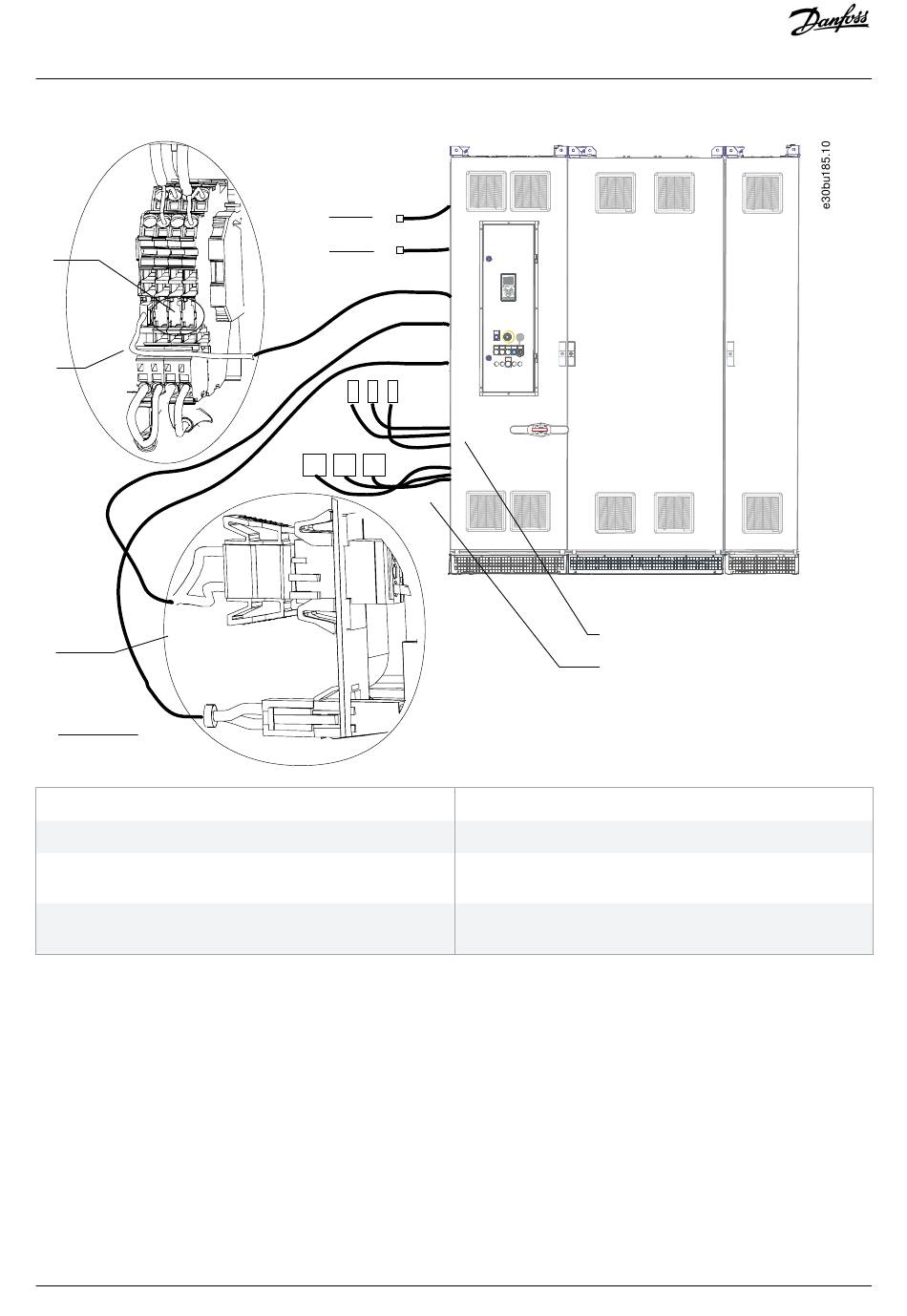

Illustration 38: Split Shipment Electrical Connections (Input Power Options Cabinet + E6h Drive Cabinet + Top Exit Cabinet)
64 | Danfoss A/S © 2018.10
5
-XD4.3
6
-XD4.4
-XD11.3
R S T
L1R L3T
L2S
7
8
2 Thermal protection wiring harness to input filter cabinet
4 Cabinet heater supply harness to input filter cabinet
6 PHF contactor 2 supply harness to input filter cabinet (only
with PHF option)
8 Mains cables (L1R/L2S/L3T) to output terminals (L1R/L2S/L3T)
in the input filter cabinet
Electrical Installation
