Operating Guide | VLT® AQUA Drive FC 202
5.7.6.4 AC Customer Socket
Table 36: Auxiliary Function Option Codes
Character po- Option
sition code
23–24 A1
AA
AB
AC
AD
AE
AF
AG
AH
AI
AJ
AK
AL
AM
AN
AO
The socket provides a supply for measurement tools, equipment, or a computer. The socket type is CEE 7/3 ("Schuko", Type F) or NEMA
5-15 grounded (Type B). The default voltage is 230 V AC (IEC variant) and 115 V AC (UL variant). When using an external supply, the
maximum output power is 450 VA (IEC variant) and 230 VA (UL variant). When using a transformer supply, the maximum output power
is 200 VA for both variants.
-FCC
-XD1
L
1
2 A

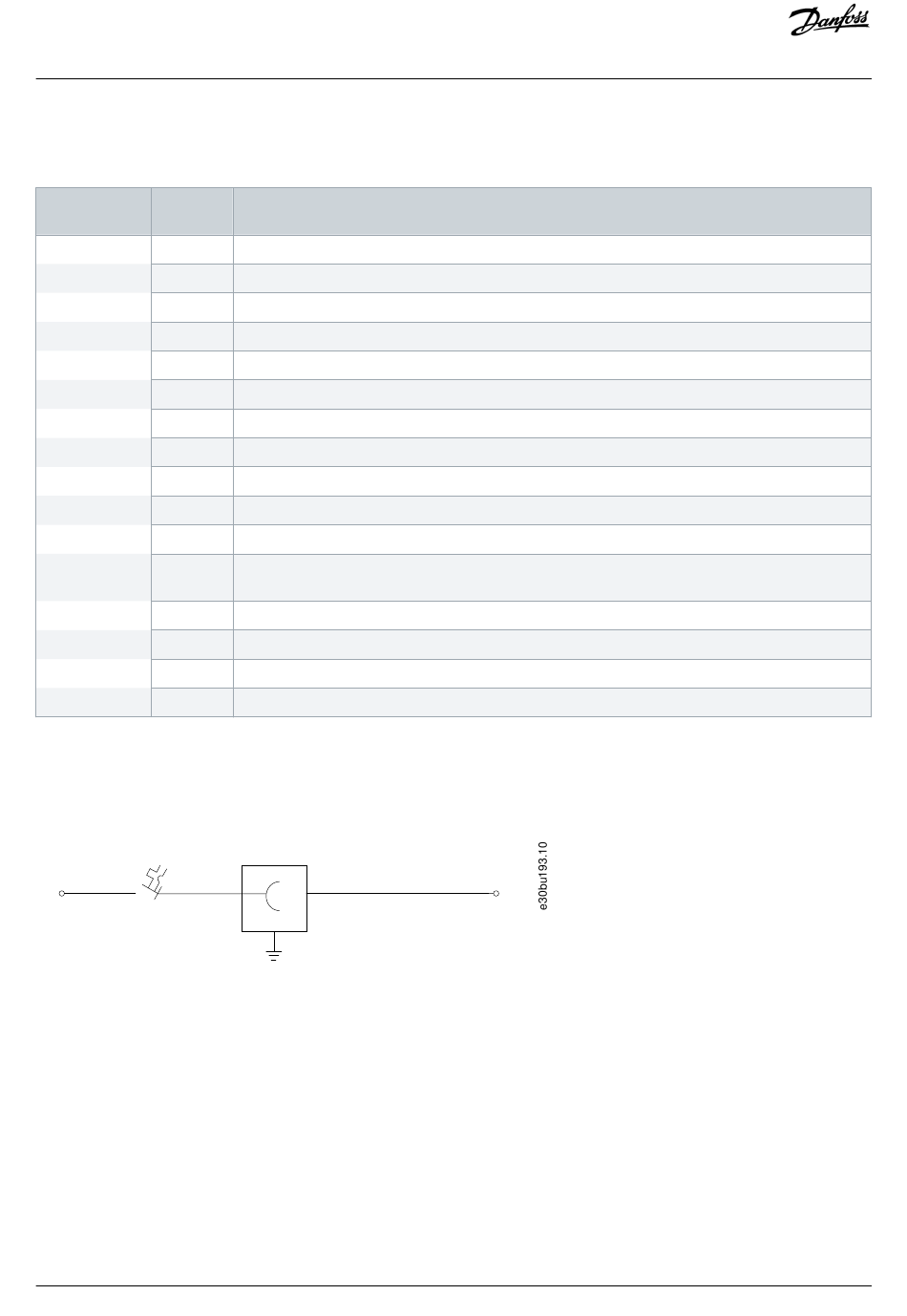

Illustration 45: AC Customer Socket Terminals
74 | Danfoss A/S © 2018.10
Description
AC socket + cabinet light
AC socket + cabinet light + extended I/O terminals
AC socket + cabinet light + cabinet heater
AC socket + cabinet light + motor heater control
AC socket + cabinet light + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater
AC socket + cabinet light + extended I/O terminals + motor heater control
AC socket + cabinet light + extended I/O terminals + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AC socket + cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insu-
lation monitor
AC socket + cabinet light + cabinet heater + motor heater control
AC socket + cabinet light + cabinet heater + insulation monitor
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AC socket + cabinet light + motor heater control + insulation monitor
-XD10
-XD1
N
AQ262141056213en-000101 / 130R0882
Electrical Installation
