Operating Guide | VLT® AQUA Drive FC 202

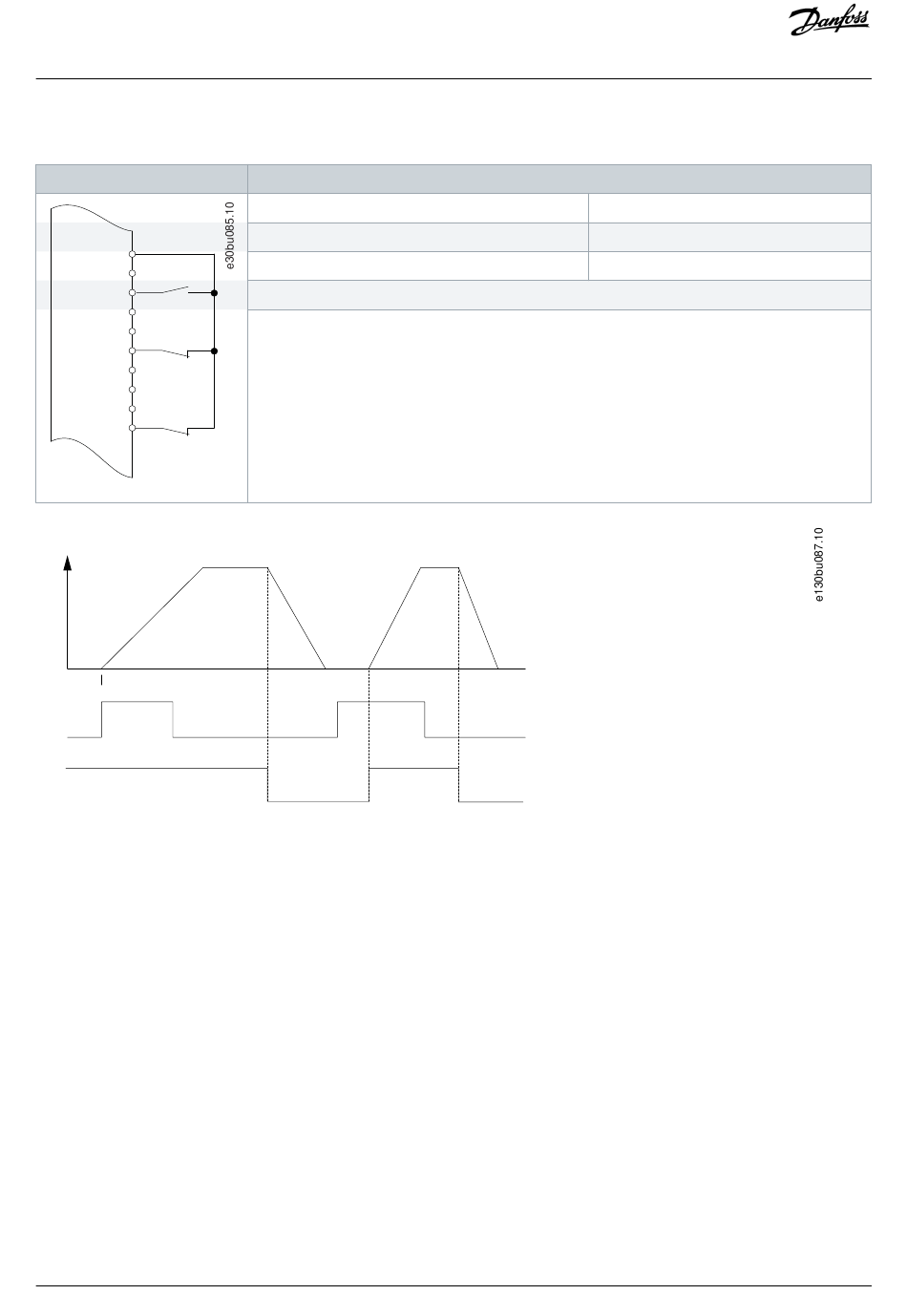

Table 62: Wiring Configuration for Pulse Start/Stop
+24 V
XD2.10
+24 V
XD2.11
D IN
XD2.12
D IN
XD2.13
COM
XD2.18
D IN
XD2.14
D IN
XD2.15
D IN
XD2.16
D IN
XD2.17
D IN
XD2.19
Speed
Latched Start (XD2.12)
Stop Inverse (XD2.14)
Illustration 62:
Latched Start/Stop Inverse
118 | Danfoss A/S © 2018.10
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal XD2.14
is not needed.
D IN 37 is an option.
Terminal 18 in the parameter title corresponds to terminal XD2.12 in the control compartment.
Terminal 27 in the parameter title corresponds to terminal XD2.14 in the control compartment.
Wiring Configuration Examples
Setting
[9] Latched Start
[6] Stop Inverse
AQ262141056213en-000101 / 130R0882
