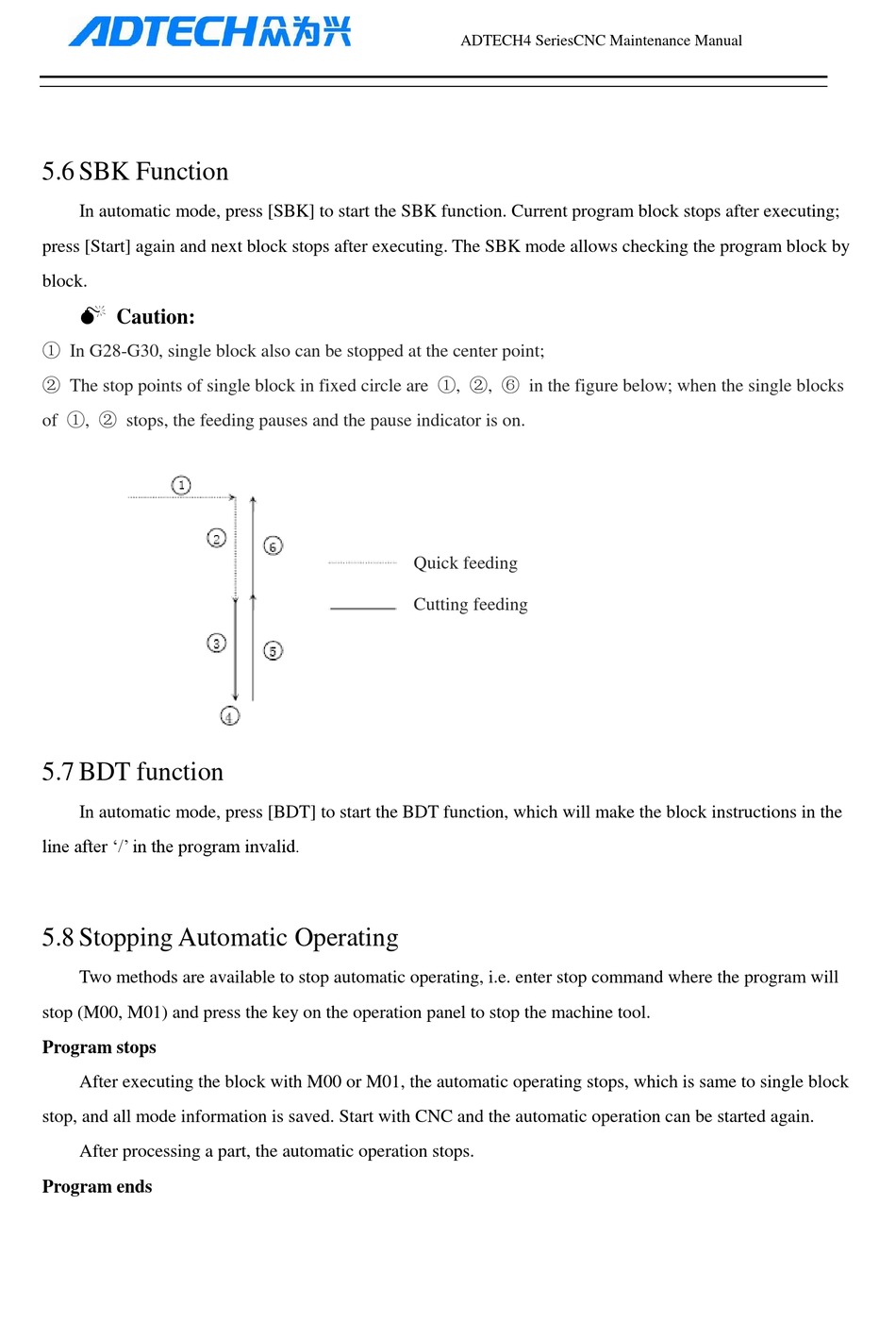

5.6 SBK Function

In automatic mode, press [SBK] to start the SBK function. Current program block stops after executing;
press [Start] again and next block stops after executing. The SBK mode allows checking the program block by
block.

Caution:
① In G28-G30, single block also can be stopped at the center point;
② The stop points of single block in fixed circle are ①, ②, ⑥ in the figure below; when the single blocks
of ①, ② stops, the feeding pauses and the pause indicator is on.

5.7 BDT function

In automatic mode, press [BDT] to start the BDT function, which will make the block instructions in the
line after '/' in the program invalid.

5.8 Stopping Automatic Operating

Two methods are available to stop automatic operating, i.e. enter stop command where the program will
stop (M00, M01) and press the key on the operation panel to stop the machine tool.
Program stops
After executing the block with M00 or M01, the automatic operating stops, which is same to single block
stop, and all mode information is saved. Start with CNC and the automatic operation can be started again.
After processing a part, the automatic operation stops.
Program ends
ADTECH4 SeriesCNC Maintenance Manual
Quick feeding
Cutting feeding
