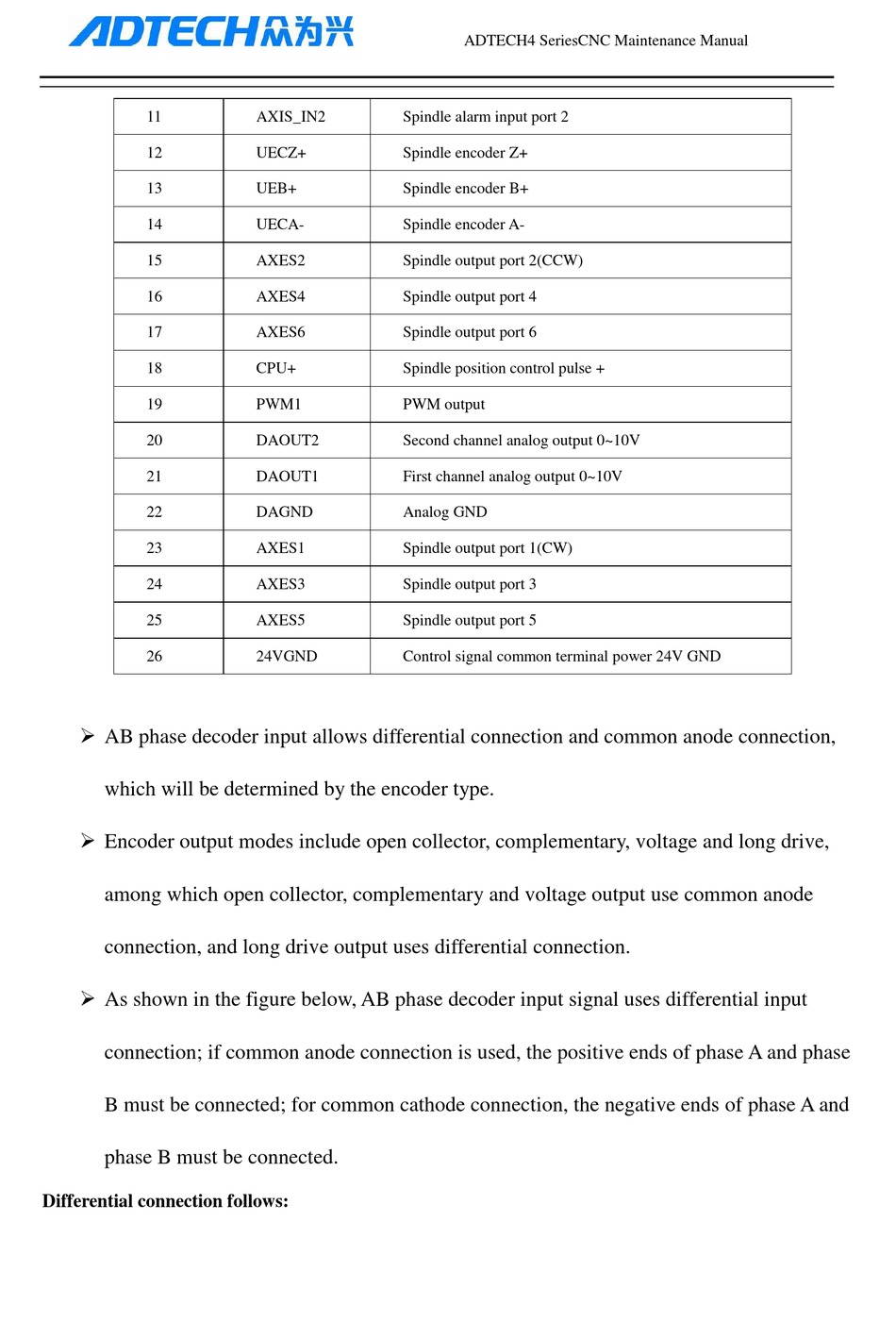

Adtech ADTECH4 CNC Series Maintenance Manual page 185

Table of Contents

Advertisement

11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
 AB phase decoder input allows differential connection and common anode connection,
which will be determined by the encoder type.
 Encoder output modes include open collector, complementary, voltage and long drive,
among which open collector, complementary and voltage output use common anode
connection, and long drive output uses differential connection.
 As shown in the figure below, AB phase decoder input signal uses differential input
connection; if common anode connection is used, the positive ends of phase A and phase
B must be connected; for common cathode connection, the negative ends of phase A and
phase B must be connected.
Differential connection follows:
AXIS_IN2
Spindle alarm input port 2
UECZ+
Spindle encoder Z+
UEB+
Spindle encoder B+
UECA-
Spindle encoder A-
AXES2
Spindle output port 2(CCW)
AXES4
Spindle output port 4
AXES6
Spindle output port 6
CPU+
Spindle position control pulse +
PWM1
PWM output
DAOUT2
Second channel analog output 0~10V
DAOUT1
First channel analog output 0~10V
DAGND
Analog GND
AXES1
Spindle output port 1(CW)
AXES3
Spindle output port 3
AXES5
Spindle output port 5
24VGND
Control signal common terminal power 24V GND
