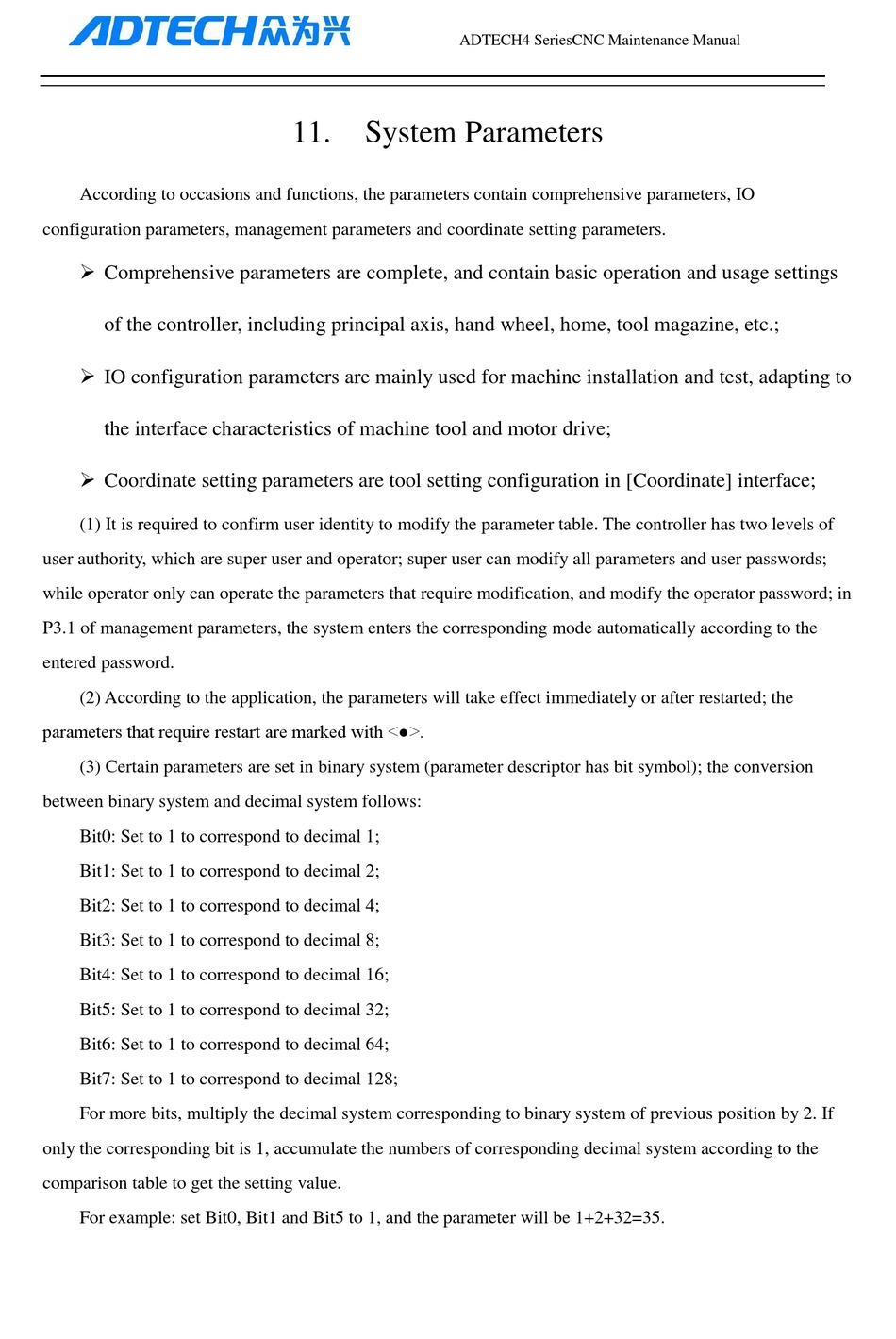

According to occasions and functions, the parameters contain comprehensive parameters, IO
configuration parameters, management parameters and coordinate setting parameters.
 Comprehensive parameters are complete, and contain basic operation and usage settings
of the controller, including principal axis, hand wheel, home, tool magazine, etc.;
 IO configuration parameters are mainly used for machine installation and test, adapting to
the interface characteristics of machine tool and motor drive;
 Coordinate setting parameters are tool setting configuration in [Coordinate] interface;
(1) It is required to confirm user identity to modify the parameter table. The controller has two levels of
user authority, which are super user and operator; super user can modify all parameters and user passwords;
while operator only can operate the parameters that require modification, and modify the operator password; in
P3.1 of management parameters, the system enters the corresponding mode automatically according to the
entered password.
(2) According to the application, the parameters will take effect immediately or after restarted; the
parameters that require restart are marked with <●>.
(3) Certain parameters are set in binary system (parameter descriptor has bit symbol); the conversion
between binary system and decimal system follows:
Bit0: Set to 1 to correspond to decimal 1;
Bit1: Set to 1 to correspond to decimal 2;
Bit2: Set to 1 to correspond to decimal 4;
Bit3: Set to 1 to correspond to decimal 8;
Bit4: Set to 1 to correspond to decimal 16;
Bit5: Set to 1 to correspond to decimal 32;
Bit6: Set to 1 to correspond to decimal 64;
Bit7: Set to 1 to correspond to decimal 128;
For more bits, multiply the decimal system corresponding to binary system of previous position by 2. If
only the corresponding bit is 1, accumulate the numbers of corresponding decimal system according to the
comparison table to get the setting value.
For example: set Bit0, Bit1 and Bit5 to 1, and the parameter will be 1+2+32=35.
