Et102A Splitter Function Definition - Adtech ADTECH4 CNC Series Maintenance Manual

Note: The splitter terminal GND and +24V are used for power supply of external proximity sensor switch. Every four
input points share a group, and the maximum operating current of each group of power supply terminals is 200MA.
Except common terminal 24V or GND is selected for IN08-IN15 by J34, the common terminal of all other input points is
+24V, and the status of the input point inverts when all input terminals are connected to GND.

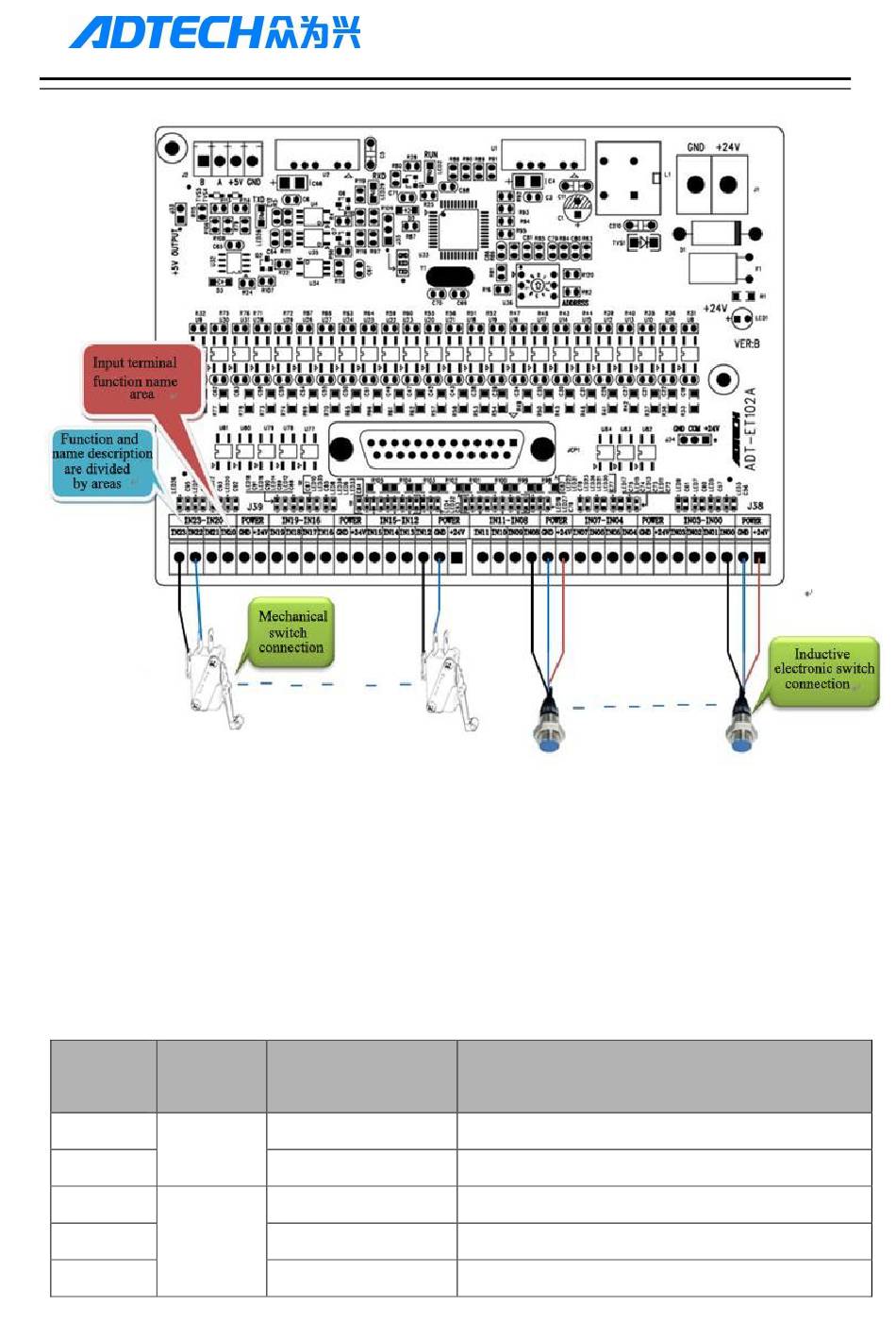

ET102A splitter function definition

Termina Area
l No.
J38
POWER
J38
J38
IN03-IN
J38
00
J38
Port Name
+24V
GND
IN00
IN01
IN02
ADTECH4 SeriesCNC Maintenance Manual
Function
24V power output terminal
24V power output GND terminal
IN00
IN01
IN02
