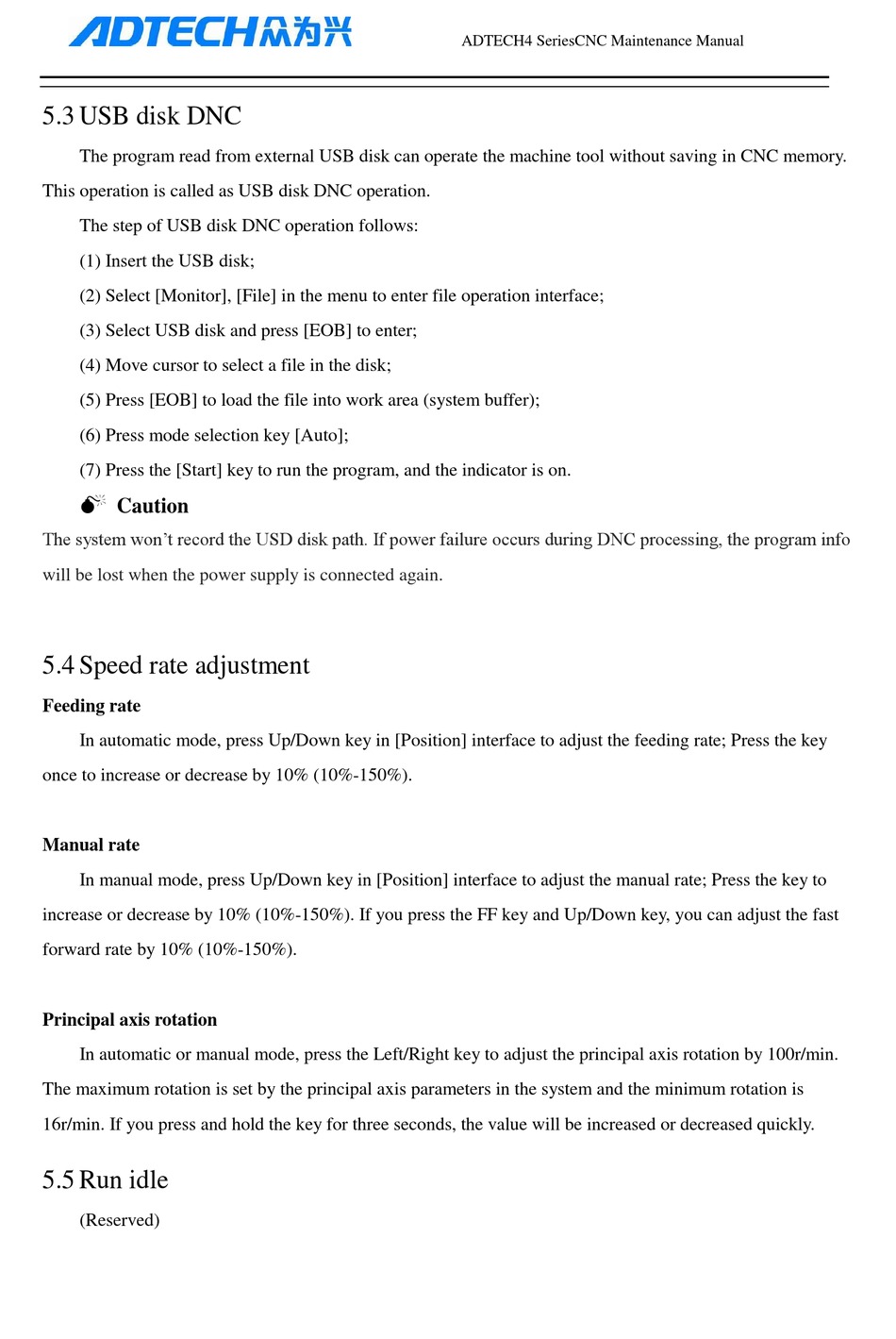

5.3 USB disk DNC

The program read from external USB disk can operate the machine tool without saving in CNC memory.
This operation is called as USB disk DNC operation.
The step of USB disk DNC operation follows:
(1) Insert the USB disk;
(2) Select [Monitor], [File] in the menu to enter file operation interface;
(3) Select USB disk and press [EOB] to enter;
(4) Move cursor to select a file in the disk;
(5) Press [EOB] to load the file into work area (system buffer);
(6) Press mode selection key [Auto];
(7) Press the [Start] key to run the program, and the indicator is on.

Caution
The system won't record the USD disk path. If power failure occurs during DNC processing, the program info
will be lost when the power supply is connected again.

5.4 Speed rate adjustment

Feeding rate
In automatic mode, press Up/Down key in [Position] interface to adjust the feeding rate; Press the key
once to increase or decrease by 10% (10%-150%).
Manual rate
In manual mode, press Up/Down key in [Position] interface to adjust the manual rate; Press the key to
increase or decrease by 10% (10%-150%). If you press the FF key and Up/Down key, you can adjust the fast
forward rate by 10% (10%-150%).
Principal axis rotation
In automatic or manual mode, press the Left/Right key to adjust the principal axis rotation by 100r/min.
The maximum rotation is set by the principal axis parameters in the system and the minimum rotation is
16r/min. If you press and hold the key for three seconds, the value will be increased or decreased quickly.

5.5 Run idle

(Reserved)
