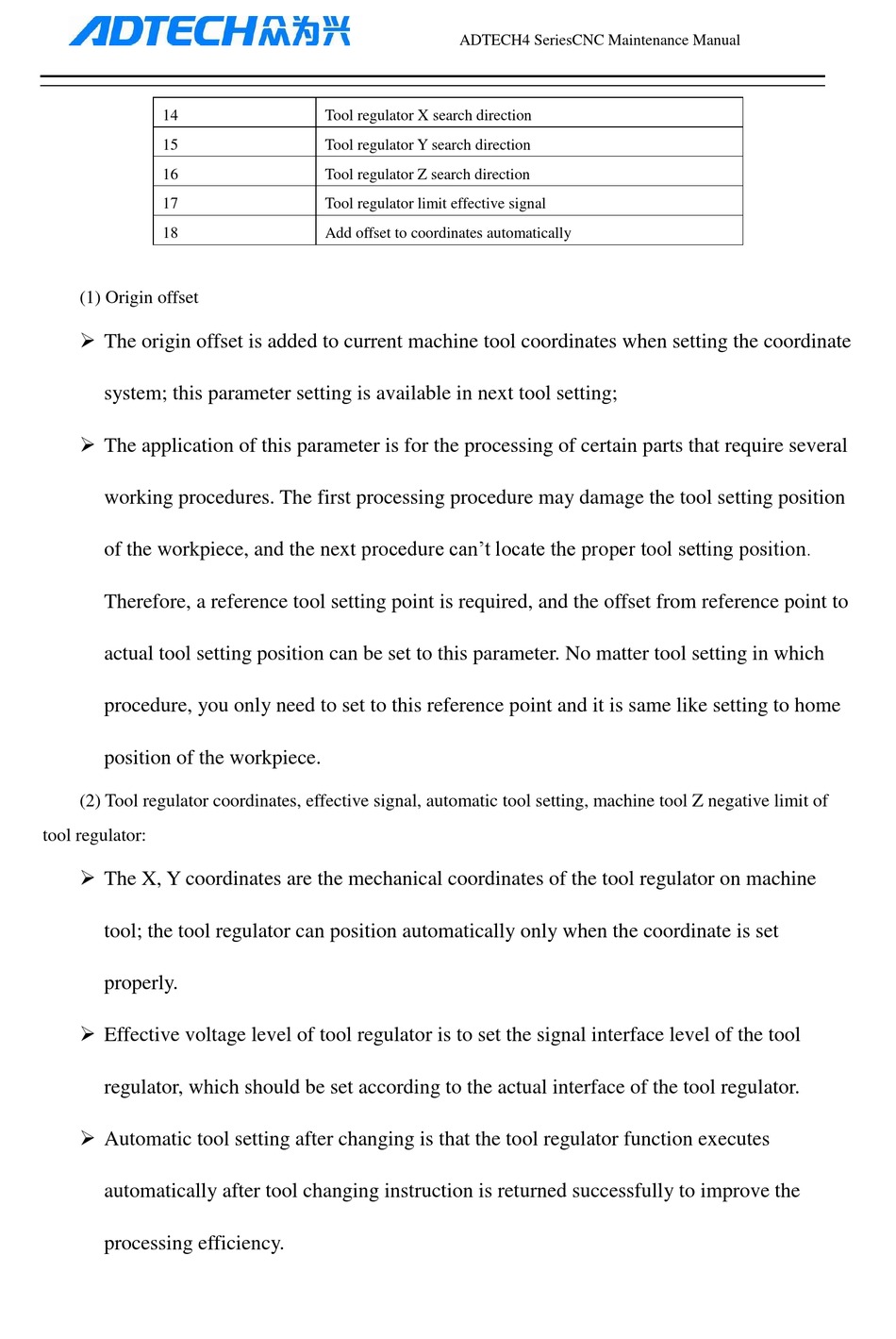

Adtech ADTECH4 CNC Series Maintenance Manual page 65

14
15
16
17
18
(1) Origin offset
 The origin offset is added to current machine tool coordinates when setting the coordinate
system; this parameter setting is available in next tool setting;
 The application of this parameter is for the processing of certain parts that require several
working procedures. The first processing procedure may damage the tool setting position
of the workpiece, and the next procedure can't locate the proper tool setting position.
Therefore, a reference tool setting point is required, and the offset from reference point to
actual tool setting position can be set to this parameter. No matter tool setting in which
procedure, you only need to set to this reference point and it is same like setting to home
position of the workpiece.
(2) Tool regulator coordinates, effective signal, automatic tool setting, machine tool Z negative limit of
tool regulator:
 The X, Y coordinates are the mechanical coordinates of the tool regulator on machine
tool; the tool regulator can position automatically only when the coordinate is set
properly.
 Effective voltage level of tool regulator is to set the signal interface level of the tool
regulator, which should be set according to the actual interface of the tool regulator.
 Automatic tool setting after changing is that the tool regulator function executes
automatically after tool changing instruction is returned successfully to improve the
processing efficiency.
ADTECH4 SeriesCNC Maintenance Manual
Tool regulator X search direction
Tool regulator Y search direction
Tool regulator Z search direction
Tool regulator limit effective signal
Add offset to coordinates automatically
