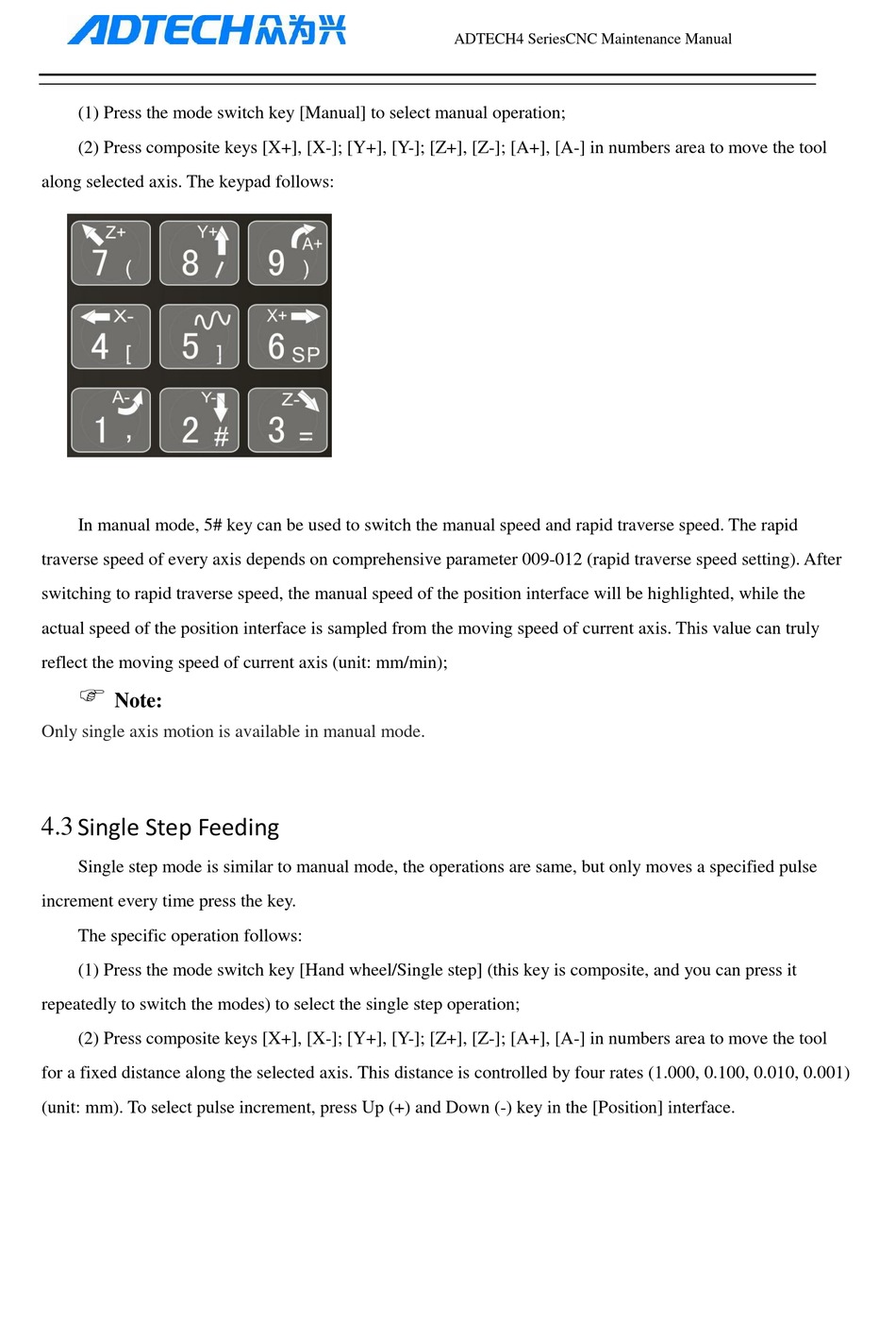

(1) Press the mode switch key [Manual] to select manual operation;
(2) Press composite keys [X+], [X-]; [Y+], [Y-]; [Z+], [Z-]; [A+], [A-] in numbers area to move the tool
along selected axis. The keypad follows:
In manual mode, 5# key can be used to switch the manual speed and rapid traverse speed. The rapid
traverse speed of every axis depends on comprehensive parameter 009-012 (rapid traverse speed setting). After
switching to rapid traverse speed, the manual speed of the position interface will be highlighted, while the
actual speed of the position interface is sampled from the moving speed of current axis. This value can truly
reflect the moving speed of current axis (unit: mm/min);

Note:
Only single axis motion is available in manual mode.

4.3 Single Step Feeding

Single step mode is similar to manual mode, the operations are same, but only moves a specified pulse
increment every time press the key.
The specific operation follows:
(1) Press the mode switch key [Hand wheel/Single step] (this key is composite, and you can press it
repeatedly to switch the modes) to select the single step operation;
(2) Press composite keys [X+], [X-]; [Y+], [Y-]; [Z+], [Z-]; [A+], [A-] in numbers area to move the tool
for a fixed distance along the selected axis. This distance is controlled by four rates (1.000, 0.100, 0.010, 0.001)
(unit: mm). To select pulse increment, press Up (+) and Down (-) key in the [Position] interface.
