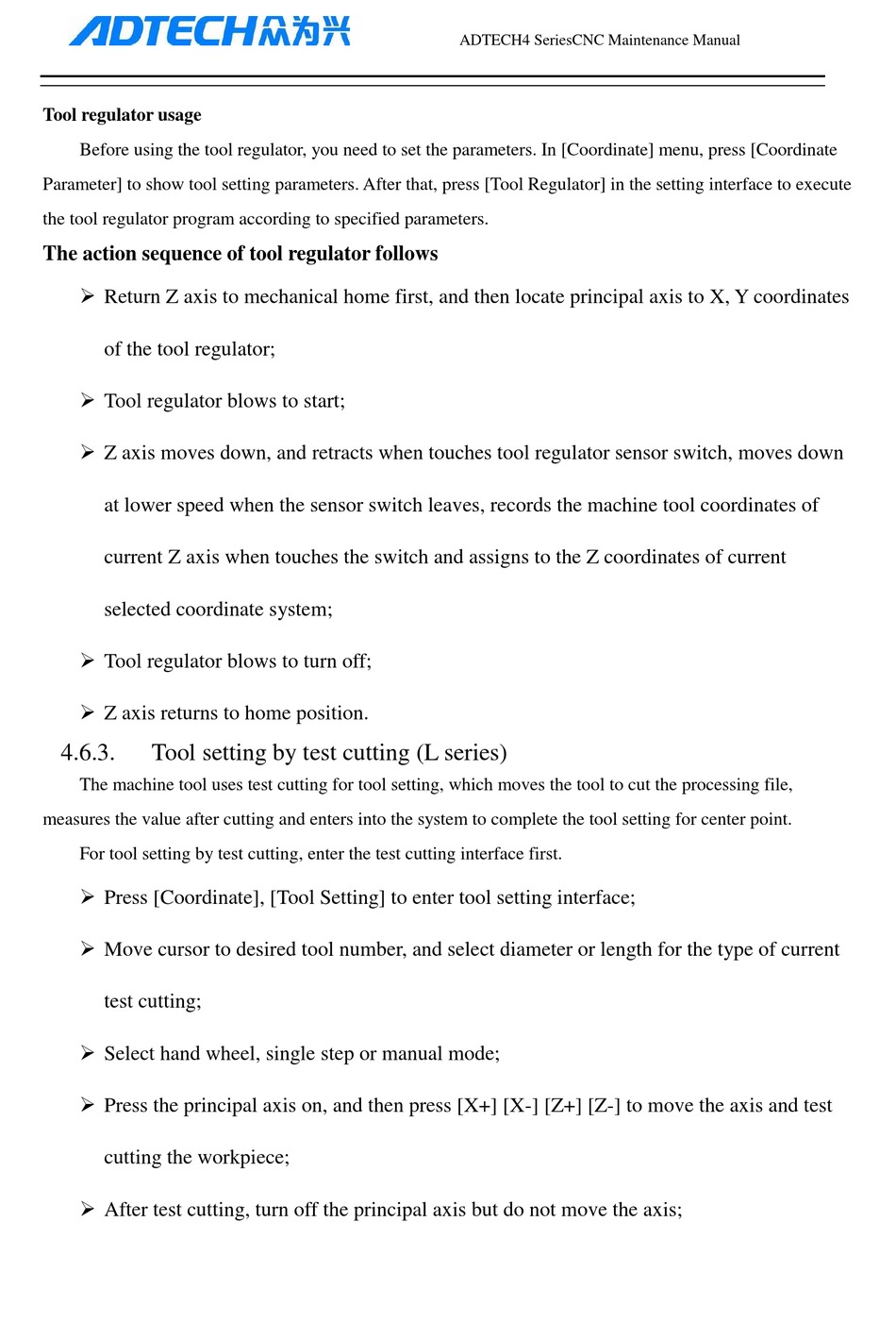

Tool regulator usage
Before using the tool regulator, you need to set the parameters. In [Coordinate] menu, press [Coordinate
Parameter] to show tool setting parameters. After that, press [Tool Regulator] in the setting interface to execute
the tool regulator program according to specified parameters.
The action sequence of tool regulator follows
 Return Z axis to mechanical home first, and then locate principal axis to X, Y coordinates
of the tool regulator;
 Tool regulator blows to start;
 Z axis moves down, and retracts when touches tool regulator sensor switch, moves down
at lower speed when the sensor switch leaves, records the machine tool coordinates of
current Z axis when touches the switch and assigns to the Z coordinates of current
selected coordinate system;
 Tool regulator blows to turn off;
 Z axis returns to home position.
4.6.3.

Tool setting by test cutting (L series)

The machine tool uses test cutting for tool setting, which moves the tool to cut the processing file,
measures the value after cutting and enters into the system to complete the tool setting for center point.
For tool setting by test cutting, enter the test cutting interface first.
 Press [Coordinate], [Tool Setting] to enter tool setting interface;
 Move cursor to desired tool number, and select diameter or length for the type of current
test cutting;
 Select hand wheel, single step or manual mode;
 Press the principal axis on, and then press [X+] [X-] [Z+] [Z-] to move the axis and test
cutting the workpiece;
 After test cutting, turn off the principal axis but do not move the axis;
