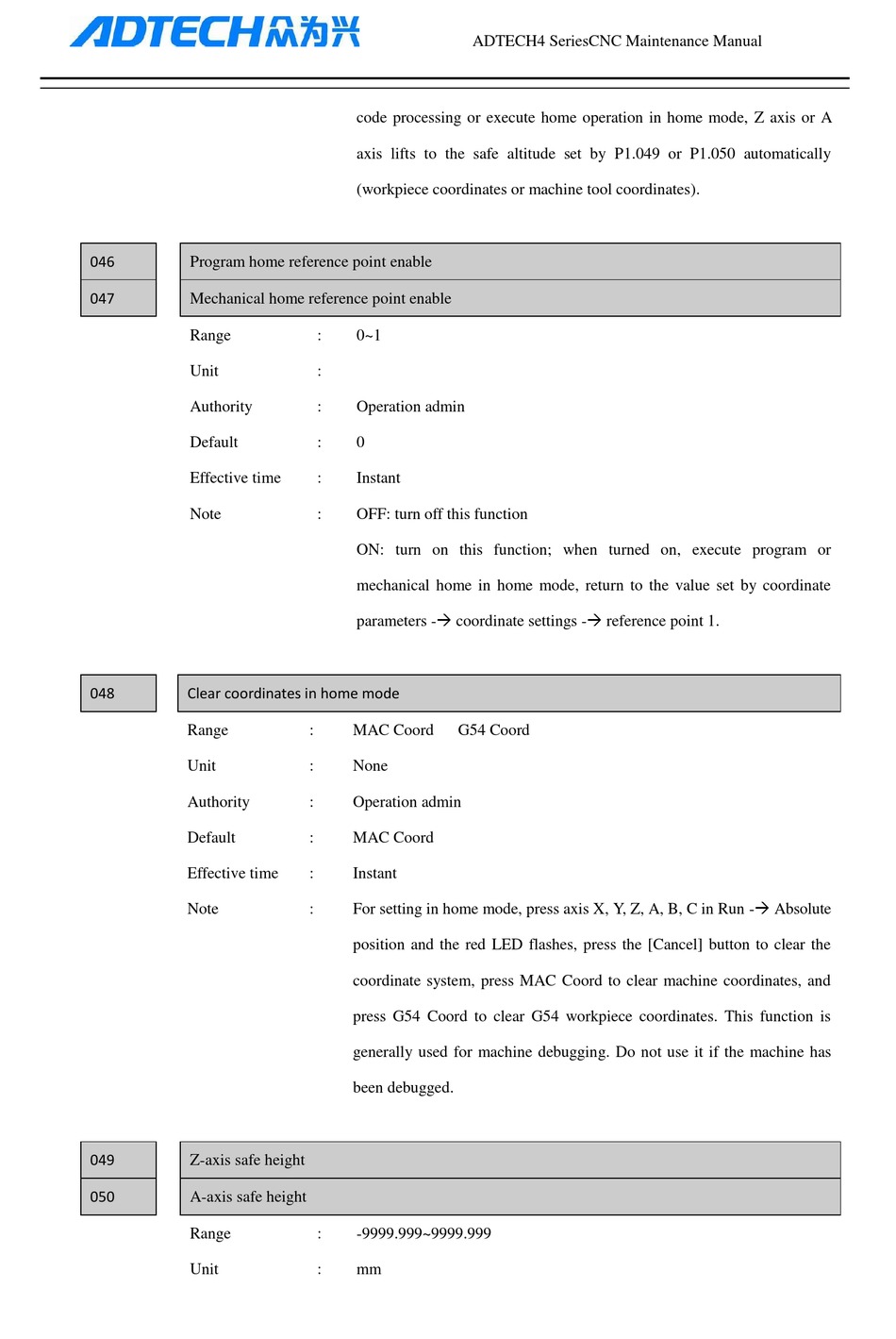

Adtech ADTECH4 CNC Series Maintenance Manual page 115

046
Program home reference point enable
047
Mechanical home reference point enable
Range
Unit
Authority
Default
Effective time
Note
048 Clear coordinates in home mode
Range
Unit
Authority
Default
Effective time
Note
049
Z-axis safe height
050
A-axis safe height
Range
Unit
ADTECH4 SeriesCNC Maintenance Manual
code processing or execute home operation in home mode, Z axis or A
axis lifts to the safe altitude set by P1.049 or P1.050 automatically
(workpiece coordinates or machine tool coordinates).
: 0~1
:
: Operation admin
: 0
: Instant
: OFF: turn off this function
ON: turn on this function; when turned on, execute program or
mechanical home in home mode, return to the value set by coordinate
parameters - coordinate settings - reference point 1.
: MAC Coord G54 Coord
: None
: Operation admin
: MAC Coord
: Instant
: For setting in home mode, press axis X, Y, Z, A, B, C in Run - Absolute
position and the red LED flashes, press the [Cancel] button to clear the
coordinate system, press MAC Coord to clear machine coordinates, and
press G54 Coord to clear G54 workpiece coordinates. This function is
generally used for machine debugging. Do not use it if the machine has
been debugged.
: -9999.999~9999.999
: mm
