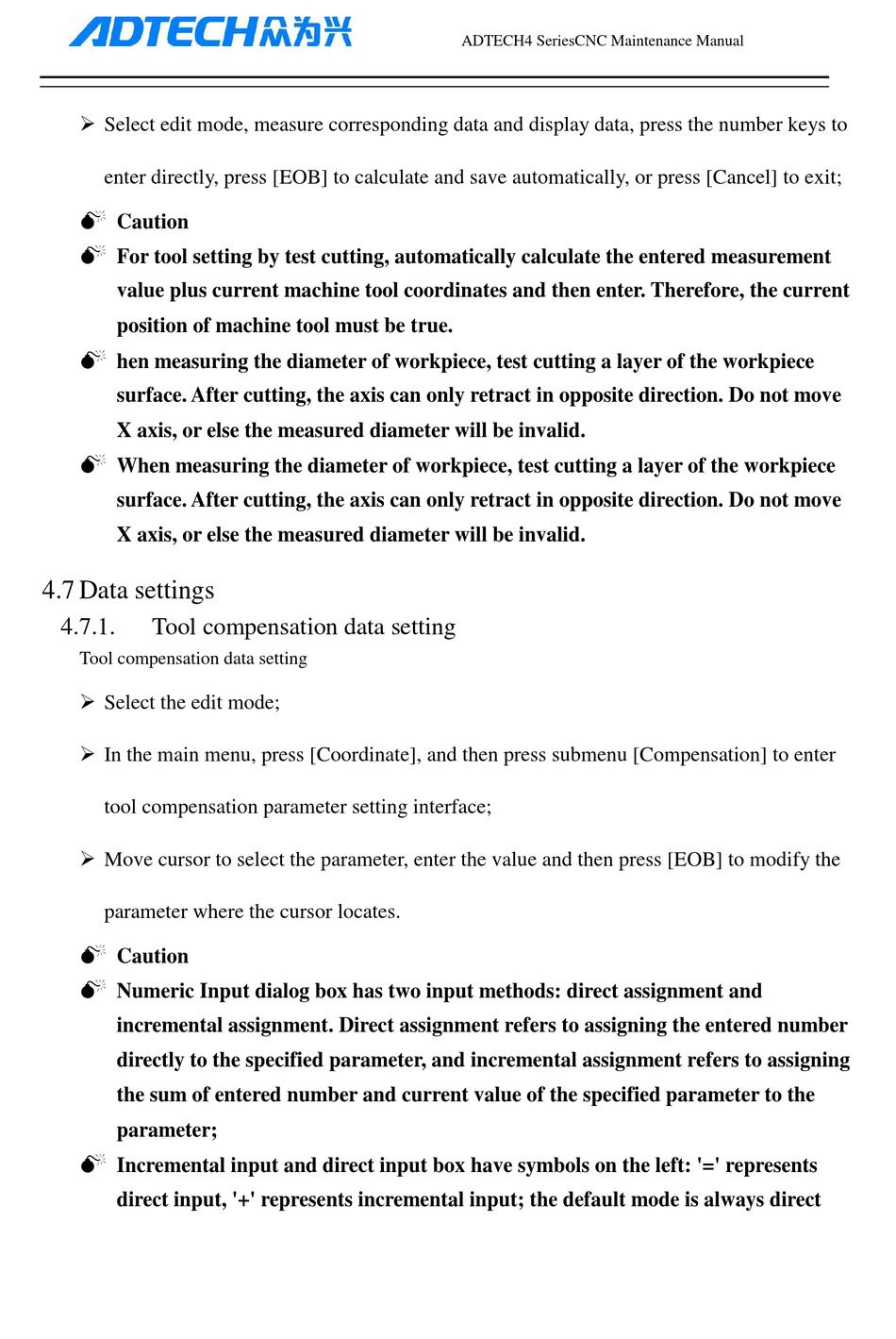

 Select edit mode, measure corresponding data and display data, press the number keys to
enter directly, press [EOB] to calculate and save automatically, or press [Cancel] to exit;

Caution

For tool setting by test cutting, automatically calculate the entered measurement
value plus current machine tool coordinates and then enter. Therefore, the current
position of machine tool must be true.

hen measuring the diameter of workpiece, test cutting a layer of the workpiece
surface. After cutting, the axis can only retract in opposite direction. Do not move
X axis, or else the measured diameter will be invalid.

When measuring the diameter of workpiece, test cutting a layer of the workpiece
surface. After cutting, the axis can only retract in opposite direction. Do not move
X axis, or else the measured diameter will be invalid.

4.7 Data settings

4.7.1.

Tool compensation data setting

Tool compensation data setting
 Select the edit mode;
 In the main menu, press [Coordinate], and then press submenu [Compensation] to enter
tool compensation parameter setting interface;
 Move cursor to select the parameter, enter the value and then press [EOB] to modify the
parameter where the cursor locates.

Caution

Numeric Input dialog box has two input methods: direct assignment and
incremental assignment. Direct assignment refers to assigning the entered number
directly to the specified parameter, and incremental assignment refers to assigning
the sum of entered number and current value of the specified parameter to the
parameter;

Incremental input and direct input box have symbols on the left: '=' represents
direct input, '+' represents incremental input; the default mode is always direct
