Adt9163 Splitter Wiring Diagram - Adtech ADTECH4 CNC Series Maintenance Manual

12.3.6.

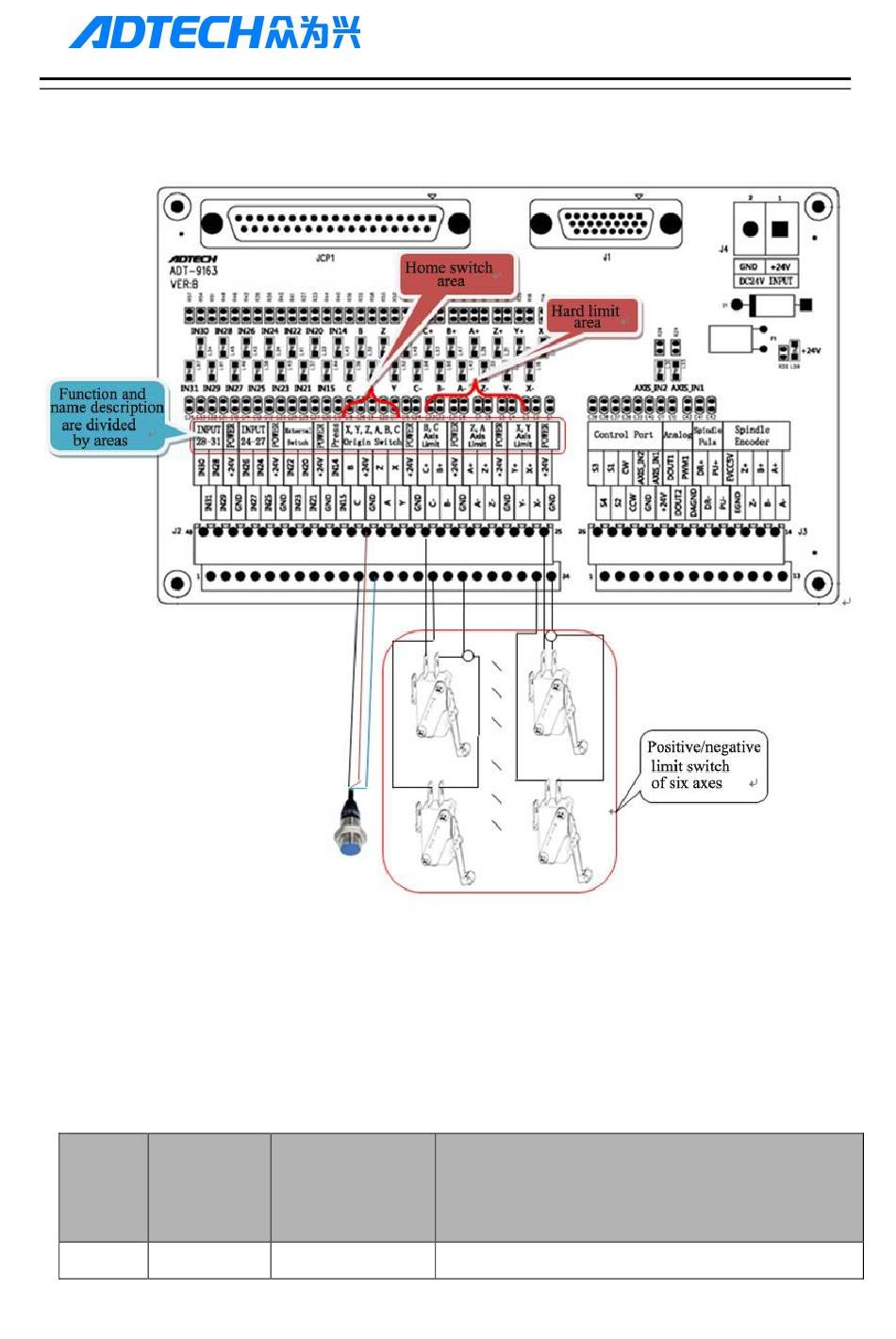

ADT9163 splitter wiring diagram

Note: The splitter terminal GND and +24V are used for power supply of external proximity sensor switch. Every four
input points share a group, and the maximum operating current of each group of power supply terminals is 200MA. The
common terminal of all input points is +24V, and the status of the input point inverts when all input terminals are
connected to GND.
Termi Area
nal
No.
J2 POWER
ADTECH4 SeriesCNC Maintenance Manual
Port Name Function
+24V 24V power output terminal
