Wire
No.
1
2
3
4
5
12.2.6.

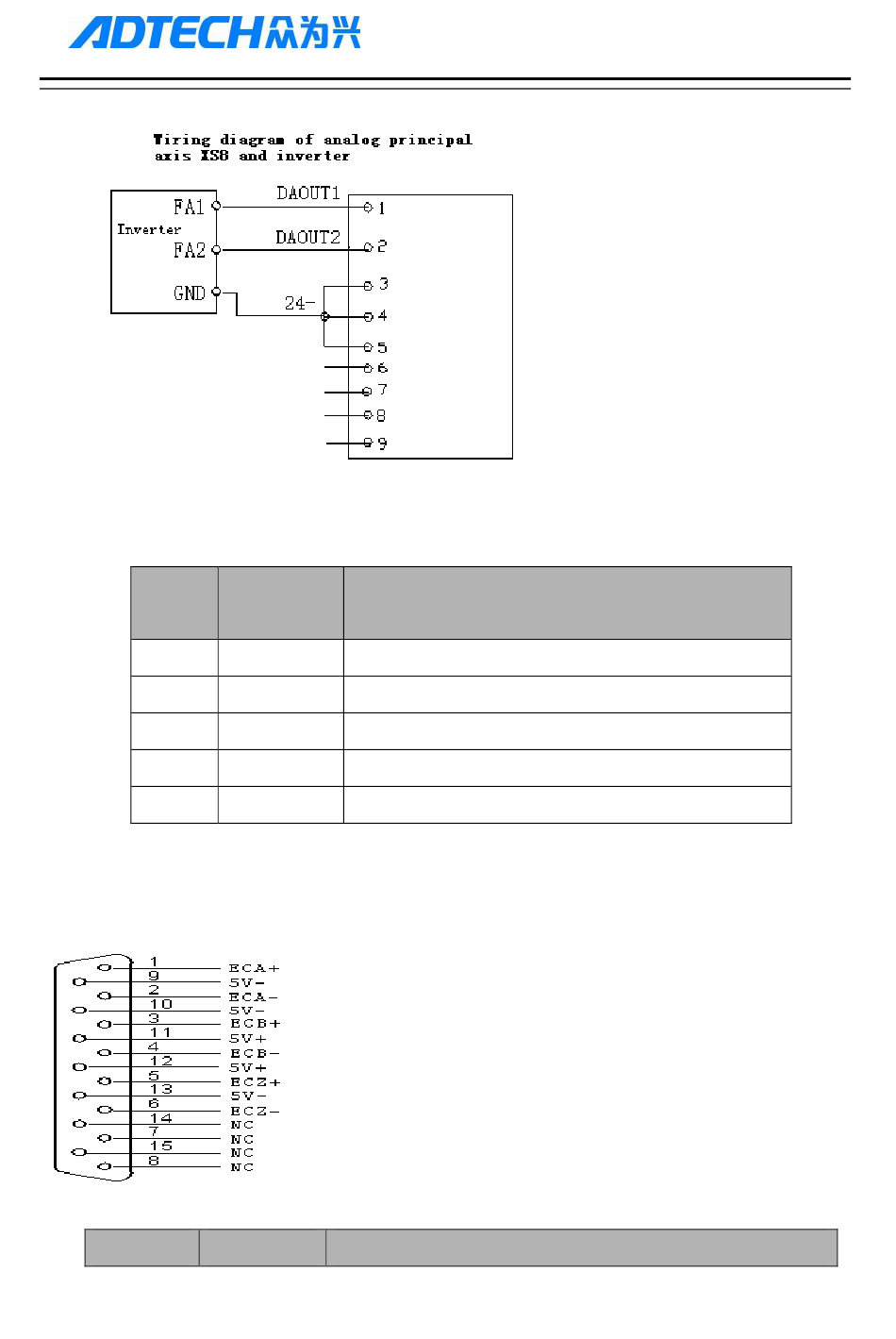

Principal axis encoder interface (46 series XS12, 49 series XS10)

Principal axis encoder wiring diagram (46 series XS12):
Principal axis encoder definition follows (46 series controller):
Wire No.
Definition Function
DAOUT1 Analog voltage output (0~10) V
DAOUT2 Analog voltage output (0~10) V
GND Internal 24V power grounding
GND Internal 24V power grounding
GND Internal 24V power grounding
Definition Function
