Adtech ADTECH4 CNC Series Maintenance Manual page 162

Wire No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Standard pulse wiring diagram
Definition
PU+
PU-
DR+
DR-
ALM
OUT
ECZ+
ECZ-
GND
24V+
24V-
ECA+
ECA-
ECB+
ECB-

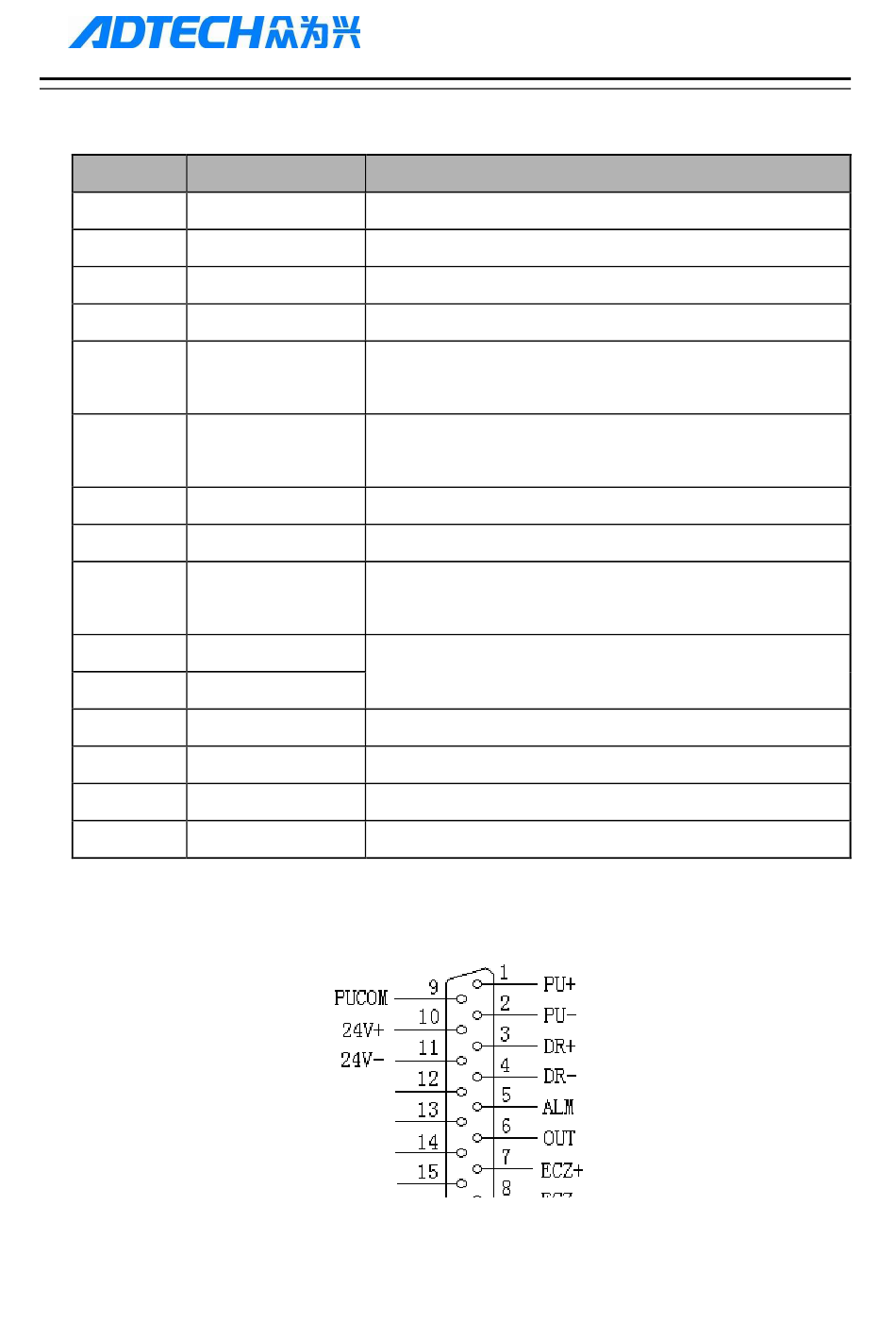

XS1 ... XS4 Pulse Interfaces Standard Wiring
ADTECH4 SeriesCNC Maintenance Manual
Function
Pulse signal +
Pulse signal -
Direction signal +
Direction signal -
Servo alarm signal input
X axis: IN34, Y axis: IN35, Z axis: IN36, A axis: IN37
Axis alarm reset output signal
X axis: OUT24, Y axis: OUT25, Z axis: OUT26 A, axis: OUT27
Encoder phase Z input +
Encoder phase Z input -
49 series reference ground, 46 series single-ended to common
terminal
Internally provided 24V power supply, directly connected to 24V
power supply of the controller
Encoder phase A input +
Encoder phase A input -
Encoder phase B input +
Encoder phase B input -
