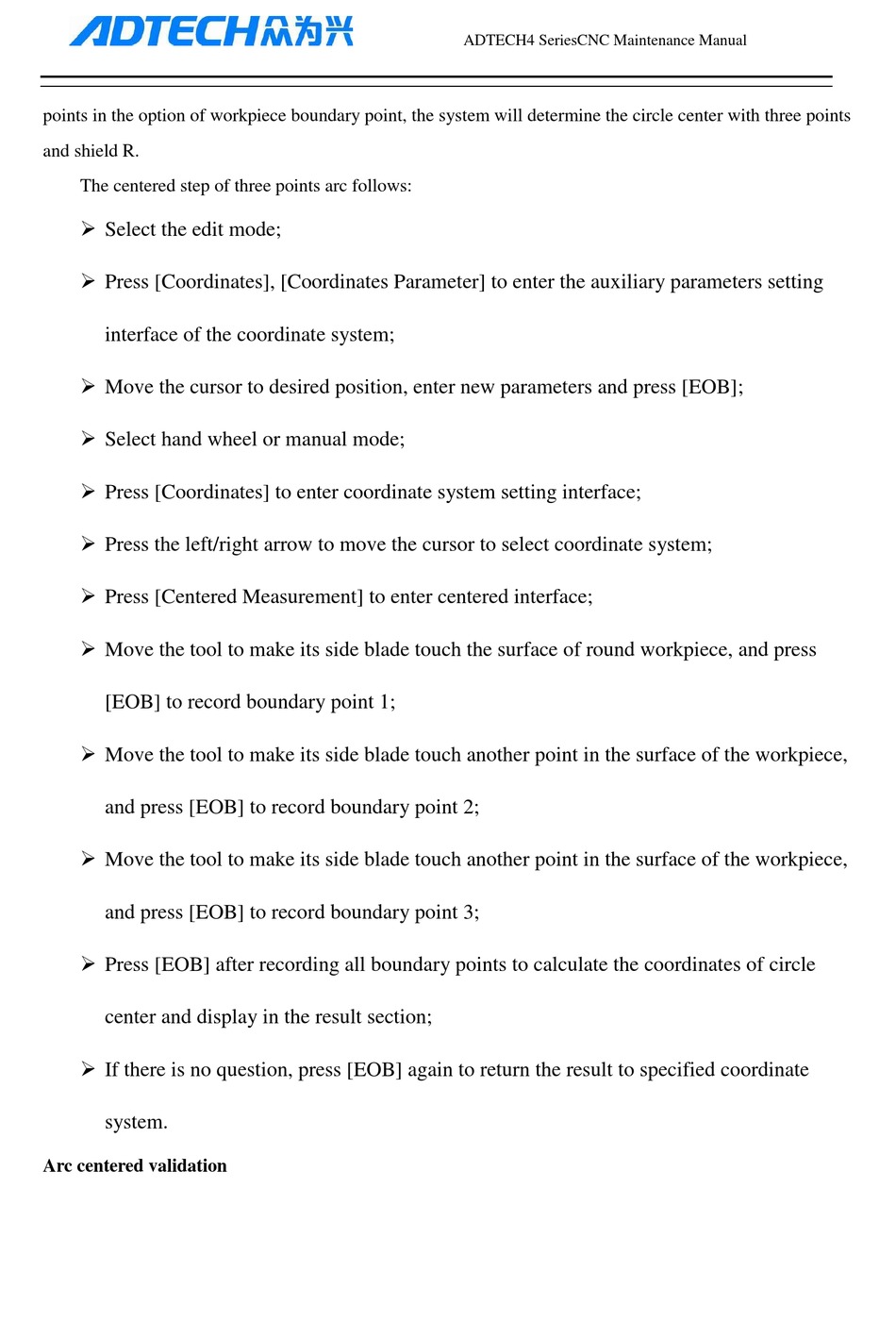

Adtech ADTECH4 CNC Series Maintenance Manual page 31

points in the option of workpiece boundary point, the system will determine the circle center with three points
and shield R.
The centered step of three points arc follows:
 Select the edit mode;
 Press [Coordinates], [Coordinates Parameter] to enter the auxiliary parameters setting
interface of the coordinate system;
 Move the cursor to desired position, enter new parameters and press [EOB];
 Select hand wheel or manual mode;
 Press [Coordinates] to enter coordinate system setting interface;
 Press the left/right arrow to move the cursor to select coordinate system;
 Press [Centered Measurement] to enter centered interface;
 Move the tool to make its side blade touch the surface of round workpiece, and press
[EOB] to record boundary point 1;
 Move the tool to make its side blade touch another point in the surface of the workpiece,
and press [EOB] to record boundary point 2;
 Move the tool to make its side blade touch another point in the surface of the workpiece,
and press [EOB] to record boundary point 3;
 Press [EOB] after recording all boundary points to calculate the coordinates of circle
center and display in the result section;
 If there is no question, press [EOB] again to return the result to specified coordinate
system.
Arc centered validation
