LCD display unit

Note:
Screen information displays the information about the current window
Working mode information displays the currently selected working mode
Main screen information displays the current content of the main screen.
Sub-screen menu options are used to switch the corresponding sub-screens with the left arrow, F1 ~ F6
and right arrow. The right cycle arrow is used to turn pages, the left cycle arrow is used to close the submenu
and return to previous menu.
ADTECH4 SeriesCNC Maintenance Manual

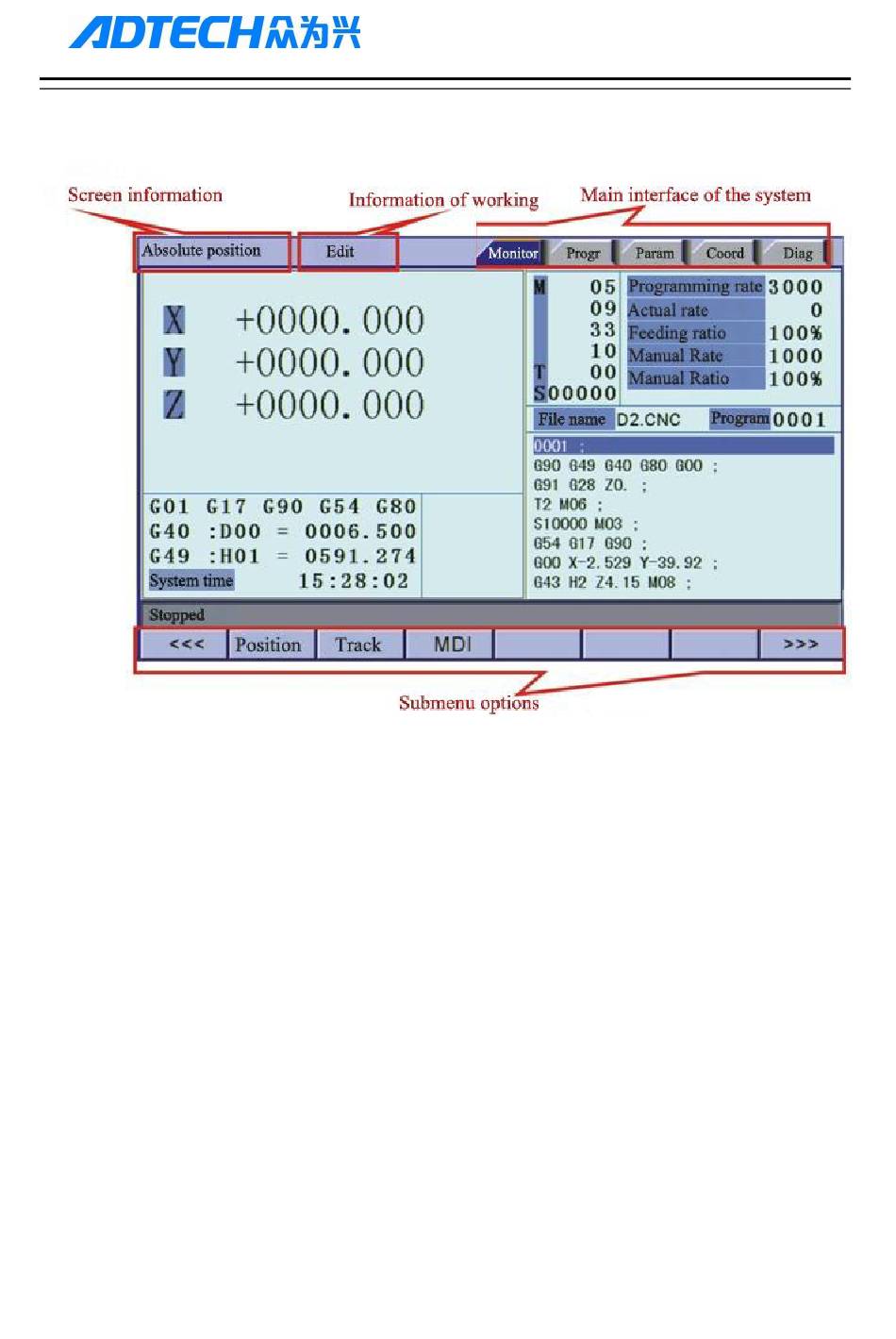

Fig. 3.2 CNC4640 LCD Screen Diagram
