ADTECH4 SeriesCNC Maintenance Manual
12.2 Interface Definition
12.2.1.
Motor Drive Control Interface
Four drive interfaces are available (46 series XS1...XS4 or 49 series XS1...XS4, XS5, XS6), and they
have the same definition, as shown below:

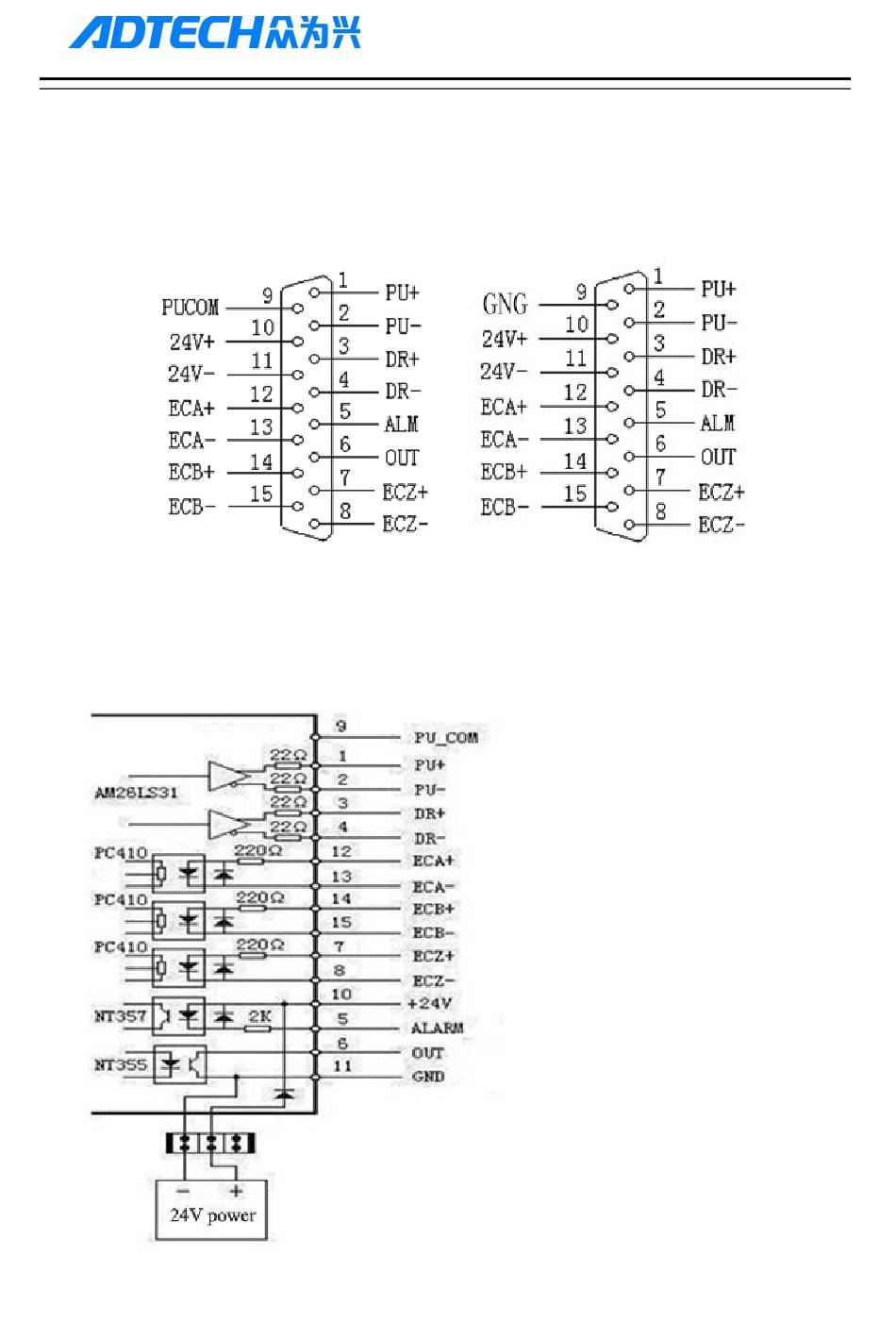

46 series pulse connection
49 series pulse connection
Simple Internal Circuit Diagram for Pulse Output
