5. Digital Input and Output Interfaces

5.1 Digital Inputs

QC400 contains an extended wiring IO board, which is powered by an independent
external 24V power supply. It has 34 ordinary inputs and 27 ordinary outputs (6 relays are
included). Effective input level can be determined to high or low according to the level
configuration of common terminal.

5.1.1 Input Interface Definition and Pin Functions

 INPUTCOM(input common terminal): an external 24V or 12V power supplied.
 Digital input interface uses a 37-pin DB terminal and 20-pin socket, which contains the
power and common wiring ports.
Pins' arrangement of digital input port is shown as following:
Note:
Input board contains three INPUTCOM ports. All input ports can be used if only one of
INPUTCOMs is supplied with 24V.
1
IN_0
2
IN_1
3
IN_2
4
IN_3
5
GND_24V
6
INPUTCOM
7
IN_4
8
IN_5
9
IN_6
10
IN_7
11
P 24V
12
IN_8
13
IN_9
14
IN_10
15
IN_11
16
GND_24V
17
INPUTCOM
18
IN_12
19
IN_13

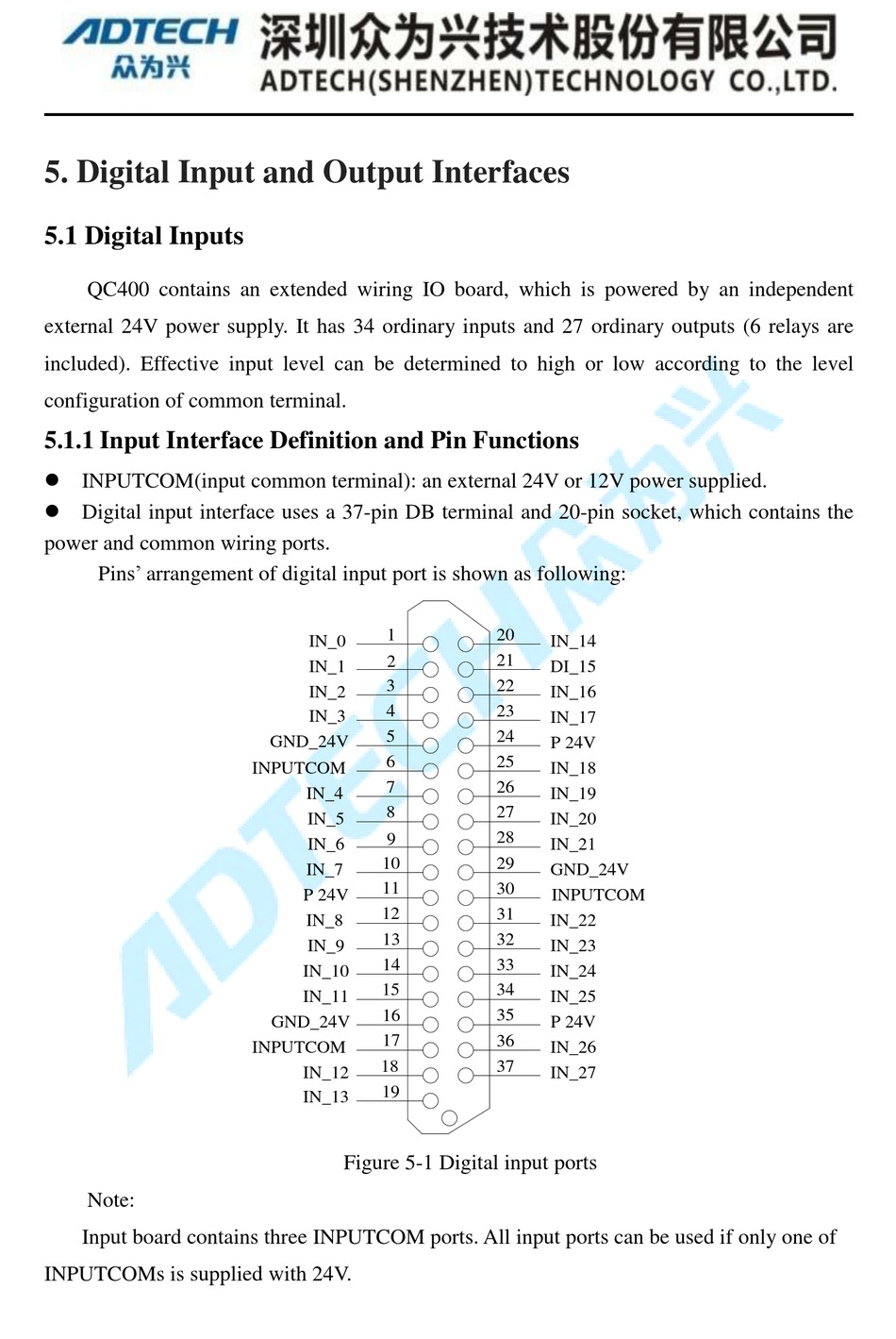

Figure 5-1 Digital input ports
20
IN_14
21
DI_15
22
IN_16
23
IN_17
24
P 24V
25
IN_18
26
IN_19
27
IN_20
28
IN_21
29
GND_24V
30
INPUTCOM
31
IN_22
32
IN_23
33
IN_24
34
IN_25
35
P 24V
36
IN_26
37
IN_27
