RECEIVER/OBSERVATION RECEIVER SIGNAL CHAIN

The ADRV9001 offers dual receive channels. With a minimum number of external components, each receive channel could build a
complete RF-to-bits signal chain which serves as RF front end for a wide range of applications. It supports both time division duplexing
(TDD) and frequency division duplexing (FDD) modes and reception of both narrowband (NB) and wideband (WB) signals up to 40
MHz. NB applications include DMR, P25 and TETRA, while WB applications are geared towards LTE transmissions. For example,
ADRV9001 supports standard sample rates of 24 kHz (typically for FM waveforms), 144 KHz and 288 KHz (typically for TETRA
signals), and 1.92 MHz, 3.84 MHz, 7.68 MHz, 15.36 MHz, 23.04 MHz, 30.72 MHz, and 61.44 MHz (typically for LTE signals). Besides
those standard rates, the ADRV9001 is also capable of supporting an almost continuous range of sample rates between 24 KHz and 61.44
MHz. Some sample rates could not be supported due to internal clocking constraints.
Rx2
Rx1
AFE
RX1A+
RX1A–
RX1B+
RX1B–
INTERNAL
OBSERVATION
Figure 94 describes the top-level structure of the ADRV9001 receivers. As shown in Figure 94, each receive path Rx1 or Rx2 contains 2
major subsystems, the Analog Front End (AFE) and the Digital Front End (DFE). The AFE subsystem contains 4 major components,
which are programmable front end attenuator, matched I and Q mixer, low pass filter (LPF) and analog-to-digital converter (ADC). The
attenuators are utilized to control the signal gain to avoid overloading the datapath when a strong interfering signal presents. It is
followed by the mixers to down convert the received signals for digitization. The output current of the mixers is further converted to
voltage and filtered by LPFs before passing to ADCs. The ADRV9001 provides two pairs of ADCs, a pair of high performance (HP)
ADCs to achieve high linearity performance and a pair of low power (LP) ADCs with slightly less linearity performance but significant
lower power consumption. This design allows for a flexible trade-off between power consumption and linearity performance.
The DFE subsystem contains a series of digital signal processing components such as sample rate decimation (DEC), dc offset correction
(DC), quadrature error correction (QEC), digital down conversion (DDC) with numerically controlled oscillator (NCO), a
programmable 128-tap FIR filter (PFIR), receiver signal strength indicator (RSSI), frequency offset correction (FOC), phase offset
correction (POC) and overload detectors. DEC is used to decimate the ADC sample rate to the desired output sample rate. DC, QEC,
PFIR, FOC and POC are used to condition the digital signals at different stages of the datapath for optimal performance. Overload
detectors are used for gain control in the datapath. RSSI provides signal power measurement to control the bit-width of the output signal.
In addition, it could be used to detect the presence of a signal in a desired frequency band. At the end of the signal chain, through
CMOS-SSI or LVDS-SSI data port, the output signal is delivered to based band processor for further processing.
The ADRV9001 supports a RF local oscillator (LO) range from 30MHz to 6GHz. RF LOs can be generated via two internal phase lock
loops (PLL) or applied externally to the part. The digital subsystem contains an optional digital mixer that is driven by a programmable
NCO. Rx LO can offset from the frequency of the desired channel and then make use of the digital mixer to down convert the signal to
baseband before being processed by baseband processor. There are several advantages to offset the Rx LO from the frequency of the
desired channel: Impairments that exist around the Rx LO, such as LO-leakage, can be avoided. The effect of flicker noise from baseband
circuits can be mitigated since the received signal is offset from dc in the analog signal path. Also, image rejection can be improved if the
Rx LO is offset enough from the desired channel, such that the image frequency lies in the attenuation region of the user's external RF
filter. IF operation could work with both NB and WB applications. Typically, when the receiver is operating in NB mode, the sensitivity
requirements for these applications demand very low noise performance, therefore, the intermediate frequency (IF) approach is
preferred. The device is capable of receiving signals offset from the carrier, as well as an IF down conversion scheme. When the receiver
is operating on a WB signal, it could utilize direct down conversion or zero IF (ZIF) (although IF approach is also available for WB
signal). In this mode the DDC will be bypassed.
Figure 95 describes the simplified transmit and receive signal path between the antenna and the ADRV9001 device. The components
between the antenna and the ADRV9001 device are external components. In the transmit path, typically, the output signal from the
HP ADC
LPF
LO1
LP ADC
0°
90° LO2
LP ADC
HP ADC
LPF

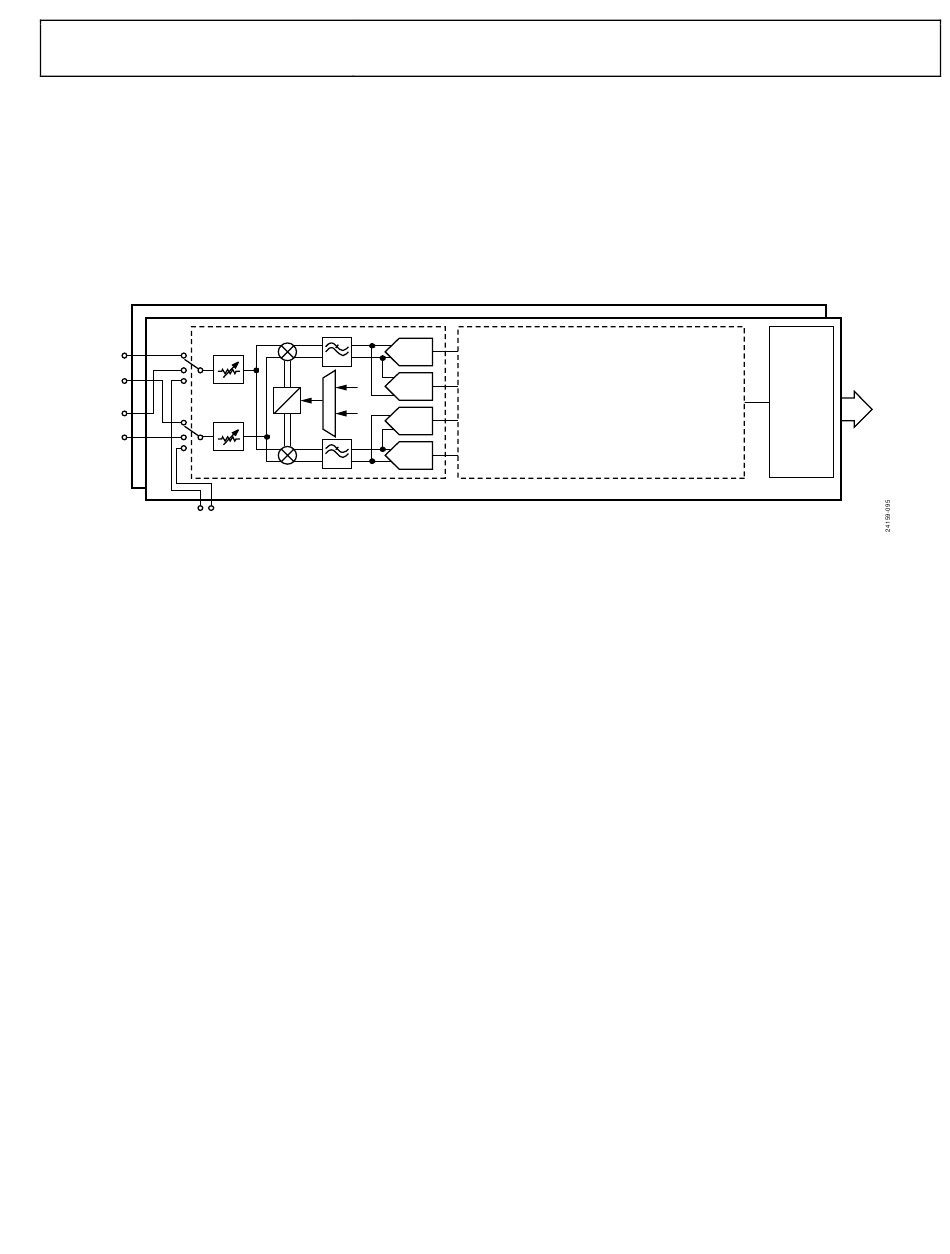

Figure 94. Top Level Structure of ADRV9001 Dual Receiver
Rev. PrA | Page 99 of 253
DFE
DIGITAL SIGNAL PROCESSING:
– NARROW/ WIDE BAND DECIMATION
– DC OFFSET CORRECTION (DC)
– QUADRATURE ERROR CORRECTION (QEC)
– NUMERICALLY CONTROLLED OSCILLATOR (NCO)
– PROGRAMMABLE FIR FILTER (pFIR)
– RECEIVER SIGNAL STRENGTH INDICATOR (RSSI)
– FREQUENCY OFFSET CORRECTION
– PHASE OFFSET CORRECTION
– OVERLOAD DETECTORS
UG-1828
DATA PORT
CMOS-SSI
TO
OR
BBP
LVDS-SSI
