For I data duration and low for Q data duration. In the case of a 16-bit data sample, RX_STROBE is high for 16 clock cycles (I data
sample) and low for 16 clock cycles (Q data sample).
The Transmit CSSI Interface
The one-lane mode transmit CSSI interface of each channel (Tx1 and Tx2) is a 4-wire digital interface consisting of:
TX_DCLK_IN: is an input clock synchronized to the data and strobe inputs.
•
TX_STROBE_IN: is an input signal indicating the first bit of the serial data sample.
•
TX_DATA_IN: is an input serial data stream.
•
TX_DCLK_OUT: is an optional output reference clock that is provided to the baseband processor to generate all the above signals,
•
the baseband processor can also use RX_DCLK_OUT as the reference clock when its clock rate is equal with Transmit SSI clock
rate.
The I and Q samples can be deserialized starting with configurable I or Q first and MSB or LSB first, Figure 26 illustrates the Transmit
CSSI interface (Tx1 and Tx2) for a 16-bit I/Q data sample with I sample and MSB first configuration.
TX_DCLK_OUT
TX_DCLK_IN
TX_STROBE_IN
TX_STROBE_IN
TX_DATA_IN
The TX_STROBE_IN signal is aligned with the first bit of the serialized data (I and Q), and can be configured to be high:
For one clock cycle at start of I and Q sample transmit. In the case a 16-bit data sample, the TX_STROBE is high for one clock cycle
•
and low for 31 clock cycles.
For I data duration and Low for Q data duration. In the case of a 16-bit data sample, TX_STROBE is high for 16 clock cycles (I data
•
sample) and low for 16 clock cycles (Q data sample).
CSSI Data Symbols Transmit and Receive
The previous sections described data transfer with I/Q format with 16bit width. When the ADRV9001 internal
modulation/demodulation is enabled (refer to the Transmitter Signal Chain and Rx Demodulator sections), the data transfer between
ADRV9001 and baseband processor would be 2 bits or 16 bits I only data ( denoted as symbol to differentiate with I/Q complex
samples). In a symbol format mode, raw data are transferred through this interface using different data size. The CSSI interface supports
three additional data formats:
2 bits of data
•
8 bits of data
•
16 bits of data
•
Data with a size of two bits could be transferred over a CSSI with an 8-bit data format with six dummy bits. The clock and strobe
behavior are similar to the I/Q format described in previous sections.
OR
I0_D15 I0_D14

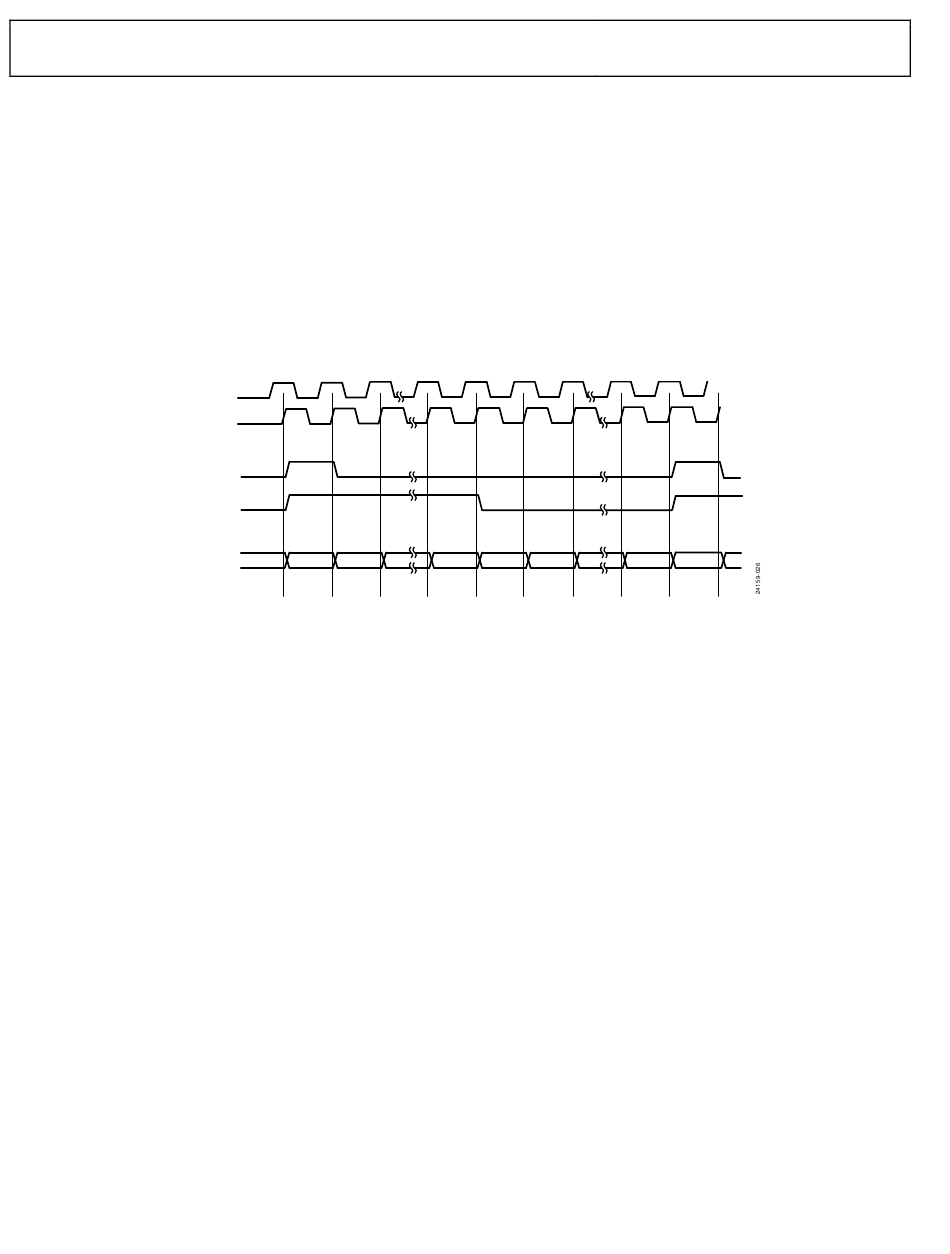

Figure 25. Transmit CSSI Timing for 16-Bit I/Q Data Sample (I and MSB First)
