USING OF MATLAB AND PYTHON
User can use Matlab and Python to initialize the system. First connect PC to the part by clicking on Connect button. Then configure the
system to the desired state. Then program. After program is successful, in the GUI click Sample Code-> Matlab / Python/C99 to
generate Matlab, Python, and C initialization code. User can then execute the generate Matlab Python or C code to bring the part to the
same desired state as GUI did. Note before executing the generated code user should Disconnect the board.
EVALUATION SYSTEM TROUBLESHOOTING
The following is a quick help guide describing what to do if the system is not operational. This guide assumes that the user followed
instructions and assembled his setup according to hardware configuration described in this document.
No LED Activity
1. Check if the board is properly powered. There should be 12V present at the J22 input, and after powering the ZYNQ platform on
(SW1 turned on) the following should be true:
a. Fan on the ZYNQ platform is activated. Ensure that fan cable is reconnected to ADRV9001 evaluation platform fan header
P702.
b. A number of green LEDs on the ZYNQ platform near SW1 are ON with no red LEDs active on the ZYNQ platform
c. ZYNQ GPIO LEDs follow the sequence described in the Hardware Operation section.
d. Two green LEDs (D801 and D901) on the ADRV9001 evaluation card should be ON.
2. If the LED sequence does not follow the described one, check jumper settings and SW11 positions on the ZYNQ platform. If
these are correct, check if the SD card is correct and properly inserted in the J30 socket. The user should use the SD card
supplied with the evaluation kit.
3. If there is still a problem and the user is certain that the ZYNQ platform is operational, contact an ADI representative for help.
LED Active but TES Reports That Hardware is Not Connected
1. Check if the Ethernet cable is properly connected between the PC used to run TES and the ZYNQ platform. LEDs on the ZYNQ
platform next to the Ethernet socket should flash when connection is active.

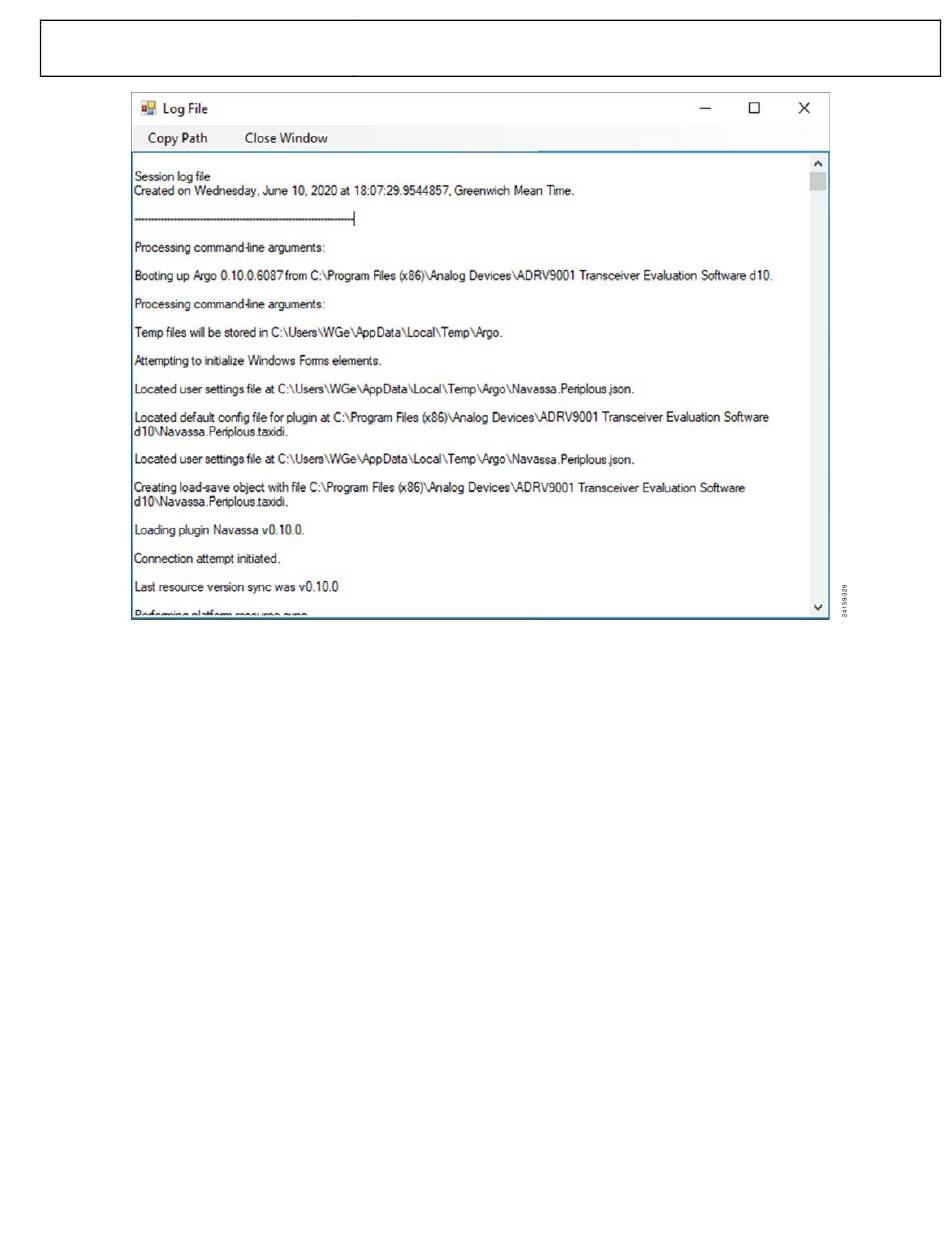

Figure 236. Log File Window
