UG-1828
After applying the interface gain, the signal is provided to the data port in 16-bit format. The baseband processor could retrieve the
interface gain through API commands to scale the power of the received signal to determine the power at the input to the device (or at
the input to an external gain element if considered part of the digital gain compensation).
Mode 2: No Digital Gain Compensation with External Interface Gain Control
This mode is similar to mode 1 except that user controls the interface gain manually. Similarly, when in NB applications, the interface
gain range could be selected from 0 to 18dB in 6 dB step size while in WB applications the interface gain is fixed at 0dB.
Mode 3: Digital Gain Compensation with Internal Interface Gain Control
In this mode gain compensation is used and the interface gain is determined internally. The device should be loaded with gain tables that
compensate for the analog front-end attenuation applied. Thus, as the analog front-end attenuation is increased, and equal amount of
digital gain is applied. The interface gain is determined by RSSI. If the power level is too high, the Slicer will shift the signal properly
before sending to the data port to avoid saturation.
As an example of how slicer works (note the following plots are only for showing the concepts which do not represent the actual
implementation), considering 3 different input signal power levels. The Power Level 1 fits a data length of 16 bit-width. The Power Level
2 is 0-6dB higher than Power Level 1which increases the bit-width by 1. The Power Level 3 is 6-12dB higher than Power Level 1 which

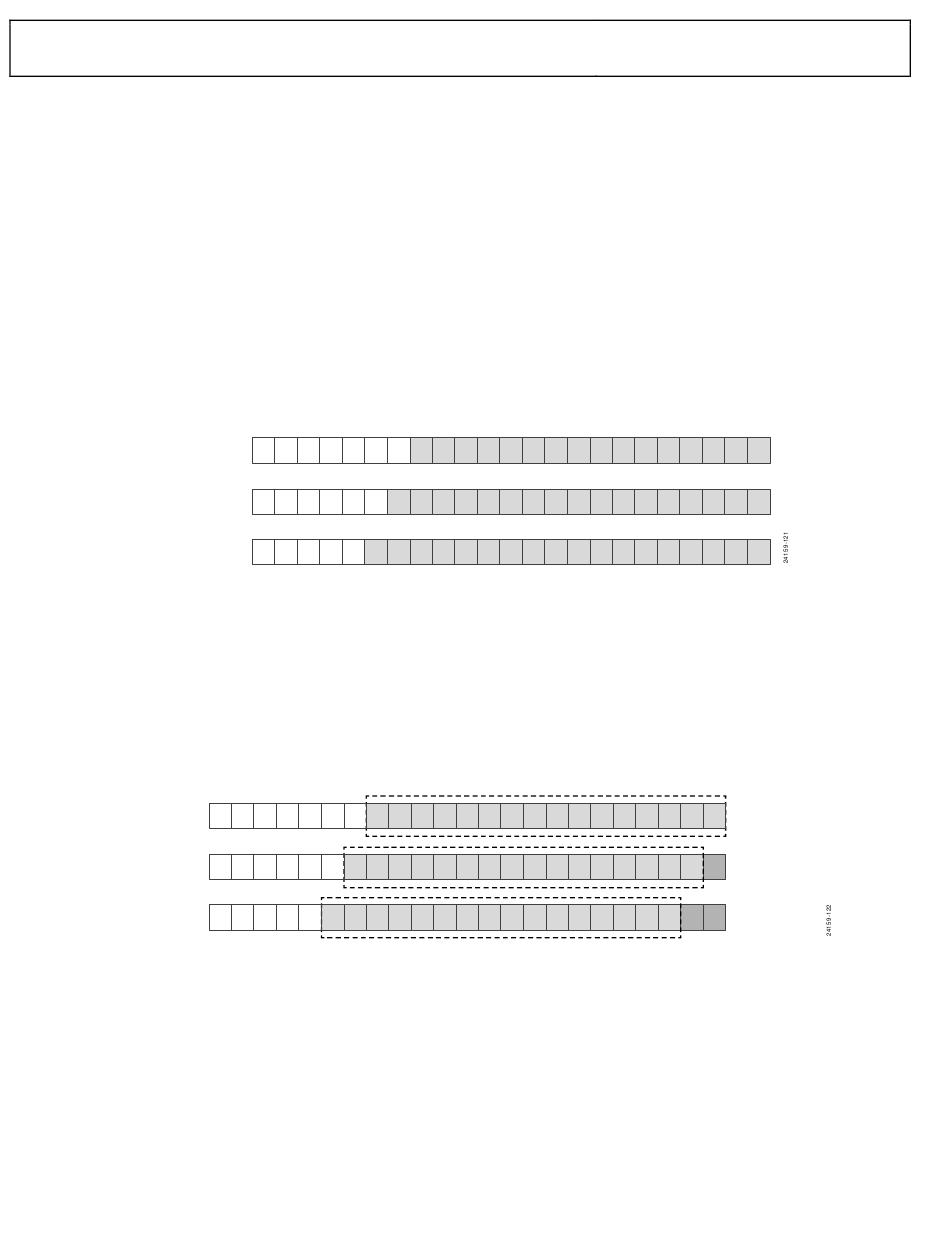

further increases bit-width by 1. Figure 120 outlines this effect, with gray boxes indicating the valid (used) bits in each case.
INPUT POWER LEVEL 1
INPUT POWER LEVEL 2
INPUT POWER LEVEL 3
The slicer is used to attenuate the data such that it can fit into the resolution of the data port. Since the output is a shifted version of the
input, the slicer can only handle gains that are in ±6 dB steps.
Figure 121 explains the slicer operation. For Power Level 1, the slicer shift value is calculated as 0 so the 16-bit output data is taken from
D15 – D0. As the power level increases, the bit-width of the signal has increased. For Power Level 2, now the bit-width is 17. The slicer
shift value becomes 1 so the 16-bit output data is taken from D16 – D1. This is equivalent to apply 6dB of attenuation by slicer which
ensures that the bit-width of the signal is 16 once more; that is, the 16 MSBs have been selected (sliced) with the LSB dropped. When the
power level further increases as Power Level 2, the signal bit-width becomes 18-bit. The slicer shift value becomes 2 so the 16-bit output
data is taken from D17 – D2, which is equivalent to apply 12 dB of attenuation by slicer or slice the 16 MSBs dropping the 2 LSBs.
INPUT POWER LEVEL 1
INPUT POWER LEVEL 2
INPUT POWER LEVEL 3
The slicer algorithm assumes a max PAR of 15dB and it adjusts the interface gain such that the measured signal power + 15 dB is less
than 0 dBFS. For NB applications, the interface gain is from -36dB to 18dB and for WB applications, the interface gain is from −36 dB to
0dB in 6 dB step size.
Similarly, the baseband processor could retrieve the interface gain through API commands to scale the power of the received signal to
determine the power at the input to the device (or at the input to an external gain element if considered part of the digital gain
compensation).
Mode 4: Digital Gain Compensation with External Interface Gain Control
This mode is similar to mode 3 except that user controls interface gain by selecting a proper value. The baseband processor could
measure the input signal power or utilize the power measurement done by RSSI in the device to determine the interface gain. Then
through API commands and the Slicer will operate in the same way as mentioned in mode 3. For NB applications, the interface gain is
D22 D21 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D22 D21 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D22 D21 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Figure 120. Bit Width of Input Signal with Increasing Power Levels
D22 D21 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D22 D21 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D22 D21 D20 D19 D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Figure 121. Slicer Bit Selection with Different Input Power Levels
Rev. PrA | Page 144 of 253
Preliminary Technical Data
SLICER SHIFT VALUE
0
1
2
