After all tabs are configured, the user must press the "Program" button in TES. This kicks off initialization programming. TES sends a
series of API commands that are executed by a dedicated Linux application on the platform. This initialization structure is passed to the
ADRV9001 API initialization functions during the initialization phase. When programming is completed, the system is fully calibrated.
With a few additional API calls, the device is ready to operate.
The TES also provides the capability of generating a MATLAB code or python (.py) script or C code which includes all high level API
initialization calls after successfully programming the device. Those automatically generated codes or scripts can be given a file name and
stored in a location of the user's choice for future use.

API INITIALIZATION SEQUENCE

As aforementioned, the initialization sequence is comprised of a serial of API calls intermixed with user-defined function calls specific to
the hardware platform. The API functions perform all the necessary tasks for device configuration, calibration and control. The
following diagram describes the state machine of the device from power up to RF enabled.
As shown in Figure 17, after power up, the device automatically enters the standby state, then the device initialization and calibration
begin. If it is successful, the device moves to the calibrated state, otherwise, it remains in standby state. Note when TES completes
programming, the device is in the calibrated state. After the device is calibrated, it needs to be further moved to the primed state, which
indicates that the device is ready for operation. Then, through SPI or PIN mode, the device can be moved to the RF enabled state by
enabling the transmit/receive channels so transmit and reception can start. Optionally, for power saving, the device can also enter the
monitoring state from the primed state. Refer to Power Saving and Monitor Mode section for details. In TES, after programming, playing
the receiver or transmitter moves the device from the calibrated state to the primed state and then to the RF enabled state.
This section mainly discusses the device initialization procedure from the standby state to the RF_ENABLED state. The related high level
API functions are discussed briefly in the following subsections. Refer to the doxygen document for details of each API function.
Note for MIMO systems with multiple inputs and outputs channels, multiple ADRV9001 devices might be involved. To synchronize
among all the devices, it requires a common device clock (DEV_CLOCK) and a multichip synchronization (MCS) signal so that all the
internally generated analog and digital clocks are aligned among all the devices. In addition, the MCS is used to synchronize the device
CALIBRATE
STANDBY
ADDITIONAL
CALIBRATIONS
CALIBRATED
UNPRIME
PRIME
RF DISABLE

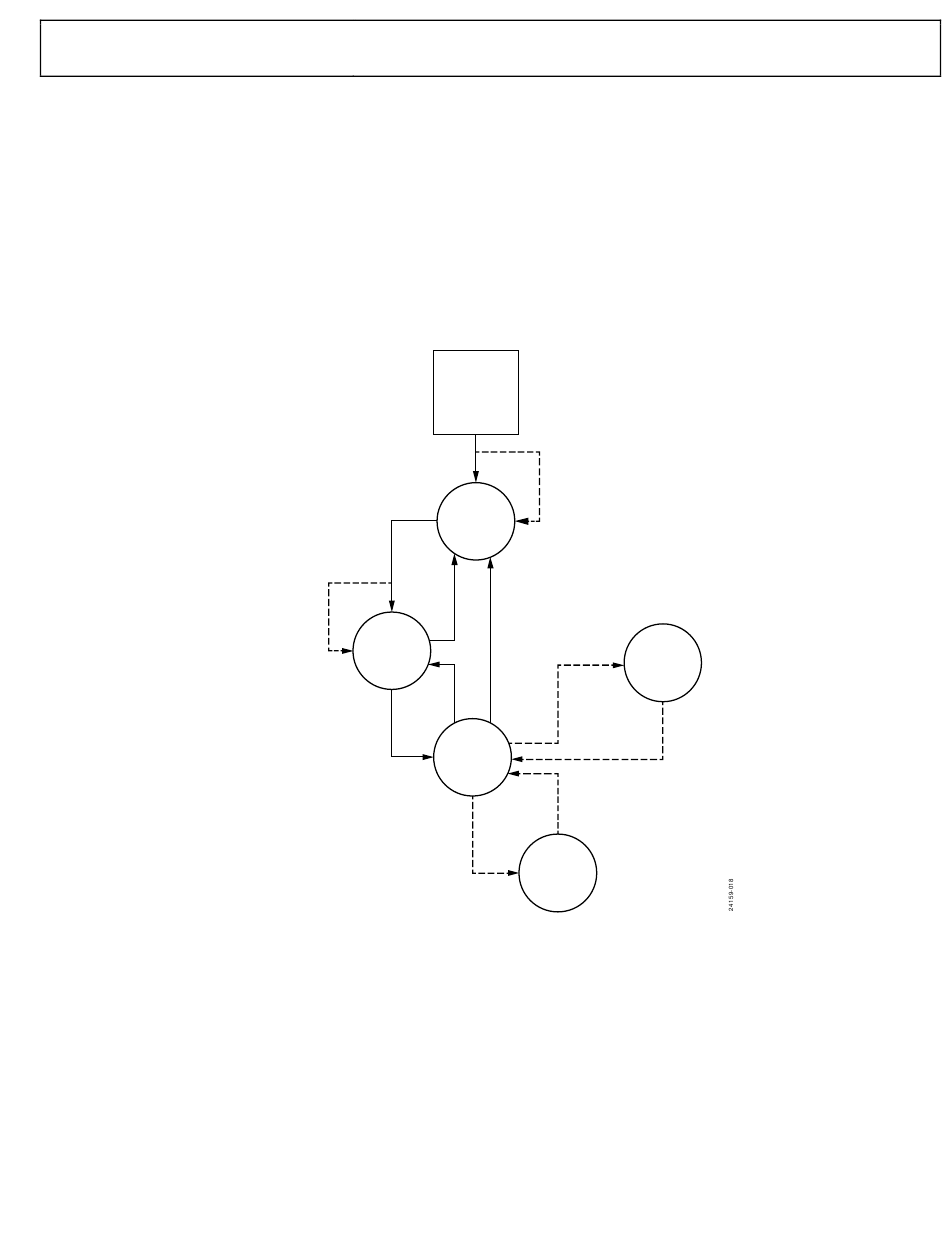

Figure 17. Device State Machine
POWER_UP
AUTO
CALIBRATE FAIL
STANDBY
STANDBY
MONITOR
ENABLE
PRIMED
RF DISABLE
RF
ENABLED
