DIGITAL PRE-DISTORTION
For more detailed information on DPD, see the Digital Predistortion section for more details.
TDD ENABLEMENT DELAYS
For more detailed information on TDD enablement delays, see the Timing Parameters Control section for more details.
AUXILIARY DAC/ADC
ADRV9001 evaluation software allows user for setting Auxiliary ADC/DAC for different control or monitoring purposes. User can go to
Auxiliary tab and enable Aux DAC/ADC here. For Aux DACs, user needs to specify a DAC code, valued from 0 ~ 4095. This effectively
sets the voltage level for that Aux DAC pin. For Aux ADCs, user can press Capture Again to observe the one time voltage value on the
Aux DAC pin.

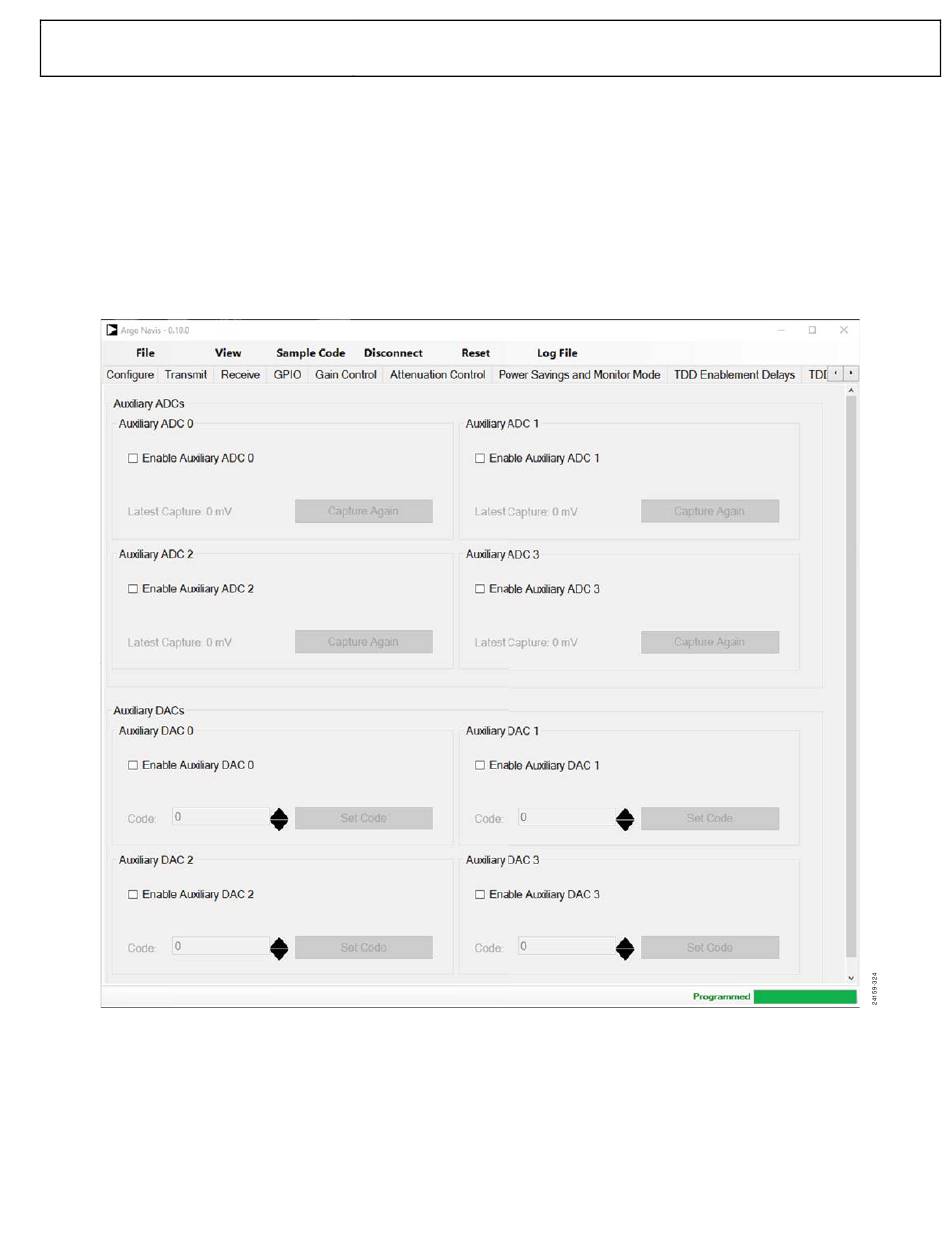

Figure 231. Auxiliary DACs and ADCs
RADIO STATE
Once board is connected, user can view/set radio state. This is under View->Radio State. Certain operations in the GUI can set radio to
certain states. User should be aware in what state the radio is operating on and control the GUI accordingly. User can also set the radio to
certain state from this window.
