UG-1828

TRANSMITTER SIGNAL CHAIN

The ADRV9001 device integrates dual direct-conversion (Zero-IF) transmitters. It supports both time division duplexing (TDD) and
frequency division duplexing (FDD) modes and is capable of transmitting both narrowband (NB) and wideband (WB) signals. It
supports a wide range of applications such as DMR, P25 and TETRA as examples of NB standards and LTE as an example of WB
standards.
In general, each transmitter consists of an independent I and Q signal path with separate digital filters, DACs, analog Tx low pass filters
(LPF) and upconversion mixers. After mixers, an analog attenuator is employed to control the Tx output signal power.
Data from baseband processor is input to the Tx signal path via synchronous serial interface (SSI). The serial data is converted to parallel
format through the deframer and then the data is processed by interpolation filters. There are several signal conditioning functions, such
as Tx gain control, power amplifier protection, power amplifier digital pre-distortion (DPD), Tx quadrature error correction (QEC) and
Tx LO leakage (LOL) handling, before the data is passed on to the DACs. The DAC outputs are filtered by LPF, upconverted to RF via
the mixer and attenuated through the analog attenuator to prepare for RF transmission. The ADRV9001 device also supports FM/FSK
modulation for some NB applications which will be discussed later.
The high level block diagram of the Tx signal path is shown in Figure 85.
ANALOG
ATTENUATOR
TX1/2

DATA INTERFACE

The Tx data interface supports several different interface rates and configurations. It has a total of 5 differential pairs (i.e. a total of 10
wires). The interface is operated single-ended in CMOS synchronous serial interface (CSSI) mode and differential in LVDS synchronous
serial interface (LSSI) mode.
The CSSI interface has one or four data wires as well as one strobe, input and output clock wire. Depending on the number of data wires,
the data interface is referred to as CSSI one-lane or CSSI four-lane, respectively. The output clock is passed to the baseband processor to
generate the data, strobe and clock signals.
In one-lane operation, the I- and Q-symbols are interleaved and sequentially transmitted over the CSSI interface. Each symbol can
consist of 2, 8, or 16 bits. The four-lane interface only supports 16-bit symbols. They are separated into two 8-bit words for each I and Q
stream, and then sent over the 4 data wires of the CSSI four-lane interface.
For the LSSI interface there is a separate data lane for the I- and Q-data. There is also a mode where the I-data and Q-data can be
interleaved and transferred over a single data lane. The bit-width of the data symbols can be 12 or 16 bits. In addition to the data lanes,
the interface has a strobe, an input clock and an optional output clock signal. The output clock signal can be used by the baseband
processor to generate the above data, clock and strobe signals.
As mentioned earlier, the ADRV9001 supports many NB and WB standards. Depending on the selected standard and the specific symbol
rate chosen via the API profile, the interface clock rate can vary significantly. For the currently supported use cases the interface rate can
range from 9.6 kHz to 983.04 MHz. Please note that the CMOS SSI interface is a slow-speed interface and is not able to cover this entire
frequency range. Please refer to
Data Interface section in this User Guide for more information.

DATAPATH

The high level datapath is shown in Figure 86, which is composed of an analog front end (AFE) and a digital front end (DFE).
LPF
MIXER
DAC
0°
90°
LPF
DAC
MIXER

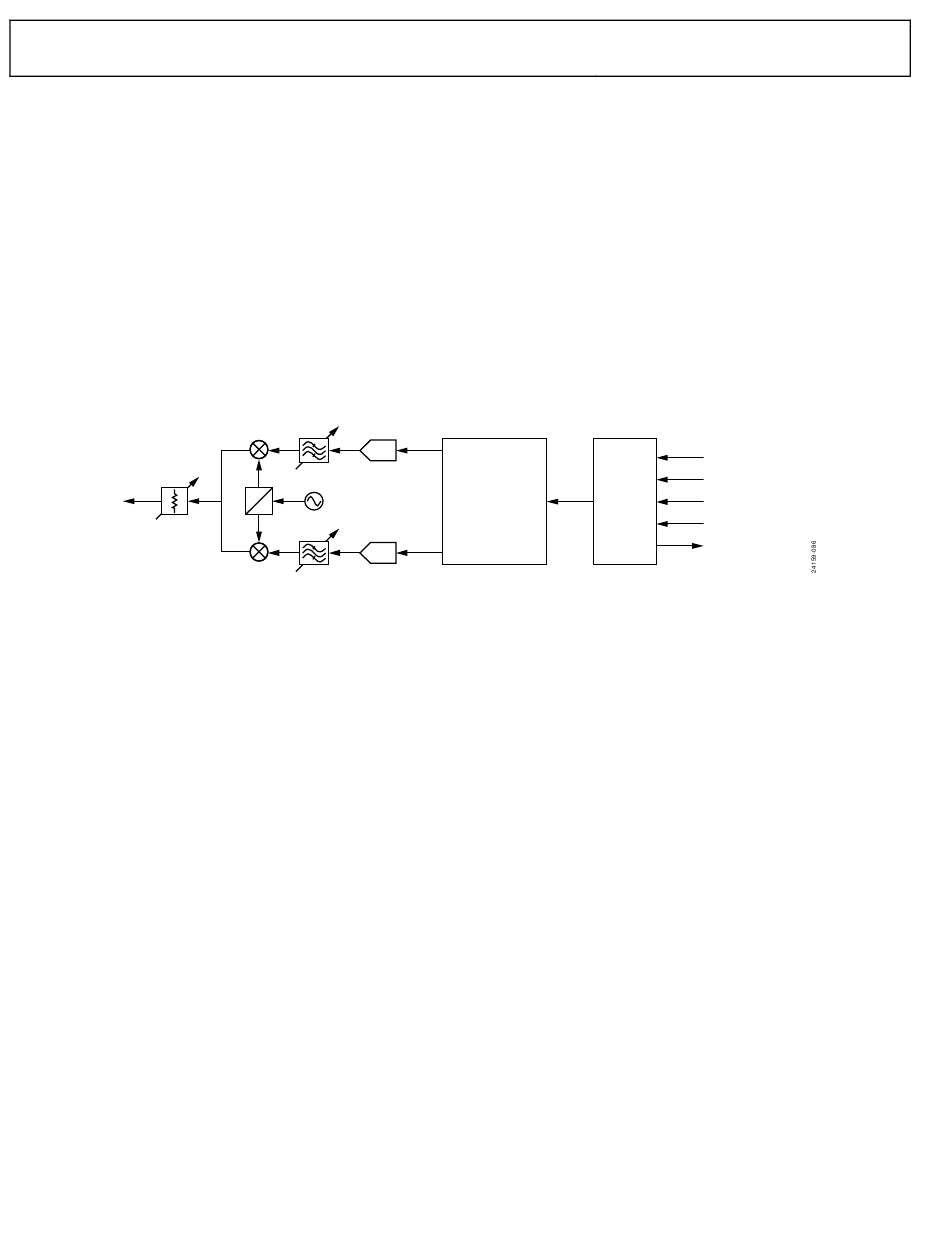

Figure 85. High Level Block Diagram of TX Signal Chain
Rev. PrA | Page 90 of 253
Preliminary Technical Data
INTERPOLATION
TX GAIN CONTROL
PA PROTECTION
SERIAL
DPD
INTERFACE
TX LOL
TX QEC
FM MODUTATION
TX1/2_IDATA_IN±
TX1/2_QDATA_IN±
TX1/2_CLK_IN±
TX1/2_STROBE±
TX1/2_DCLK_OUT±
