Configuring the Device
Contained within the Device Configuration tab are setup options for the device. In this page the user can select the following:
• Product:
• Currently only ADRV9002
• System
• TDD, FDD, TDM_FDD are supported
• Under TDD
• DMR setup is supported
• Analog FM setup is supported
• LTE setup is supported
• Configuration 1 and Configuration 3 setup is supported
• Under FDD
• Analog FM setup is supported
• LTE setup is supported
• Configuration 2 setup is supported
• Under TDM_FDD
• Tetra is supported
• Signal type, this depends on the selected system and setup
• RX supports I/Q and frequency deviation types
• TX supports I/Q, I/Q FM/FSK, Direct FM/FSK types
• Frequency Deviation
• This option is available only for TX FM type setups.

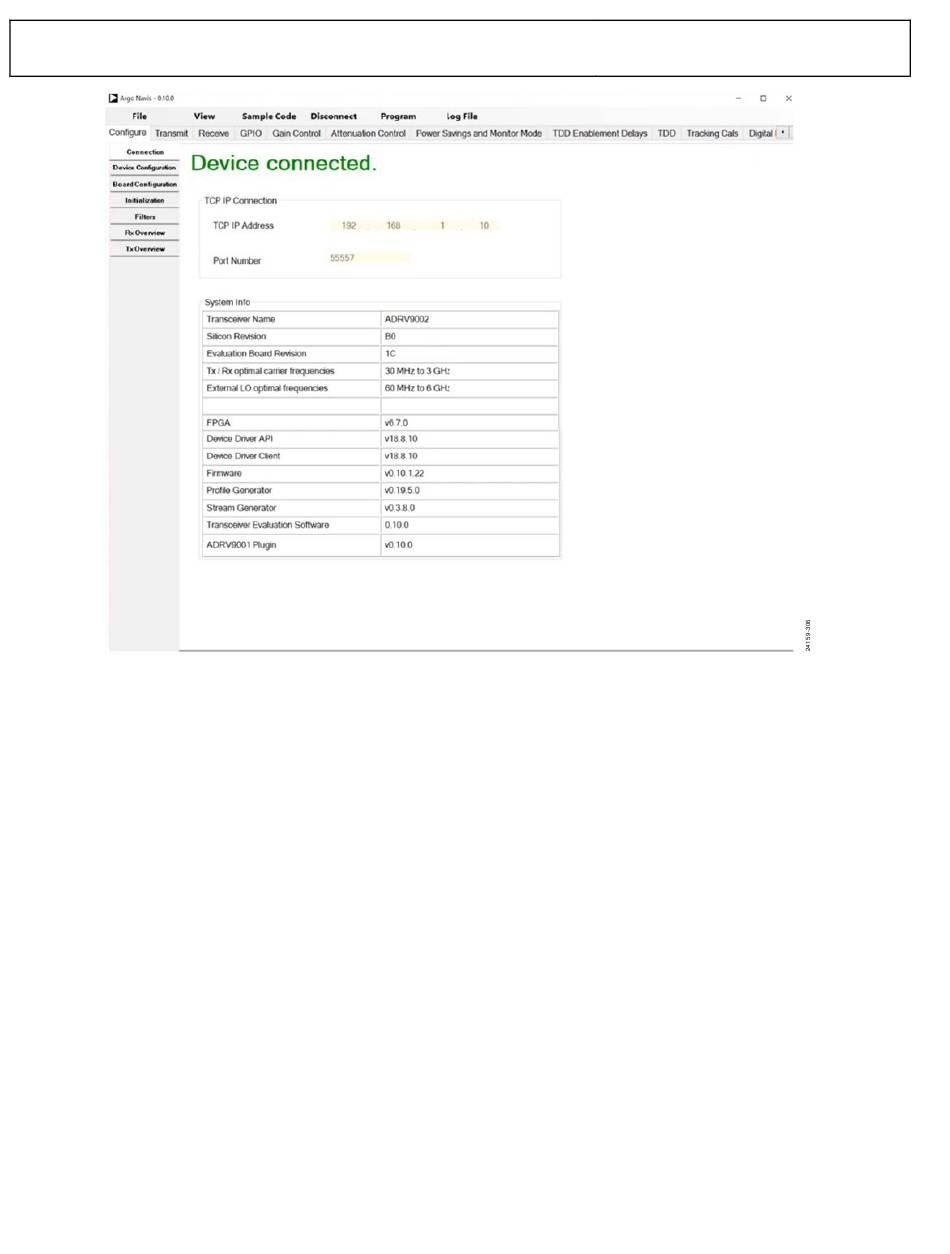

Figure 214. Setup Revision Information
is supported
