ADRV9001 EXAMPLE USE CASES

Intention of this section is to provide reader with overall idea how ADRV9001 integrated transceiver can operate as RF Front End in
different applications. Provided list is not exhaustive and there are other aplications where ADRV9001 can serve.
Each example is accompanied with table that explains main limitations and highlights what customer should look for when
implementing ADRV9001 in their end application.
ANTENNA A
A
DUPLEXER
B
ANTENNA B
A
DUPLEXER
B
RF I/O FUNCTIONALITY
Rx1A RF RECEPTION (DIVERSITY/MIMO)
Rx1B USED BY Tx1 INIT CALIBRATIONS
Rx2A RF RECEPTION (DIVERSITY/MIMO)
Rx2B USED BY Tx2 INIT CALIBRATIONS
Tx1 RF TRANSMISSION (DIVERSITY/MIMO)
Tx2 RF TRANSMISSION (DIVERSITY/MIMO)
Table 1. Constrains and Limitations in Single-Band 2T2R FDD Type Small-Cell Application
Functionality Constrains and Limitations
Receiver Signal User has to ensure that appropriate level of isolation between Rx1 and Rx2 as well as Rx to Tx is provided at system
Path level. In example above, RxB inputs are utilized only during initialization calibrations. User should ensure that
appropriate attenuation is present in line to prevent Rx being overloaded by Tx signal.
Transmistter Signal User has to ensure that appropriate level of isolation between Tx1 and Tx2 as well as Rx to Tx is provided at system
Path level.
LO Generation In FDD type Small Cell application, ADRV9001 can use its internal LO to generate RF LO1 for uplink (Rx1 and Rx2) and
RF LO2 for downlink (Tx1 and Tx2). It is also possible to use external LO inputs in this mode of operation. External LO1
operating at 2x RF LO can be used for uplink and External LO2 operating at 2x RF LO can be used for downlink.
PA
VGA
LPF
BPF FILTER
LNA
ATTENUATOR
BPF FILTER
LNA
ATTENUATOR
PA
LPF
VGA

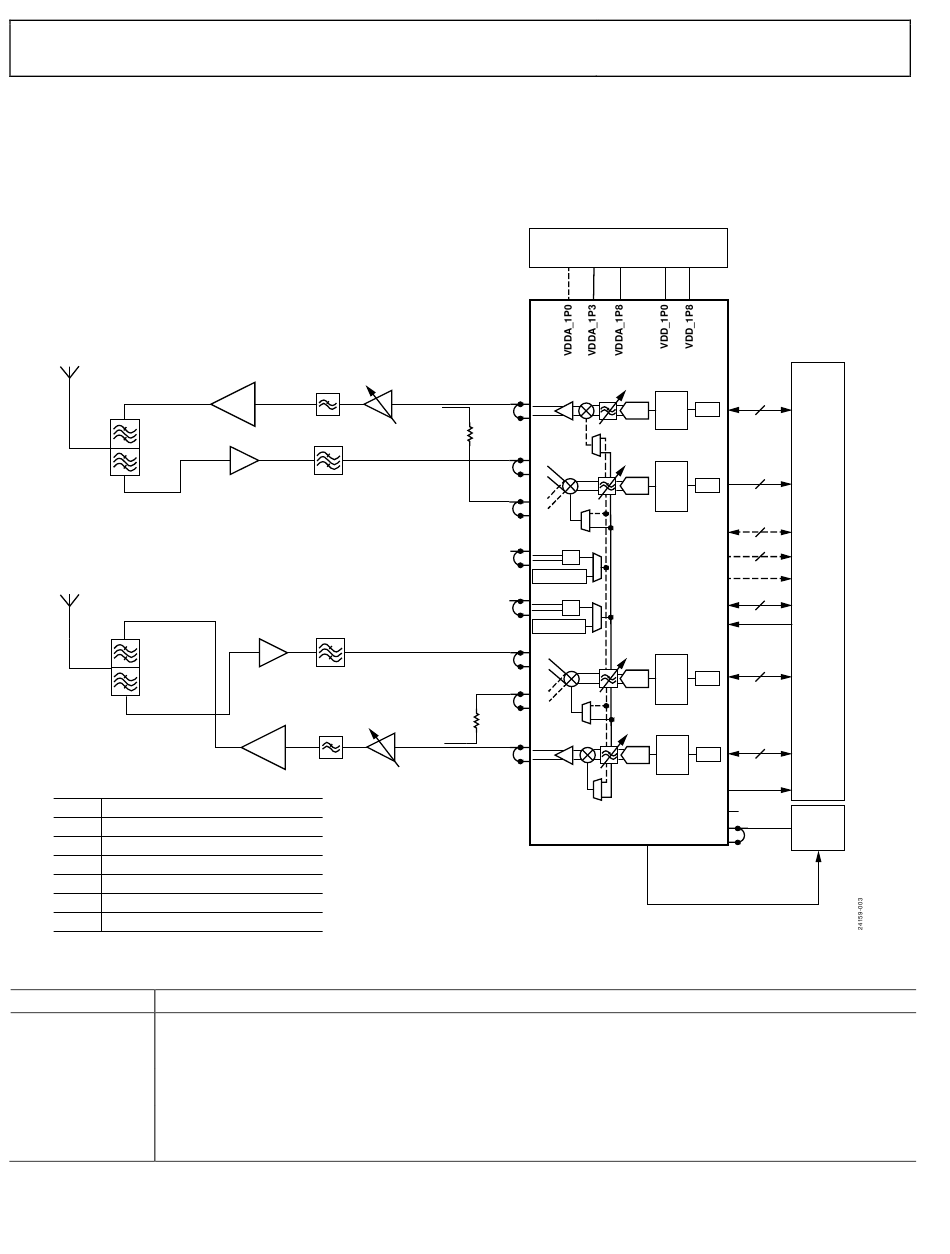

Figure 3. ADRV9001 in Single-Band 2T2R FDD Type Small Cell Application
