Other Functionalities
Under File menu there are:
Save Session and Load Session options which allow save and restore TES configuration parameters,
•
Generate Profile File provides option to create JSON type profile configuration file.
•
Force Update Platform provides option to forcibly clean up the resources in the SD card in case of error
•
Shut Down Platform which allows to safely power down Xilinx ZYNQ system,
•
Exit which exits TES software.
•
In case of some erroneous operation, TES is capable to capture its state. This functionality is provided by means of Log File functionality
that allows to capture steps that lead to error operation. File created using Log File function can be sent back to the ADI support team for
further debug.
Programming the Evaluation System
After all tabs are configured, the user must press the Program button. This starts programming and initialization of an evaluation
hardware. The TES sends a series of API commands that are executed by a dedicated Linux application that runs on the Xilinx ZYNQ
platform.
The user will see a progress bar at the bottom of the window. When programming has completed the system is ready to operate.

TRANSMITTER OPERATION

Selecting the Transmit tab opens a page as shown in Figure 225. The upper plot displays the FFT of the digital data and the lower plot
shows its time domain waveform. When multiple Tx outputs are enabled, the user can select desired data to be displayed in the Spectrum
plot using the checkboxes below the plot.

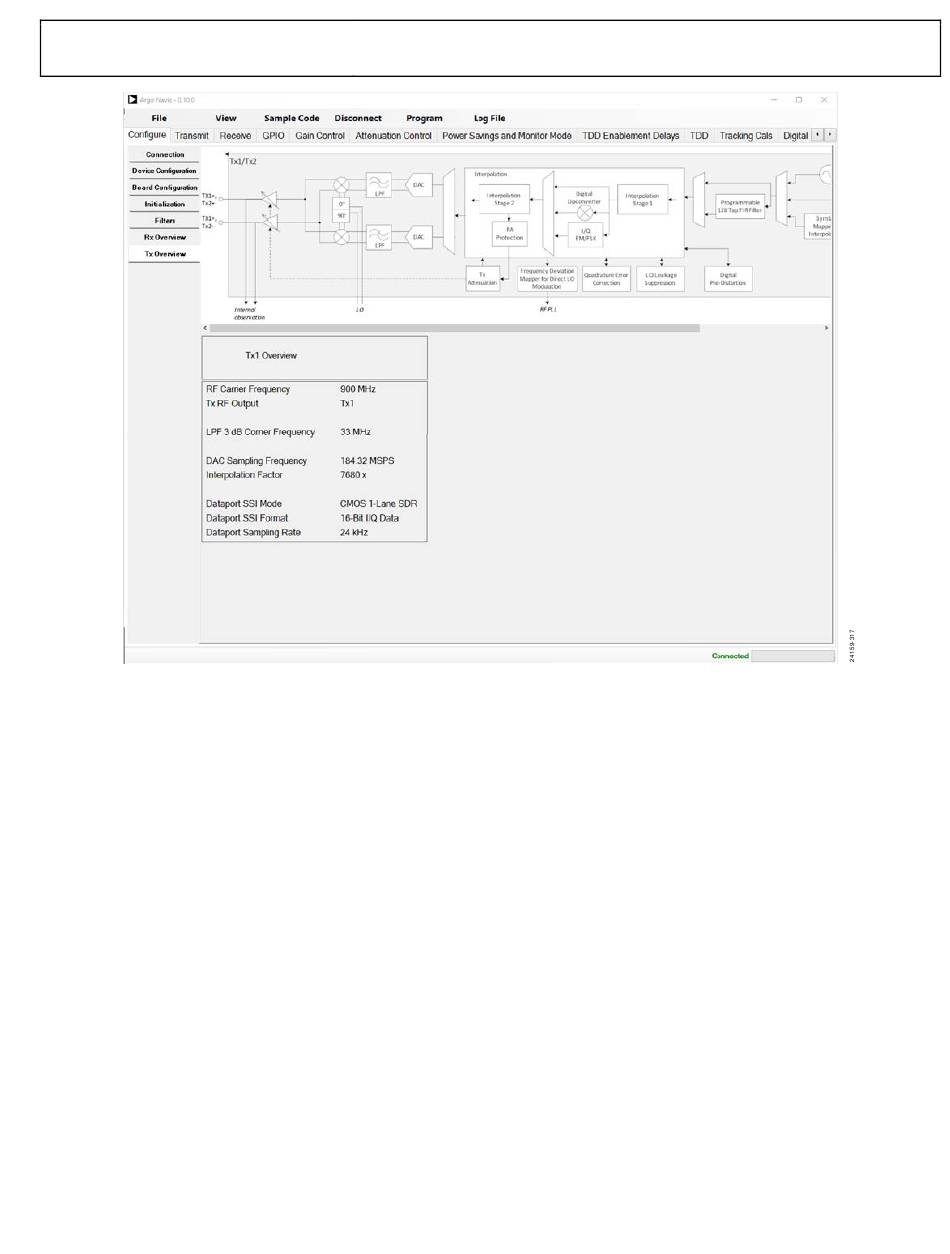

Figure 224. Tx Overview Tab
