UG-1828 Preliminary Technical Data
tabs provide user with read back of ADC/DAC sampling frequencies, analog filtering configuration, datapath sampling rate, data port
format, mode of operation and sampling rate.
In "Rx Overview" tab (Figure 223) user can also read back IF frequency and observe pFIR channel filtering characteristics and their
passband flatness. Quick zooming capability allows zooming of the passband response using the mouse cursor as well as restoring to the
full-scale plot. The TES also provides capability to export the data plotted on the graphs to an external file. This is done by right-clicking
on the graph area and selecting option "Export Data to File". Data can then be saved to file for later analyses.

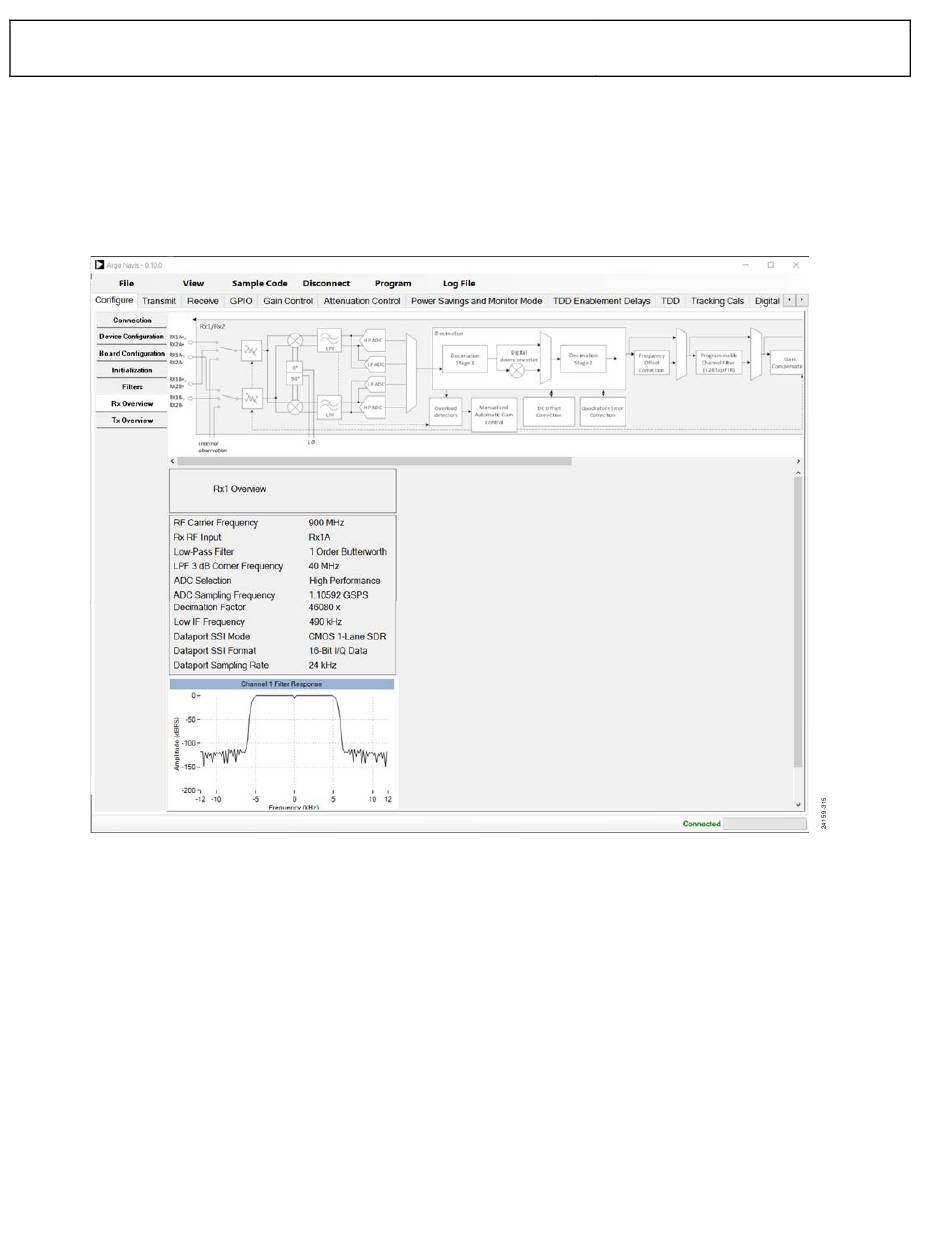

Figure 223. Rx Overview Tab
