UG-1828
ADRV9001 IN FDD TYPE REPEATER APPLICATION
ANTENNA A
A
DUPLEXER
B
ANTENNA B
A
DUPLEXER
B
RF I/O
FUNCTIONALITY
Rx1A
RECEPTION OF RF BAND B
Rx1B
USED BY Tx1 INIT CALIBRATIONS
Rx2A
RECEPTION OF RF BAND A
Rx2B
USED BY Tx2 INIT CALIBRATIONS
Tx1
TRANSMISSION OF RF BAND A
Tx2
TRANSMISSION OF RF BAND B

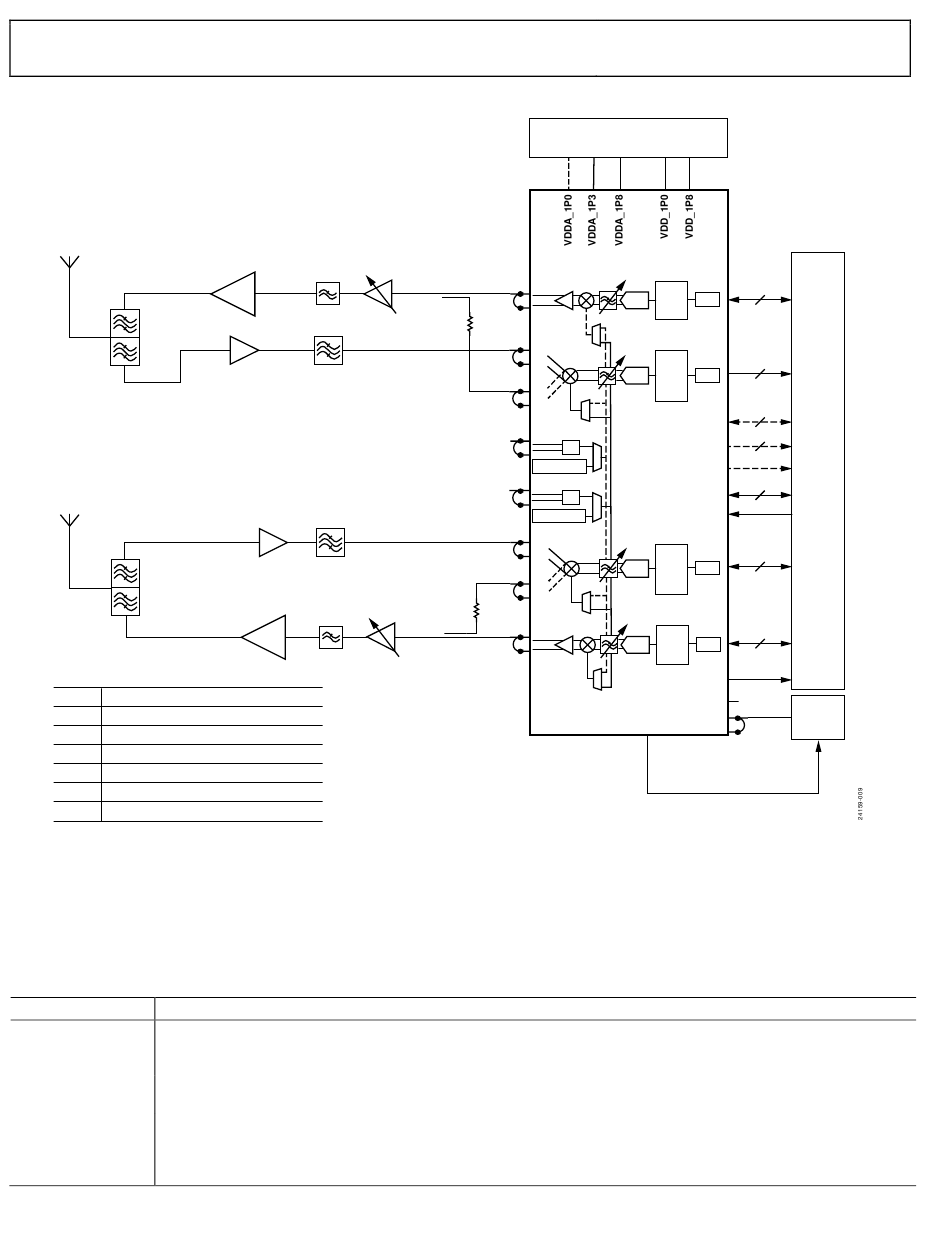

Figure 9. ADRV9001 in FDD Type Repeater Application with Baseband Processor Analyzing Traffic Data
ADRV9001 in FDD Type Repeater Application with Baseband Processor
ADRV9001 transceiver with minimum number of external components can be utilized to build complete RF-to-bits signal chain that can
serve as RF front end in repeater or frequency translator type applications. ADRV9001 internal AGC can be utilized to autonomously
monitor and set appropriate gain level for Rx signal chains. For none time critical FDD type applications control of the ADRV9001 TRx
can be done thru API commands that utilize SPI interface.
Table 7. Constrains and Limitations in FDD Type Repeater Application with Baseband Processor Analyzing Traffic Data
Functionality
Constrains and Limitations
Rx Signal Path
User has to ensure that appropriate level of isolation between Rx1 and Rx2 as well as Rx to Tx is provided at system
level. In example above, RxB inputs are utilized only during initialization calibrations. User should ensure that
appropriate attenuation is present in line to prevent Rx being overloaded by Tx signal.
Tx Signal Path
User has to ensure that appropriate level of isolation between Tx1 and Tx2 as well as Rx to Tx is provided at system
level.
LO Generation
In FDD type Repeater application, ADRV9001 can use its internal LO to generate RF LO1 for uplink (example: Tx1 and
Rx1) and RF LO2 for downlink (example: Tx2 and Rx2). It is also possible to use external LO inputs in this mode of
operation. External LO1 operating at 2x RF LO can be used for uplink and External LO2 operating at 2x RF LO can be
used for downlink.
PA
VGA
LPF
LNA
BPF FILTER
ATTENUATOR
BPF FILTER
LNA
ATTENUATOR
PA
LPF
VGA
Rev. PrA | Page 22 of 253
BALUN
Tx1
COUPLER
BALUN
Rx1A
BALUN
Rx1B
BALUN
EXT LO1
/2
RF PLL1
BALUN
EXT LO2
/2
RF PLL2
BALUN
Rx2A
BALUN
Rx2B
COUPLER
BALUN
Tx2
AGPIOs
AuxADC
Preliminary Technical Data
POWER IC
ADRV9001
Tx1
DATA
3/4/6/7/8/10
INT
DAC
QEC
SSI
LOL
Rx1
DDC
DATA
3/6/8
DEC
SSI
ADC
QEC
DC
12/16
DGPIOs
4
Rx/Tx_ENABLE
GP_INT
3/4
SPI
RESET
Rx2
DDC
DATA
3/6/8
DEC
ADC
SSI
QEC
DC
Tx2
DATA
3/4/6/7/8/10
INT
QEC
SSI
DAC
LOL
DEV_CLKL_OUT
MCS
BALUN
DEV_CLK
AuxDAC
FPGA
OR
BBIC
VCXO
