Receive Data Chain - Analog Devices ADRV9001 User Manual

Preliminary Technical Data
always for Tx2. When users are in control of the observation channel, they will be allowed to configure the ORx based on their
requirements such as the ORx gain. When the ADRV9001 device is control of the observation channel, it is responsible to configure the
observation channel properly without any user intervention.
As shown in Figure 95, each Rx has 3 inputs, one is the ILB input dedicated for receiving ILB signal. The others are Rx1A/Rx2A and
Rx1B/Rx2B inputs, one could be configured to receive RF signals and the other one to receive ELB signals.
Due to the support of a wide range of applications, user interaction with the Rx signal chain is mainly done through configuration
profiles. Based on the channel profile which includes key parameters such as bandwidth, sample rate and AGC settings, initial calibration
is performed in the device to set up the receive chain properly. When DPD is performed internally in the device, the switch between Rx
and ORx is fully determined without user interaction. Therefore, the device could support rapid switching between different RF channel
profiles with different modulation schemes and bandwidths requirements. When DPD is performed externally by baseband processor,
then baseband processor owns the entire ORx channel. It is user's responsibility to make sure there is no conflict between the DPD
operations and the Tx tracking calibrations in the device.
In the ADRV9001, a specialized "Monitor mode" exists that allows the device to autonomously poll a region of the spectrum for the
presence of a signal, while in a low power state. In this mode, the chip continuously cycles through sleep-detect-sleep states controlled by
an internal state machine. Power savings are achieved by ensuring that the sleep duty cycle is greater than the "detect" duty cycle. In the
"sleep" state, the chip is in a minimal power consumption configuration where few functions are enabled. After a pre-determined period,
the chip enters the "detect" state. In this state, the chip enables a receiver and performs a signal detect over a bandwidth and at a Rx LO
frequency determined by the user. If a signal is detected, the "Monitor Mode" state machine exits its cycle and normal signal reception
will resume. If no signal is detected, the chip resumes its sleep-detect-sleep cycle. The sleep-detect duty cycle and durations, power
measurement threshold, and Rx LO are user-programmable, and are set before enabling "Monitor Mode". Please refer to the Rx Monitor
Mode section in the User Guide for more details.
The ADRV9001 provides users with various levels of power control. Power scaling on individual analog signal path blocks can be
performed to trade-off power and performance. In addition, enabling and disabling various blocks in TDD Rx and Tx frames to reduce
power could be customized, at the expense of Rx/Tx or Tx/Rx turn-around time. See the Power Saving and Monitor Mode section for
more information.
Receive Data Chain, AFE Components, Digital Front End Components, and Receive Data Chain API Programming
The following sections provide topical information regarding:
Receive data chain: this section describes how the analog and digital components are used at the different stages of the receiver chain
•
to convert RF signals to bits at the desired sample rate for further baseband processor processing.
Analog front-end components: this section discusses each major AFE component and its functionality.
•
Digital front-end components: this section discusses each major DFE component and its functionality.
•
Receive data chain API programming: this section outlines the API programming capabilities of Rx data chain for user interactions.
•

RECEIVE DATA CHAIN

The ADRV9001 supports both NB and WB applications in a common design. Figure 96 describes the block diagram of the entire Rx data
chain, which is composed of AFE and DFE. As mentioned earlier, the AFE includes a front end attenuator which controls the received
RF signal level, mixer for RF to baseband (or IF) down-conversion, low pass filter and a pair of HP and LP ADCs. The LPF has a
programmable bandwidth from about 5MHz to 50MHz depending on the profile. Its configuration and filter characteristics are
automatically tuned internally to achieve optimal performance for different applications. In principle, the AFE design is based on WB
architecture with a very high dynamic range to absorb both desired signal and interference without distortion. Therefore, in such a
design, very little channelization or blocker filtering is needed through LPF since the HP and LP ADC can simultaneously absorb weak
signals and large blockers. Blocker suppression and channelization are then achieved efficiently in the digital signal path. After ADC, the
digital output signal will be further processed through multiple stages in DFE.
AFE
Rx1
RX1A+, HP ADC
RX2A+ LPF
RX1A–,
RX2A– LP ADC
0°
RX1B+, 90°
RX2B+
LP ADC
RX1B–,
RX2B–
HP ADC
LPF
INTERNAL LO
OBSERVATION
DFE
DECIMATION
DIGITAL
DOWN
DECIMATION DECIMATION
CONVERTER
STAGE 1 STAGE 2
QUADRATURE
OVERLOAD MANUAL AND
DC OFFSET
DETECTORS AUTOMATIC ERROR
CORRECTION
GAIN CONTROL CORRECTION

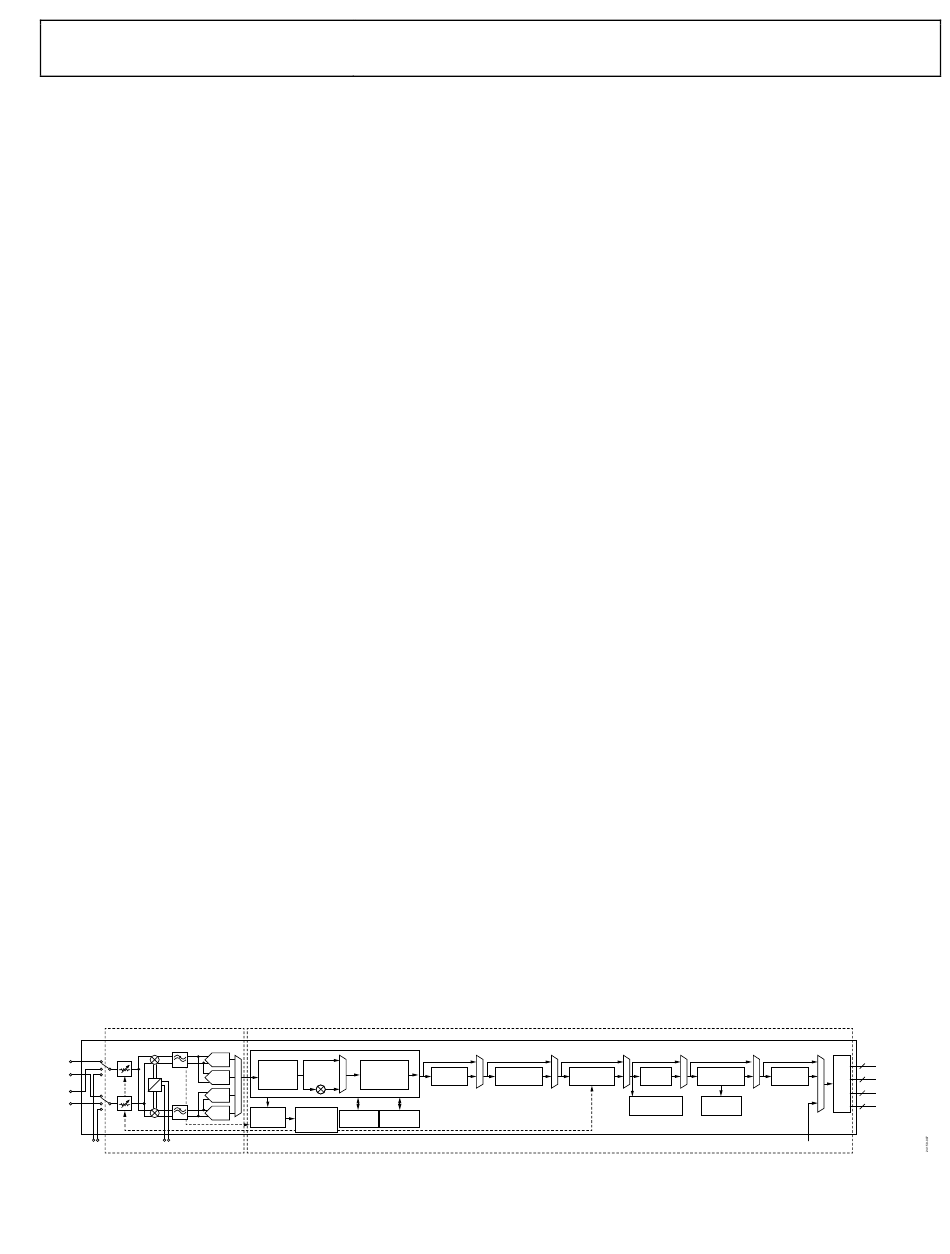

Figure 96. Rx Signal Chain Block Diagram
Rev. PrA | Page 101 of 253
FREQUENCY PROGRAMMABLE
GAIN
OFFSET CHANNEL FILTER
COMPENSATION
CORRECTION (128 TAP FIR)
NARROW PHASE
INTERFACE
BAND FSK OFFSET
GAIN
DISCRIMINATION CORRECTION
RECEIVER SIGNAL
DMR SYNC
STRENGTH
DETECTION
INDICATOR
LOOPBACK
UG-1828
2
RX1/2_DCLK_OUT±
2
DATA
RX1/2_STROBE_OUT±
PORT 2
RX1/2_IDATA_OUT±
2
RX1/2_QDATA_OUT±
