Preliminary Technical Data
UG-1828
POWER SAVINGS AND MONITOR MODE
User can specify certain power saving mode in this tab. We divide power saving modes to two categories. System Power Savings and
Channel Power Savings. System Power Savings include CLKPLL, LDO and ARM power down. These can be controlled via DGPIO pins.
Channel Power Savings include RF PLL and LDO power down. These can be controlled via DGPIO pins, as well as using Tx/Rx enables.
Monitor mode can be enabled if Monitor Mode Wakeup Pin is set. Monitor mode window can be brought up from View->Monitor
Mode. If Monitor Mode Wakeup Pin is unassigned, then monitor mode is not enabled.

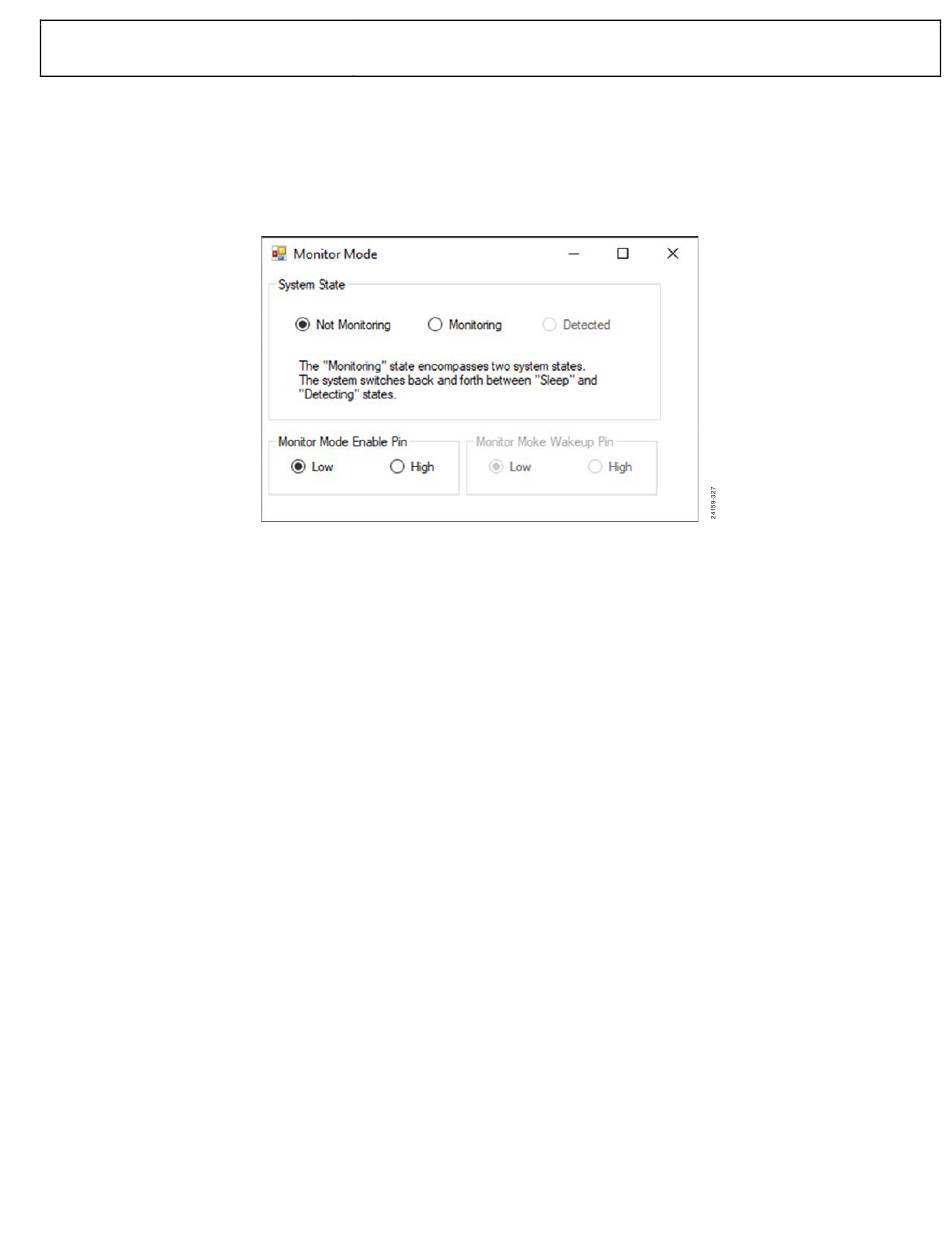

Figure 234. Monitor Mode Window
Rev. PrA | Page 249 of 253
