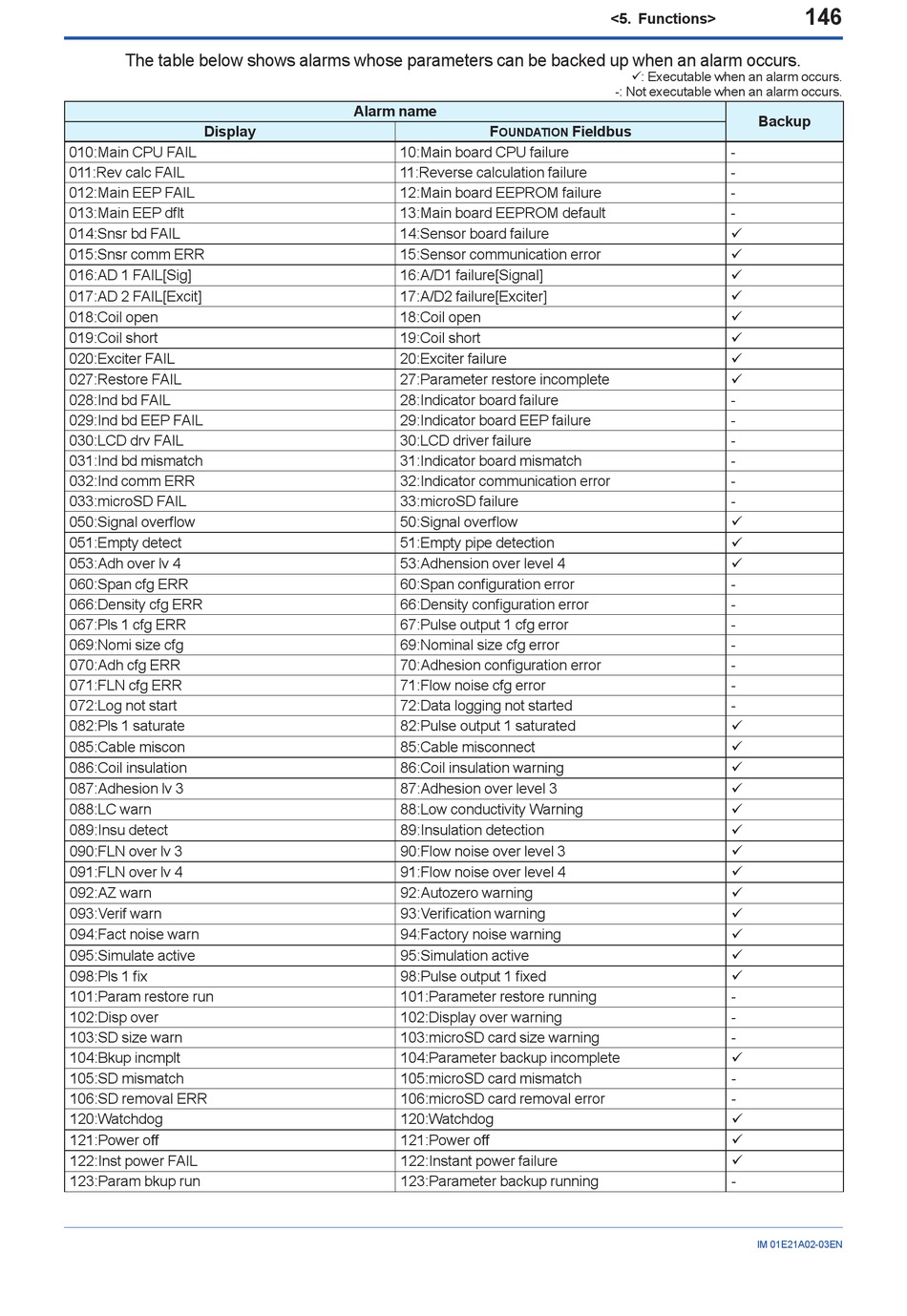

The table below shows alarms whose parameters can be backed up when an alarm occurs.
„
Display
010:Main CPU FAIL
011:Rev calc FAIL
012:Main EEP FAIL
013:Main EEP dflt
014:Snsr bd FAIL
015:Snsr comm ERR
016:AD 1 FAIL[Sig]
017:AD 2 FAIL[Excit]
018:Coil open
019:Coil short
020:Exciter FAIL
027:Restore FAIL
028:Ind bd FAIL
029:Ind bd EEP FAIL
030:LCD drv FAIL
031:Ind bd mismatch
032:Ind comm ERR
033:microSD FAIL
050:Signal overflow
051:Empty detect
053:Adh over lv 4
060:Span cfg ERR
066:Density cfg ERR
067:Pls 1 cfg ERR
069:Nomi size cfg
070:Adh cfg ERR
071:FLN cfg ERR
072:Log not start
082:Pls 1 saturate
085:Cable miscon
086:Coil insulation
087:Adhesion lv 3
088:LC warn
089:Insu detect
090:FLN over lv 3
091:FLN over lv 4
092:AZ warn
093:Verif warn
094:Fact noise warn
095:Simulate active
098:Pls 1 fix
101:Param restore run
102:Disp over
103:SD size warn
104:Bkup incmplt
105:SD mismatch
106:SD removal ERR
120:Watchdog
121:Power off
122:Inst power FAIL
123:Param bkup run
Alarm name
F
OUNDATION
10:Main board CPU failure
11:Reverse calculation failure
12:Main board EEPROM failure
13:Main board EEPROM default
14:Sensor board failure
15:Sensor communication error
16:A/D1 failure[Signal]
17:A/D2 failure[Exciter]
18:Coil open
19:Coil short
20:Exciter failure
27:Parameter restore incomplete
28:Indicator board failure
29:Indicator board EEP failure
30:LCD driver failure
31:Indicator board mismatch
32:Indicator communication error
33:microSD failure
50:Signal overflow
51:Empty pipe detection
53:Adhension over level 4
60:Span configuration error
66:Density configuration error
67:Pulse output 1 cfg error
69:Nominal size cfg error
70:Adhesion configuration error
71:Flow noise cfg error
72:Data logging not started
82:Pulse output 1 saturated
85:Cable misconnect
86:Coil insulation warning
87:Adhesion over level 3
88:Low conductivity Warning
89:Insulation detection
90:Flow noise over level 3
91:Flow noise over level 4
92:Autozero warning
93:Verification warning
94:Factory noise warning
95:Simulation active
98:Pulse output 1 fixed
101:Parameter restore running
102:Display over warning
103:microSD card size warning
104:Parameter backup incomplete
105:microSD card mismatch
106:microSD card removal error
120:Watchdog
121:Power off
122:Instant power failure
123:Parameter backup running
<5. Functions>
: Executable when an alarm occurs.
-: Not executable when an alarm occurs.
Fieldbus
-
-
-
-








-
-
-
-
-
-



-
-
-
-
-
-
-













-
-
-

-
-



-
146
Backup
IM 01E21A02-03EN
