3.14 Parameters: 13-** Smart Logic Control

3.14.1 Prog. Features
Smart Logic Control (SLC) is essentially a sequence of user-
3 3
defined actions (see 13-52 SL Controller Action [x]) executed
by the SLC when the associated user-defined event (see
13-51 SL Controller Event [x]) is evaluated as TRUE by the
SLC.
The condition for an event can be a particular status or
that the output from a Logic Rule or a Comparator
Operand becomes TRUE. That leads to an associated action
as illustrated:
Par. 13-51
SL Controller Event
Running
Warning
Torque limit
Digital input X 30/2
. . .
Par. 13-43
Logic Rule Operator 2
. . .
. . .
Par. 13-43
Comparator Operator
=
TRUE longer than..
. . .
. . .

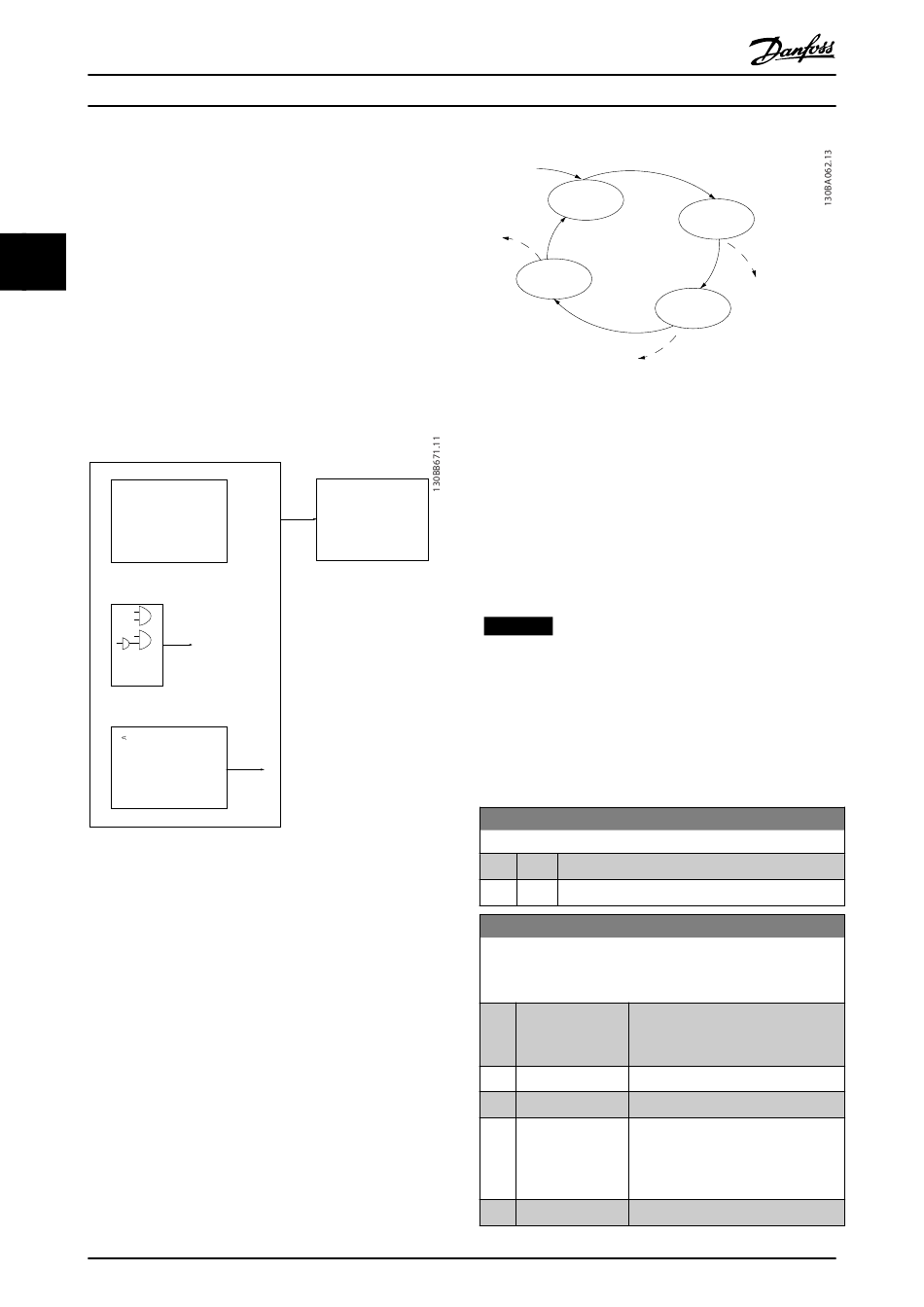

Illustration 3.47 Smart Logic Control (SLC)
Events and actions are each numbered and linked in pairs
(states). This means that when event [0] is fulfilled (attains
the value TRUE), action [0] is executed. After this, the
conditions of event [1] are evaluated and if evaluated
TRUE, action [1] is executed and so on. Only one event is
evaluated at any time. If an event is evaluated as FALSE,
nothing happens (in the SLC) during the current scan
interval and no other events are evaluated. This means that
when the SLC starts, it evaluates event [0] (and only event
[0]) each scan interval. Only when event [0] is evaluated
TRUE, the SLC executes action [0] and starts evaluating
event [1]. It is possible to programme from 1 to 20 events
and actions.
When the last event/action has been executed, the
sequence starts over again from event [0]/action [0].
Illustration 3.48 shows an example with 3 event/actions:
116
®
VLT AutomationDrive FC 301/302 Programming Guide
Illustration 3.48 Events and Actions
Starting and stopping the SLC:
Par. 13-51
Starting and stopping the SLC can be done by selecting [1]
SL Controller Action
On or [0] Off in 13-00 SL Controller Mode. The SLC always
starts in state 0 (where it evaluates event [0]). The SLC
Coast
starts when the Start Event (defined in 13-01 Start Event) is
Start timer
Set Do X low
evaluated as TRUE (provided that [1] On is selected in
Select set-up 2
. . . 13-00 SL Controller Mode). The SLC stops when the Stop
Event (13-02 Stop Event) is TRUE. 13-03 Reset SLC resets all
SLC parameters and start programming from scratch.
NOTICE
SLC is only active in AUTO mode, not Hand On mode
3.14.2 13-0* SLC Settings
Use the SLC settings to activate, deactivate and reset the
Smart Logic Control sequence. The logic functions and
comparators are always running in the background, which
opens for separate control of digital inputs and outputs.
13-00 SL Controller Mode
Option:
[0]
[1]
13-01 Start Event
Select the boolean (TRUE or FALSE) input to activate Smart Logic
Control.
Option:
[0]
[1]
[2]
[3]
[4]
MG33MH02 - Rev. 2013-09-30
Start
event P13-01
State 1
Event 1/
Action 1
Stop
event P13-02
State 4
Event 4/
Action 4
Stop
event P13-02
Function:
Off Disables the Smart Logic Controller.
On Enables the Smart Logic Controller.
Function:
False Select the boolean (TRUE or FALSE)
input to activate Smart Logic Control.
Enters the fixed value - FALSE
True Enters the fixed value - TRUE.
Running The motor is running.
In range The motor is running within the
programmed current and speed
ranges set in 4-50 Warning Current
Low to 4-53 Warning Speed High.
On reference The motor is running on reference.
State 2
Event 2/
Action 2
Stop
event P13-02
State 3
Event 3/
Action 3
