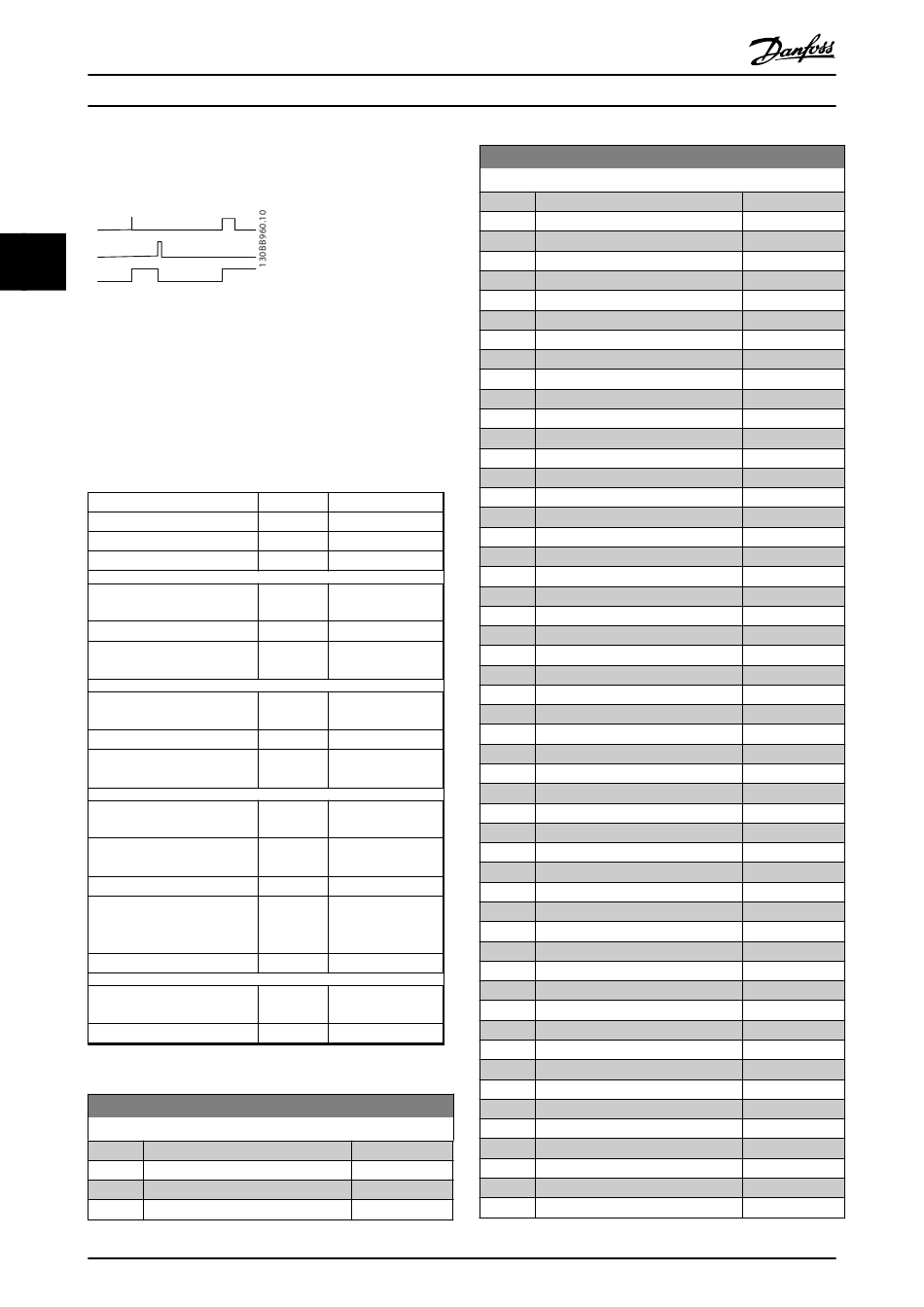

2 parameters are used and the output can be used in the
logic rules and as events.
S
3 3
R
Flip Flop Output
Illustration 3.51 Flip Flop Outputs
The 2 operators can be selected from a long list. As a
special case, the same digital input can be used as both
Set and Reset, making it possible to use the same digital
input as start/stop. The following settings can be used to
set up the same digital input as start/stop (example given
with DI32 but is not a requirement).
Parameter
13-00 SL Controller Mode
13-01 Start Event
13-02 Stop Event
13-40 Logic Rule Boolean 1 [0]
13-42 Logic Rule Boolean 2 [0] [2] Running
13-41 Logic Rule Operator 1
[0]
13-40 Logic Rule Boolean 1 [1]
13-42 Logic Rule Boolean 2 [1] [2] Running
13-41 Logic Rule Operator 1
[1]
13-15 RS-FF Operand S [0]
13-16 RS-FF Operand R [0]
13-51 SL Controller Event [0]
13-52 SL Controller Action [0]
13-51 SL Controller Event [1]
13-52 SL Controller Action [1]
Table 3.22 Operators
13-15 RS-FF Operand S
Option:
[0] False
[1] True
[2] Running
[3] In range
122
®
VLT AutomationDrive FC 301/302 Programming Guide
Setting Notes
On
TRUE
FALSE
[37] Digital
Input DI32
[3] AND
NOT
[37] Digital
Input DI32
[1] AND
[26] Output from 13-41
Logicrule 0 [0]
[27] Output from 13-41
Logicrule 1 [1]
Output from
[94] RS
evaluating 13-15
Flipflop 0
and 13-16
[22] Run
[27]
Logicrule 1
[24] Stop
Function:
MG33MH02 - Rev. 2013-09-30
13-15 RS-FF Operand S
Option:
[4] On reference
[5] Torque limit
[6] Current Limit
[7] Out of current range
[8] Below I low
[9] Above I high
[10] Out of speed range
[11] Below speed low
[12] Above speed high
[13] Out of feedb. range
[14] Below feedb. low
[15] Above feedb. high
[16] Thermal warning
[17] Mains out of range
[18] Reversing
[19] Warning
[20] Alarm (trip)
[21] Alarm (trip lock)
[22] Comparator 0
[23] Comparator 1
[24] Comparator 2
[25] Comparator 3
[26] Logic rule 0
[27] Logic rule 1
[28] Logic rule 2
[29] Logic rule 3
[30] SL Time-out 0
[31] SL Time-out 1
[32] SL Time-out 2
[33] Digital input DI18
[34] Digital input DI19
[35] Digital input DI27
[36] Digital input DI29
[37] Digital input DI32
[38] Digital input DI33
[39] Start command
[40] Drive stopped
[41] Reset Trip
[42] Auto-reset Trip
[43] Ok key
[44] Reset key
[45] Left key
[46] Right key
[47] Up key
[48] Down key
[50] Comparator 4
[51] Comparator 5
[60] Logic rule 4
[61] Logic rule 5
[70] SL Time-out 3
[71] SL Time-out 4
[72] SL Time-out 5
