Parameter Descriptions
0-20 Display Line 1.1 Small
Option:
[9914] Paramdb requests in
queue
[9917] tCon1 time
3 3
[9918] tCon2 time
[9919] Time Optimize
Measure
[9920] HS Temp. (PC1)
[9921] HS Temp. (PC2)
[9922] HS Temp. (PC3)
[9923] HS Temp. (PC4)
[9924] HS Temp. (PC5)
[9925] HS Temp. (PC6)
[9926] HS Temp. (PC7)
[9927] HS Temp. (PC8)
[9951] PC Debug 0
[9952] PC Debug 1
[9953] PC Debug 2
[9954] PC Debug 3
[9955] PC Debug 4
[9956] Fan 1 Feedback
[9957] Fan 2 Feedback
[9958] PC Auxiliary Temp
[9959] Power Card Temp.
[9961] FP Debug 0
[9962] FP Debug 1
[9963] FP Debug 2
[9964] FP Debug 3
[9965] FP Debug 4
0-21 Display Line 1.2 Small
Option: Function:
[0] None Select a variable for display in line 1, middle
*
position. The options are the same as listed for
0-20 Display Line 1.1 Small.
0-22 Display Line 1.3 Small
Option:
[30120] Mains
*
Current [A]
0-23 Display Line 2 Large
Option:
[30100] Output
*
Current [A]
0-24 Display Line 3 Large
Select a variable for display in line 3.
Option:
[30121] Mains
*
Frequency
30
®
VLT AutomationDrive FC 301/302 Programming Guide
Function:
Function:
Select a variable for display in line 1, right
position. The options are the same as
listed for 0-20 Display Line 1.1 Small.
Function:
Select a variable for display in line 2. The
options are the same as listed for
0-20 Display Line 1.1 Small.
Function:
The options are the same as those
listed in 0-20 Display Line 1.1 Small.
MG33MH02 - Rev. 2013-09-30
0-25 My Personal Menu
Range: Function:
Size [0 - Define up to 50 parameters to appear in the
related 9999 ] Q1 Personal Menu, accessible via the [Quick
*
Menu] key on the LCP. The parameters will
be displayed in the Q1 Personal Menu in the
order they are programmed into this array
parameter. Delete parameters by setting the
value to '0000'.
For example, this can be used to provide
quick, simple access to just one or up to 50
parameters which require changing on a
regular basis (e.g. for plant maintenance
reasons) or by an OEM to enable simple
commissioning of their equipment.
3.2.4 0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes: *Custom Readout. Value proportional to speed
(Linear, squared or cubed depending on unit selected in
0-30 Custom Readout Unit) *Display Text. Text string stored
in a parameter.
Custom Readout
The calculated value to be displayed is based on settings
in 0-30 Custom Readout Unit, 0-31 Custom Readout Min
Value (linear only), 0-32 Custom Readout Max Value,
4-13 Motor Speed High Limit [RPM], 4-14 Motor Speed High
Limit [Hz] and actual speed.
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Linear
units only
P 0-31
0

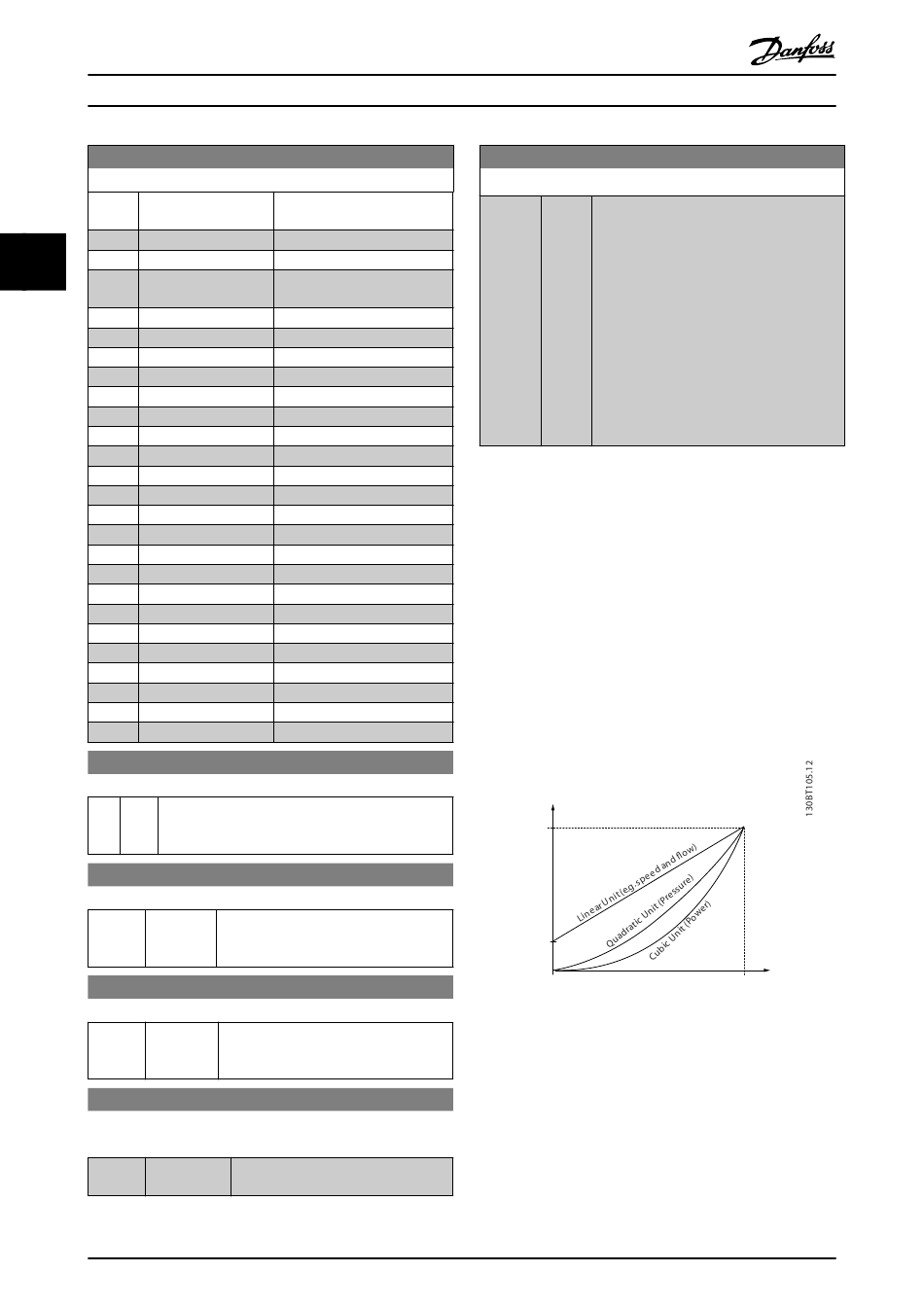

Illustration 3.4 Custom Readout
The relation depends on the type of unit selected in
0-30 Custom Readout Unit:
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
