Parameter Descriptions
5-63 Terminal 29 Pulse Output Variable
Option: Function:
[105] Torq relate to rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
[119] Torque % lim
5-65 Pulse Output Max Freq #29
Range: Function:
5000 Hz [0 - 32000 Set the maximum frequency for terminal
*
Hz] 29 corresponding to the output variable
set in 5-63 Terminal 29 Pulse Output
Variable.
5-66 Terminal X30/6 Pulse Output Variable
Select the variable for read-out on terminal X30/6.
This parameter is active when option module MCB 101 is
installed in the frequency converter.
Same options and functions as parameter group 5-6* Pulse
Outputs.
Option:
[0] No operation
[45] Bus ctrl.
[48] Bus ctrl., timeout
[51] MCO controlled
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor Current
[104] Torque rel to limit
[105] Torq relate to rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
[119] Torque % lim
5-68 Pulse Output Max Freq #X30/6
Range: Function:
Size related [0 - Select the maximum frequency on
*
32000 Hz] terminal X30/6 referring to the output
variable in 5-66 Terminal X30/6 Pulse
Output Variable.
This parameter is active when option
module MCB 101 is mounted in the
frequency converter.
3.7.7 5-7* 24 V Encoder Input
Connect the 24 V encoder to terminal 12 (24 V DC supply),
terminal 32 (Channel A), terminal 33 (Channel B), and
terminal 20 (GND). The digital inputs 32/33 are active for
®
VLT AutomationDrive FC 301/302 Programming Guide
encoder inputs when [1] 24 V encoder is selected in
1-02 Flux Motor Feedback Source and 7-00 Speed PID
Feedback Source. The encoder used is a dual channel (A
and B) 24 V type. Max input frequency: 110 kHz.

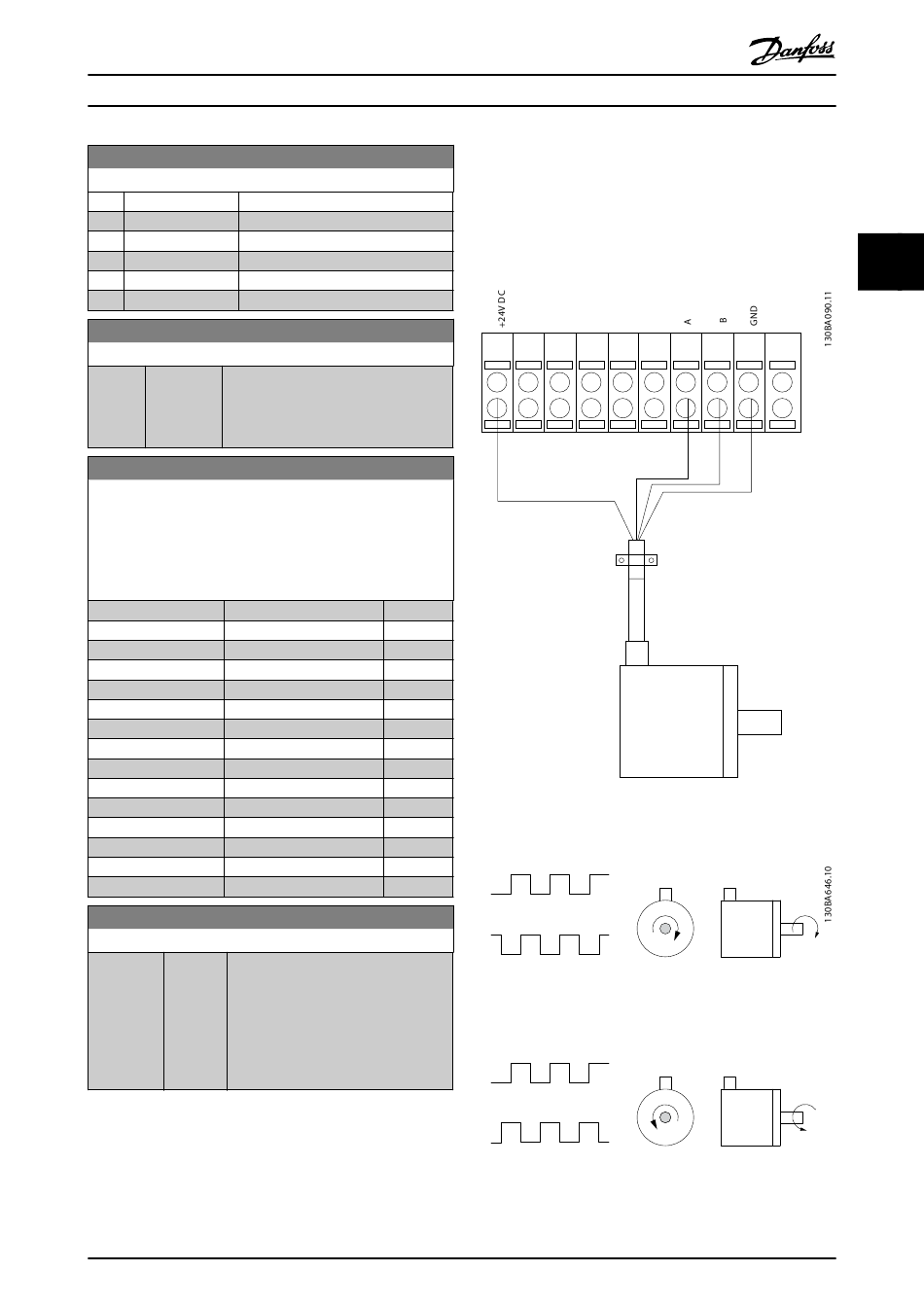

Encoder Connection to the frequency converter
24 V incremental encoder. Max. cable length 5 m.
12 13
Function:
Illustration 3.39 Encoder Connection
A
B
A
B
Illustration 3.40 Encoder Rotation Direction
MG33MH02 - Rev. 2013-09-30
18 19 27 29 32 33
24V or 10-30V encoder
CW
CCW
3 3
20 37
