Parameter Descriptions
Set-up
1
2
3
3 3
4
Set-up
1
2
3
4
Set-up
1
2
3
4
Set-up
1
2
3
4

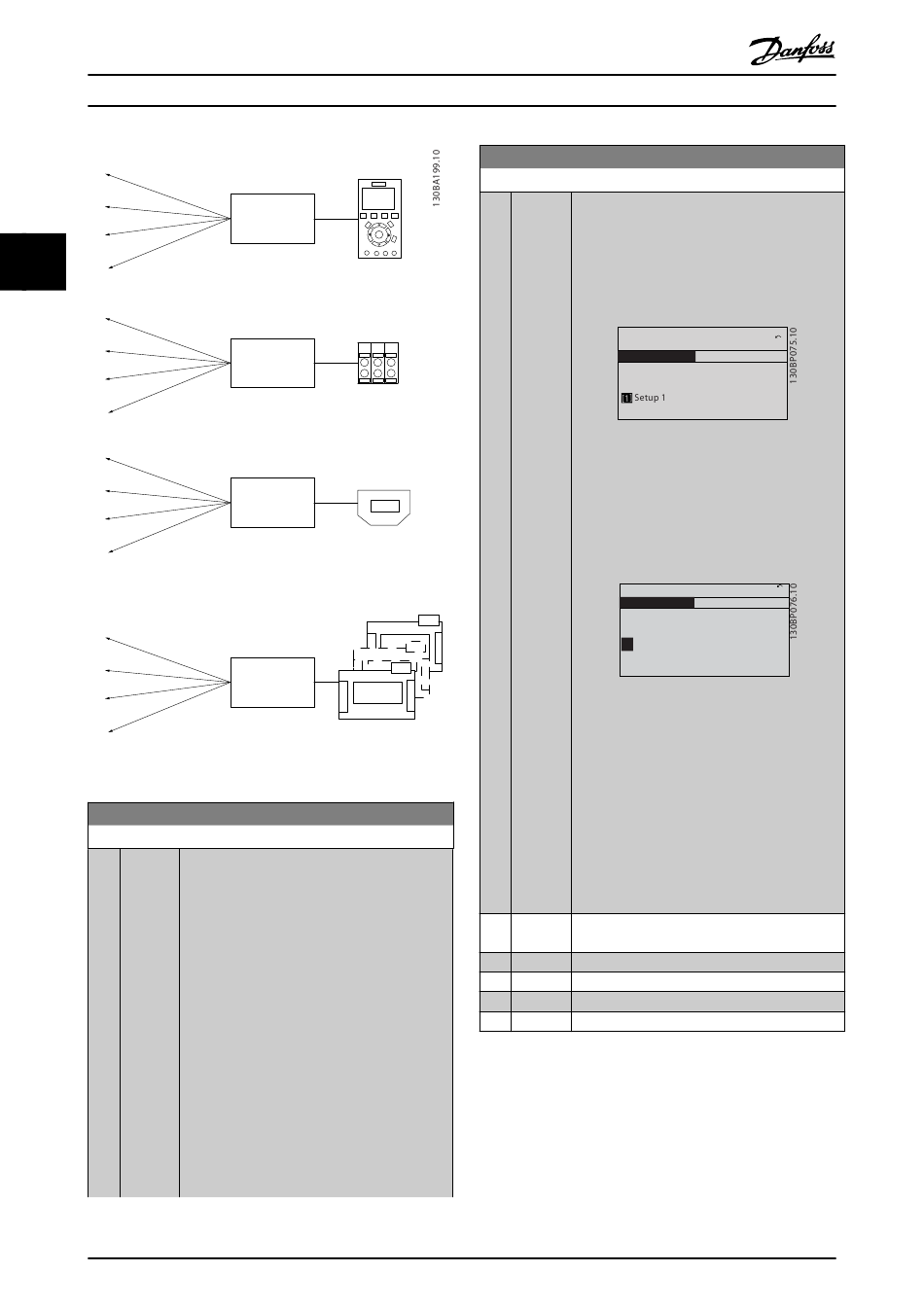

Illustration 3.1 Edit Set-up
0-12 This Set-up Linked to
Option:
26
VLT
P 0-11
P 0-11
P 0-11
PLC Fieldbus
P 0-11
Function:
To enable conflict-free changes from one set-up
to another during operation, link set-ups
containing parameters which are not changeable
during operation. The link ensures synchronising
of the 'not changeable during operation'
parameter values when moving from one set-up
to another during operation. 'Not changeable
during operation' parameters can be identified
by the label FALSE in the parameter lists in
4 Parameter Lists.
0-12 This Set-up Linked to is used by Multi set-up
in 0-10 Active Set-up. Multi set-up is used to
move from one set-up to another during
operation (i.e. while the motor is running).
Example:
Use Multi set-up to shift from Set-up 1 to Set-up
2 whilst the motor is running. Programme in Set-
up 1 first, then ensure that Set-up 1 and Set-up
®
AutomationDrive FC 301/302 Programming Guide
0-12 This Set-up Linked to
Option:
[0] Not
*
linked
[1] Set-up 1
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4
MG33MH02 - Rev. 2013-09-30
Function:
2 are synchronised (or 'linked'). Synchronisation
can be performed in 2 ways:
1. Change the edit set-up to [2] Set-up 2 in
0-11 Edit Set-up and set 0-12 This Set-up Linked to
to [1] Set-up 1. This starts the linking (synchro-
nising) process.
0 RPM 0.00A
Set-up Handling
0-12 This Set-up Linked to
Illustration 3.2 Set-up 1
OR
2. While still in Set-up 1, copy Set-up 1 to Set-up
2. Then set 0-12 This Set-up Linked to to [2] Set-
up 2. This starts the linking process.
0 RPM 0.00A
Set-up Handling
0-12 This Set-up Linked to
[2] Setup 2
Illustration 3.3 Set-up 2
After the link is complete, 0-13 Readout: Linked
Set-ups reads {1,2} to indicate that all 'not
changeable during operation' parameters are
now the same in Set-up 1 and Set-up 2. If there
are changes to a 'not changeable during
operation' parameter, e.g. 1-30 Stator Resistance
(Rs), in Set-up 2, they are also changed automat-
ically in Set-up 1. A switch between Set-up 1
and Set-up 2 during operation is now possible.
