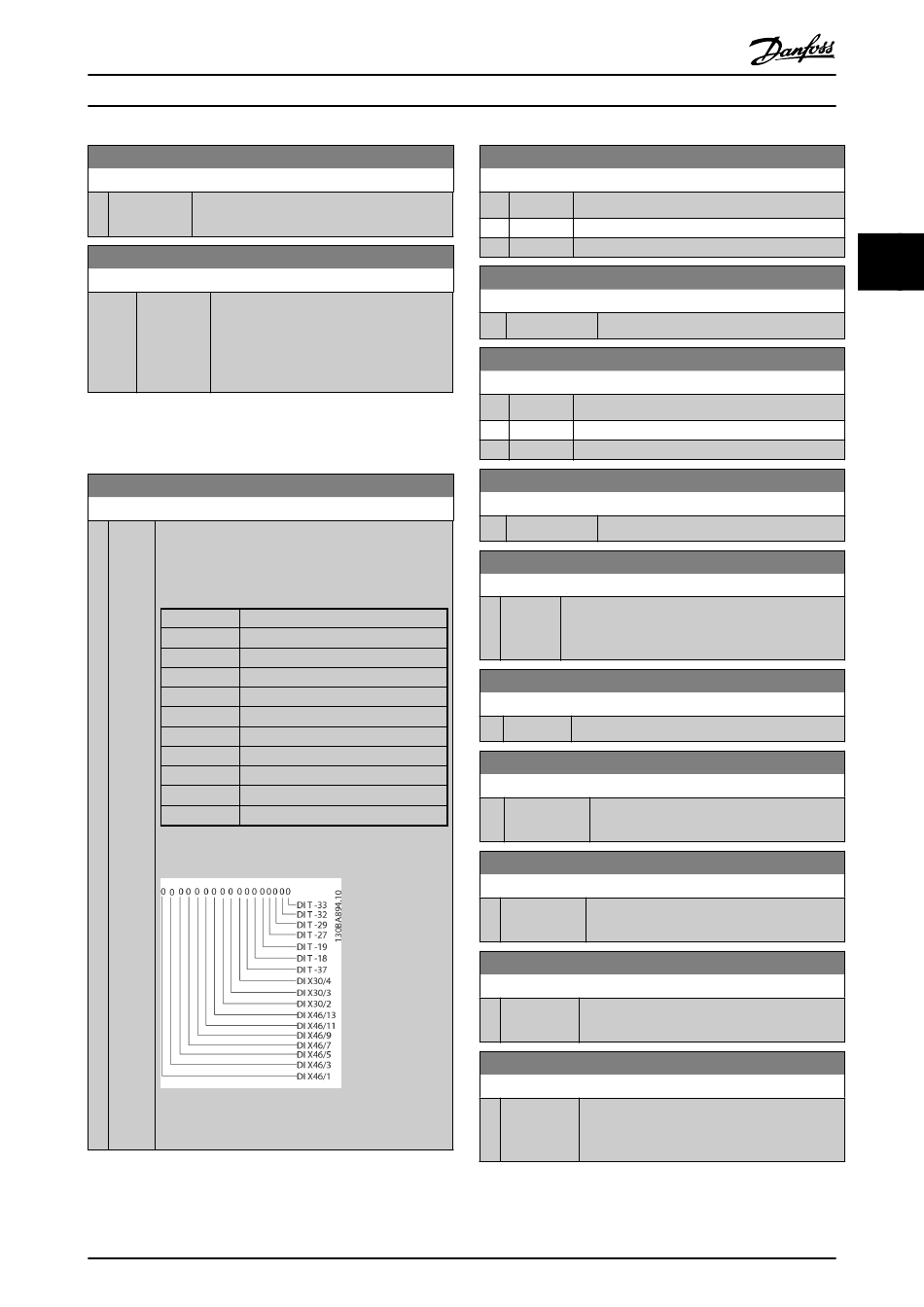

Parameter Descriptions
16-53 Digi Pot Reference
Range: Function:
0 [-200 - 200 ] View the contribution of the Digital Potenti-
*
ometer to the actual reference.
16-57 Feedback [RPM]
Range: Function:
0 RPM [-30000 - Read-out parameter where the actual
*
30000 RPM] motor RPM from the feed-back source can
be read in both closed loop and open
loop. The feed-back source is selected by
7-00 Speed PID Feedback Source.
3.17.6 16-6* Inputs and Outputs
16-60 Digital Input
Range: Function:
0 [0 - View the signal states from the active digital inputs.
1023 ] Example: Input 18 corresponds to bit no. 5, '0' = no
*
signal, '1' = connected signal. Bit 6 works in the
opposite way, on = '0', off = '1' (safe stop input).
Bit 0 Digital input term. 33
Bit 1 Digital input term. 32
Bit 2 Digital input term. 29
Bit 3 Digital input term. 27
Bit 4 Digital input term. 19
Bit 5 Digital input term. 18
Bit 6 Digital input term. 37
Bit 7 Digital input GP I/O term. X30/4
Bit 8 Digital input GP I/O term. X30/3
Bit 9 Digital input GP I/O term. X30/2
Bit 10-63 Reserved for future terminals
Table 3.29 Active Digital Inputs
Illustration 3.60 Relay Settings
®
VLT AutomationDrive FC 301/302 Programming Guide
16-61 Terminal 53 Switch Setting
Option:
[0] Current
[1] Voltage
16-62 Analog Input 53
Range:
0 [-20 - 20 ]
*
16-63 Terminal 54 Switch Setting
Option:
[0] Current
[1] Voltage
16-64 Analog Input 54
Range:
0 [-20 - 20 ]
*
16-65 Analog Output 42 [mA]
Range:
0 [0 - 30 ] View the actual value at output 42 in mA. The
*
16-66 Digital Output [bin]
Range:
0 [0 - 15 ]
*
16-67 Pulse Input #29 [Hz]
Range:
0 [0 - 130000 ] View the actual frequency rate on terminal
*
16-68 Freq. Input #33 [Hz]
Range:
0 [0 - 130000 ] View the actual value of the frequency
*
16-69 Pulse Output #27 [Hz]
Range:
0 [0 - 40000 ] View the actual value of pulses applied to
*
16-70 Pulse Output #29 [Hz]
Range:
0 [0 - 40000 ] View the actual value of pulses at terminal 29
*
MG33MH02 - Rev. 2013-09-30
Function:
View the setting of input terminal 53.
Function:
View the actual value at input 53.
Function:
View the setting of input terminal 54.
Function:
View the actual value at input 54.
Function:
value shown reflects the selection in 6-50 Terminal
42 Output.
Function:
View the binary value of all digital outputs.
Function:
29.
Function:
applied at terminal 33 as an impulse input.
Function:
terminal 27 in digital output mode.
Function:
in digital output mode.
This parameter is available for FC 302 only.
