Parameter Descriptions

3.14 Parameters: 13-** Smart Logic Control

3.14.1 Prog. Features
Smart Logic Control (SLC) is essentially a sequence of user
defined actions (see 13-52 SL Controller Action [x]) executed
by the SLC when the associated user defined event (see
13-51 SL Controller Event [x]) is evaluated as TRUE by the
SLC.
The condition for an event can be a particular status or
that the output from a Logic Rule or a Comparator
Operand becomes TRUE. That will lead to an associated
Action as illustrated:

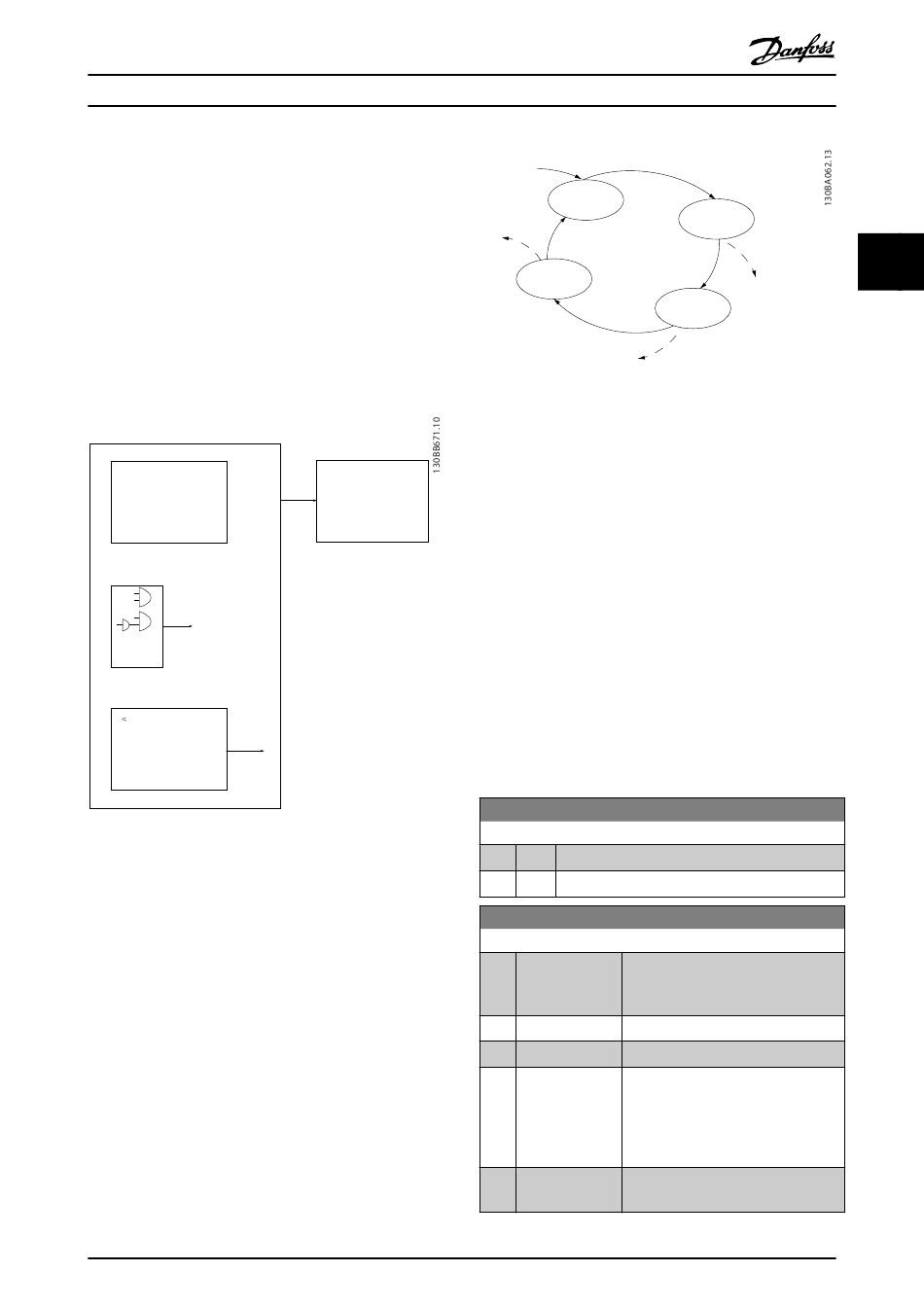

Par. 13-51
SL Controller Event
Running
Warning
Torque limit
Digital inpute X 30/2
. . .
Par. 13-43
Logic Rule Operator 2
. . .
. . .
Par. 13-43
Comparator Operator
=
TRUE longer than..
. . .
. . .
Illustration 3.48
Events and actions are each numbered and linked together
in pairs (states). This means that when event [0] is fulfilled
(attains the value TRUE), action [0] is executed. After this,
the conditions of event [1] will be evaluated and if
evaluated TRUE, action [1] will be executed and so on.
Only one event will be evaluated at any time. If an event is
evaluated as FALSE, nothing happens (in the SLC) during
the current scan interval and no other events will be
evaluated. This means that when the SLC starts, it
evaluates event [0] (and only event [0]) each scan interval.
Only when event [0] is evaluated TRUE, will the SLC
execute action [0] and start evaluating event [1]. It is
possible to programme from 1 to 20 events and actions.
When the last event / action has been executed, the
sequence starts over again from event [0] / action [0]. The
illustration shows an example with three event / actions:
®
VLT AutomationDrive Programmming Guide
Illustration 3.49
Par. 13-51
SL Controller Action Starting and stopping the SLC:
Starting and stopping the SLC can be done by
selecting .On [1]. or .Off [0]. in 13-00 SL Controller Mode.
Coast
Start timer The SLC always starts in state 0 (where it evaluates event
Set Do X low
[0]). The SLC starts when the Start Event (defined in
Select set-up 2
13-01 Start Event) is evaluated as TRUE (provided that On
. . .
[1] is selected in 13-00 SL Controller Mode). The SLC stops
when the Stop Event (13-02 Stop Event) is TRUE. 13-03 Reset
SLC resets all SLC parameters and start programming from
scratch.
SLC is only active in AUTO mode, not Hand On mode
3.14.2 13-0* SLC Settings
Use the SLC settings to activate, deactivate and reset the
Smart Logic Control sequence. The logic functions and
comtors are always running in the background, which
opens for sete control of digital inputs and outputs.
13-00 SL Controller Mode
Option:
[0]
[1]
13-01 Start Event
Option:
[0]
[1]
[2]
[3]
[4]
®
MG33ME02 - VLT is a registered Danfoss trademark
Start
event P13-01
State 1
Event 1/
Action 1
Stop
event P13-02
State 4
Event 4/
Action 4
Stop
event P13-02
Function:
Off Disables the Smart Logic Controller.
On Enables the Smart Logic Controller.
Function:
False Select the boolean (TRUE or FALSE)
*
input to activate Smart Logic Control.
[0] False enters the fixed value - FALSE
True [1] True enters the fixed value - TRUE.
Running [2] Running The motor is running.
In range [3] In range The motor is running
within the programmed current and
speed ranges set in 4-50 Warning
Current Low to 4-53 Warning Speed
High.
On reference [4] On reference The motor is running
on reference.
State 2
Event 2/
Action 2
Stop
event P13-02
State 3
Event 3/
Action 3
