3.14 Parameters: 13-** Smart Logic Control

3.14.1 Prog. Features
Smart Logic Control (SLC) is essentially a sequence of user
3 3
defined actions (see 13-52 SL Controller Action [x]) executed
by the SLC when the associated user defined event (see
13-51 SL Controller Event [x]) is evaluated as TRUE by the
SLC.
The condition for an event can be a particular status or
that the output from a Logic Rule or a Comparator
Operand becomes TRUE. That will lead to an associated
Action as illustrated:
Par. 13-51
SL Controller Event
Running
Warning
Torque limit
Digital inpute X 30/2
. . .
Par. 13-43
Logic Rule Operator 2
. . .
. . .
Par. 13-43
Comparator Operator
=
TRUE longer than..
. . .
. . .

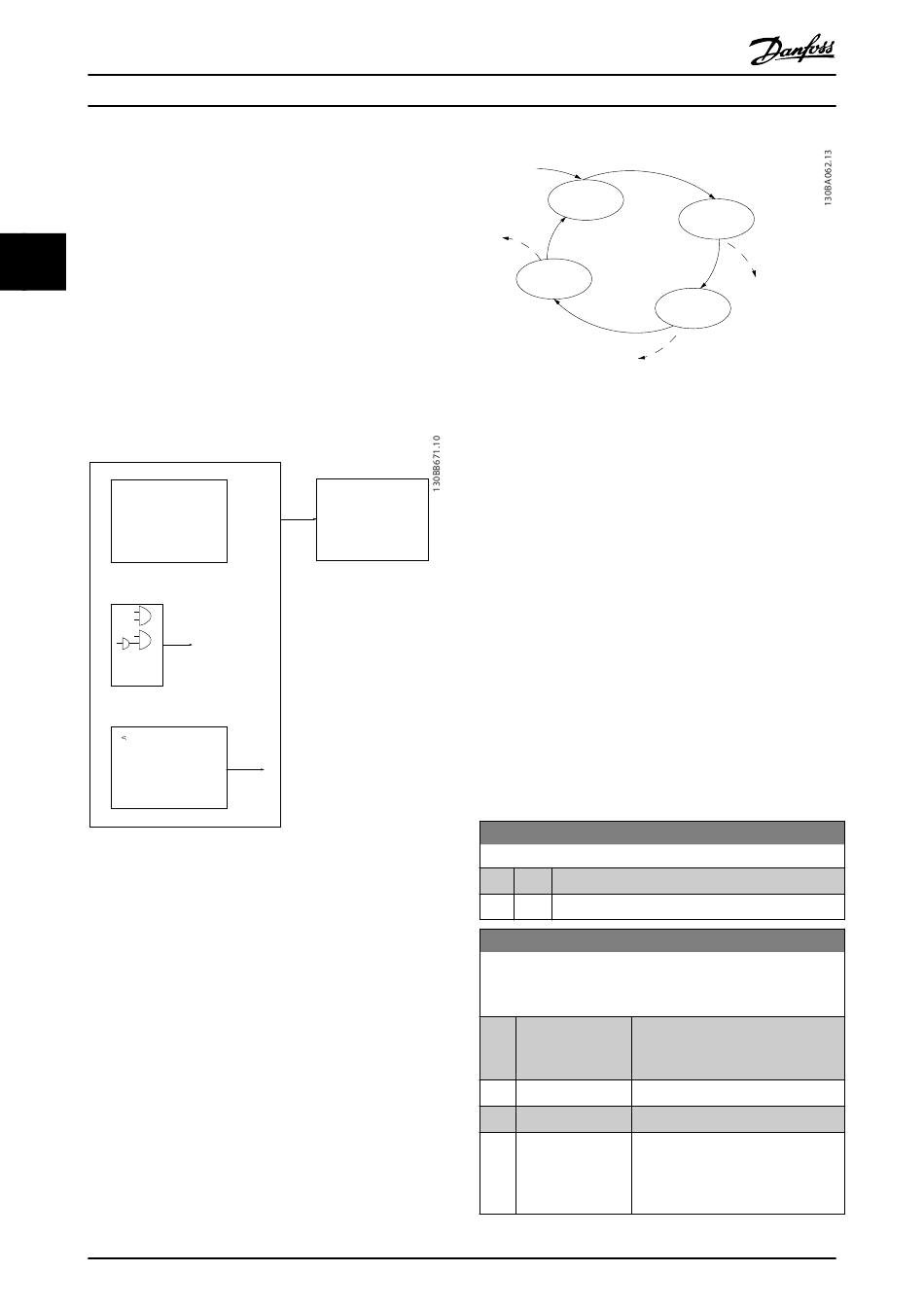

Illustration 3.48 Smart Logic Control (SLC)
Events and actions are each numbered and linked together
in pairs (states). This means that when event [0] is fulfilled
(attains the value TRUE), action [0] is executed. After this,
the conditions of event [1] will be evaluated and if
evaluated TRUE, action [1] will be executed and so on.
Only one event will be evaluated at any time. If an event is
evaluated as FALSE, nothing happens (in the SLC) during
the current scan interval and no other events will be
evaluated. This means that when the SLC starts, it
evaluates event [0] (and only event [0]) each scan interval.
Only when event [0] is evaluated TRUE, will the SLC
execute action [0] and start evaluating event [1]. It is
possible to programme from 1 to 20 events and actions.
When the last event/action has been executed, the
sequence starts over again from event [0]/action [0]. The
illustration shows an example with three event/actions:
120
®
VLT AutomationDrive Programming Guide
Illustration 3.49 Events and Actions
Starting and stopping the SLC:
Par. 13-51
Starting and stopping the SLC can be done by
SL Controller Action
selecting .On [1]. or .Off [0]. in 13-00 SL Controller Mode.
The SLC always starts in state 0 (where it evaluates event
Coast
[0]). The SLC starts when the Start Event (defined in
Start timer
Set Do X low
13-01 Start Event) is evaluated as TRUE (provided that On
Select set-up 2
. . . [1] is selected in 13-00 SL Controller Mode). The SLC stops
when the Stop Event (13-02 Stop Event) is TRUE. 13-03 Reset
SLC resets all SLC parameters and start programming from
scratch.
NOTE
SLC is only active in AUTO mode, not Hand On mode
3.14.2 13-0* SLC Settings
Use the SLC settings to activate, deactivate and reset the
Smart Logic Control sequence. The logic functions and
comtors are always running in the background, which
opens for sete control of digital inputs and outputs.
13-00 SL Controller Mode
Option:
[0]
[1]
13-01 Start Event
Select the boolean (TRUE or FALSE) input to activate Smart Logic
Control.
Option:
[0]
[1]
[2]
[3]
®
MG33MG02 - VLT is a registered Danfoss trademark
Start
event P13-01
State 1
Event 1/
Action 1
Stop
event P13-02
State 4
Event 4/
Action 4
Stop
event P13-02
Function:
Off Disables the -**Smart Logic Controller.
On Enables the Smart Logic Controller.
Function:
False Select the boolean (TRUE or FALSE)
input to activate Smart Logic Control.
Enters the fixed value - FALSE
True Enters the fixed value - TRUE.
Running The motor is running.
In range The motor is running within the
programmed current and speed
ranges set in 4-50 Warning Current
Low to 4-53 Warning Speed High.
State 2
Event 2/
Action 2
Stop
event P13-02
State 3
Event 3/
Action 3
