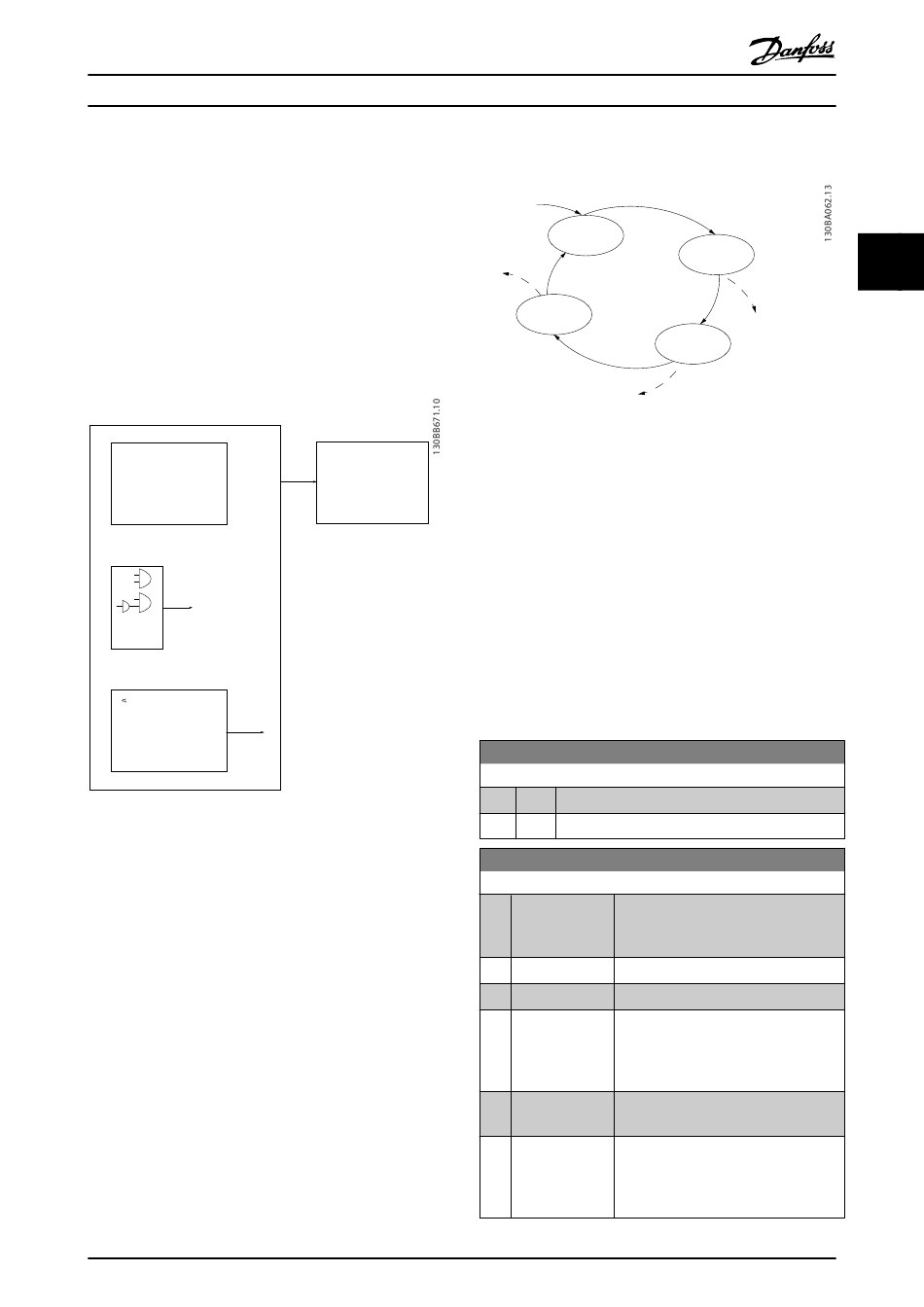

Parameter Descriptions

3.14 Parameters: 13-** Smart Logic Control

3.14.1 Prog. Features
Smart Logic Control (SLC) is essentially a sequence of user
defined actions (see 13-52 SL Controller Action [x]) executed
by the SLC when the associated user defined event (see
13-51 SL Controller Event [x]) is evaluated as TRUE by the SLC.
The condition for an event can be a particular status or that
the output from a Logic Rule or a Comparator Operand
becomes TRUE. That will lead to an associated Action as
illustrated:
Par. 13-51
SL Controller Event
Running
Warning
Torque limit
Digital inpute X 30/2
. . .
Par. 13-43
Logic Rule Operator 2
. . .
. . .
Par. 13-43
Comparator Operator
=
TRUE longer than..
. . .
. . .
Events and actions are each numbered and linked together
in pairs (states). This means that when event [0] is fulfilled
(attains the value TRUE), action [0] is executed. After this, the
conditions of event [1] will be evaluated and if evaluated
TRUE, action [1] will be executed and so on. Only one event
will be evaluated at any time. If an event is evaluated as
FALSE, nothing happens (in the SLC) during the current scan
interval and no other events will be evaluated. This means
that when the SLC starts, it evaluates event [0] (and only
event [0]) each scan interval. Only when event [0] is evaluated
TRUE, will the SLC execute action [0] and start evaluating
event [1]. It is possible to programme from 1 to 20 events and
actions.
When the last event / action has been executed, the
sequence starts over again from event [0] / action [0]. The
illustration shows an example with three event / actions:
FC 300 Programming Guide
Par. 13-51
SL Controller Action
Starting and stopping the SLC:
Starting and stopping the SLC can be done by selecting .On
Coast
Start timer
[1]. or .Off [0]. in 13-00 SL Controller Mode. The SLC always
Set Do X low
starts in state 0 (where it evaluates event [0]). The SLC starts
Select set-up 2
. . .
when the Start Event (defined in 13-01 Start Event) is
evaluated as TRUE (provided that On [1] is selected in
13-00 SL Controller Mode). The SLC stops when the Stop Event
(13-02 Stop Event) is TRUE. 13-03 Reset SLC resets all SLC
parameters and start programming from scratch.
3.14.2 13-0* SLC Settings
Use the SLC settings to activate, deactivate and reset the
Smart Logic Control sequence. The logic functions and
comparators are always running in the background, which
opens for separate control of digital inputs and outputs.
[0]
[1]
[0]
[1]
[2]
[3]
[4]
[5]
®
MG.33.MB.02 - VLT
is a registered Danfoss trademark
Start
event P13-01
State 1
Event 1/
Action 1
Stop
event P13-02
State 4
Event 4/
Action 4
13-00 SL Controller Mode
Option:
Function:
Off
Disables the Smart Logic Controller.
On
Enables the Smart Logic Controller.
13-01 Start Event
Option:
Function:
False
Select the boolean (TRUE or FALSE) input
*
to activate Smart Logic Control.
False [0] enters the fixed value - FALSE
True
True [1] enters the fixed value - TRUE.
Running
Running [2] The motor is running.
In range
In range [3] The motor is running within
the programmed current and speed
ranges set in 4-50 Warning Current Low to
4-53 Warning Speed High.
On reference
On reference [4] The motor is running on
reference.
Torque limit
Torque limit [5] The torque limit, set in
4-16 Torque Limit Motor Mode or
4-17 Torque Limit Generator Mode, has
been exceeded.
State 2
Event 2/
Action 2
Stop
event P13-02
State 3
Event 3/
Action 3
Stop
event P13-02
125
3
3
