4 Putting into operation

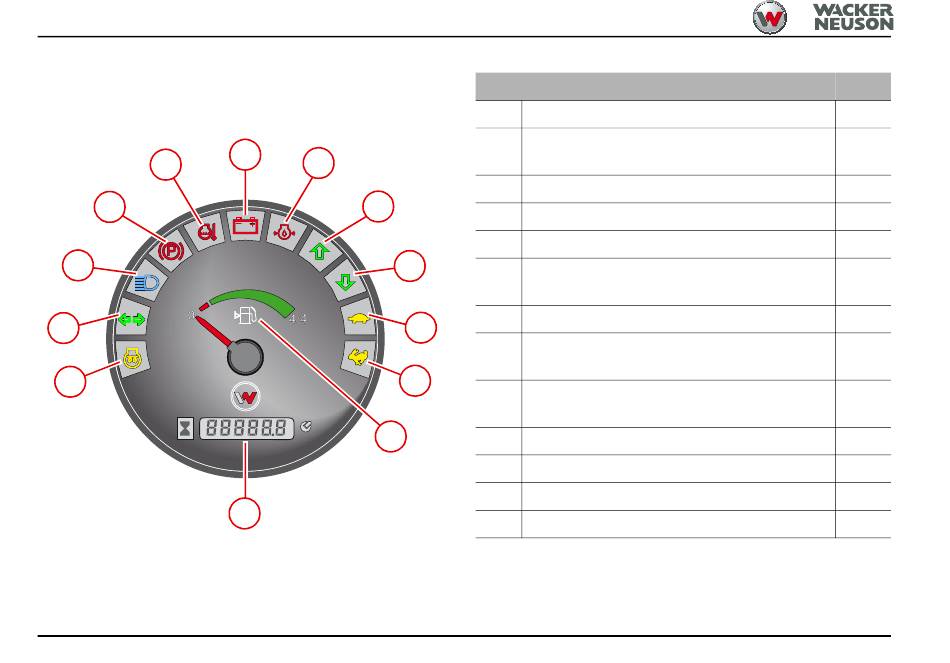

Indicating instrument
23
22
21
20
19
Fig. 33
4-20
24
25
26
27
28
29
30
31
Item Indicating instrument
Preheating indicator light (yellow)
19
Indicator light for "Direction indicators
20
(blinkers)" (green) (optional)
"High beam" indicator light (blue) (option)
21
Not assigned
22
Engine temperature warning light (red)
23
Alternator charge function warning light
24
(red)
Warning light "Engine oil pressure" (red)
25
Forward travel direction indicator light
26
(green)
Reverse travel direction indicator light
27
(green)
Crawler gear indicator light (yellow)
28
29
High speed indicator light (yellow)
Fuel gage
30
Hour meter
31
BA TH412 * 06/2017 * 4512_4-2_Bedienelemente_en.fm
Page
4-26
4-26
4-27
4-27
4-27
4-27
4-28
4-28
4-28
4-29
4-29
4-29
4-29
