5 Operation
Scraping work

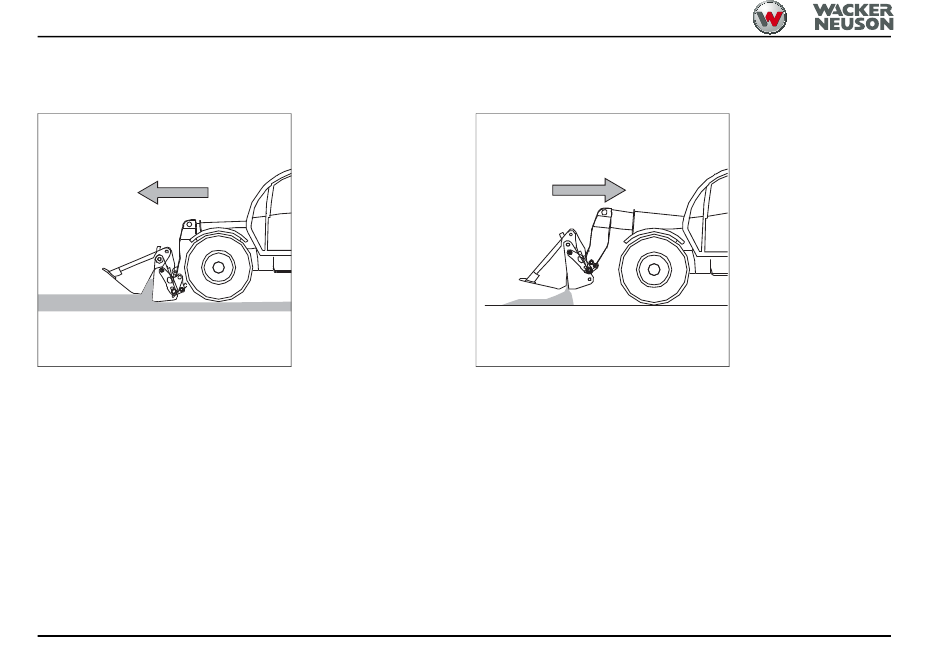

Fig. 95
1. Set a flat digging angle.
2. Fold up the front half of the bucket by about 10 to 15
cm.
3. Lower the universal bucket to the ground.
4. Set the depth of the layer you want to remove with the
lift hydraulics.
5. Pick up material by performing forward machine travel.
The material rolls into the bucket and is picked up at
the same time. This position makes it possible to strip
material down to a thickness of about 8 cm (3 in.).
5-70
Spreading material in thin layers
Fig. 96
1. Fill the universal bucket with the material to be spread.
2. Open the universal bucket according to the material
and flow rate.
3. Spread the material evenly on the surface.
BA TH412 * 06/2017 * 4512_5-11_Arbeitsbetrieb_en.fm
