Shorter seat belt adjustment
1

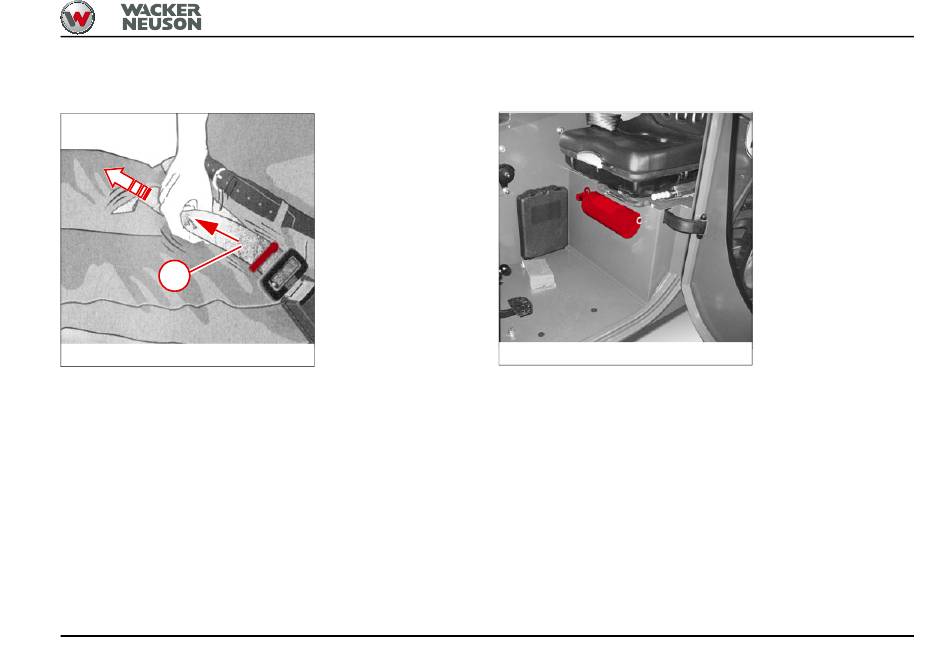

Fig. 30
•
With the seat belt fastened, pull on the free end of the
seat belt.
- Move the plastic clasp as required to secure the
excess seat belt.
➥ The seat belt is shortened to the required length.
BA TH412 * 06/2017 * 4512_4-1_Steuerstand_en.fm
Fire extinguisher
Fig. 31
The fire extinguisher is not included in the machine's
standard equipment.
Subsequent installation must be performed by an
authorized service center.
See
for the installation position of the fire
Fig. 31
extinguisher.
Operate the fire extinguisher according to the instructions
on the fire extinguisher.
Putting into operation 4
4-17
