3 Introduction

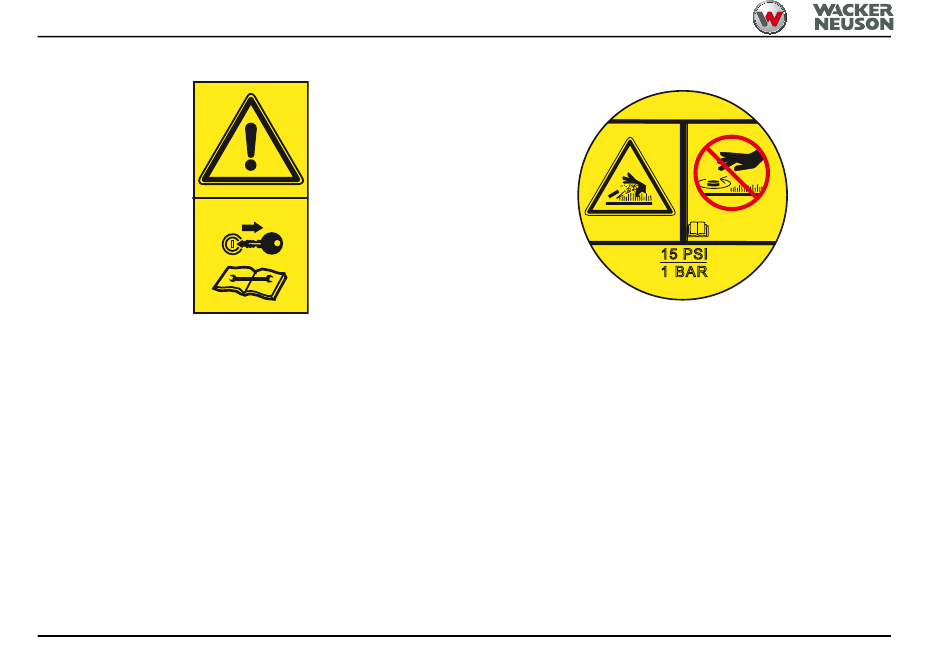

Fig. 7
Warning label W3: Remove the starting key
Caution! Remove the starting key before performing
inspection and maintenance on the machine.
•
Read the service manual before performing mainte-
nance.
•
Have repair work only performed by authorized
personnel.
Located on the engine cover.
3-22
Fig. 8
Warning label W4: Bin under pressure; Burn haz-
ard!
Caution! Do not open, radiator is hot and under pressure.
•
Open the radiator only after the coolant has cooled
down.
•
Open the cover carefully to the first stop notch to allow
the pressure to escape.
•
Wear protective gloves and clothing.
Located near the radiator expansion reservoir.
BA TH412 * 06/2017 * 4512_3-4_Beschilderung_en.fm
15 PSI
1 BAR
